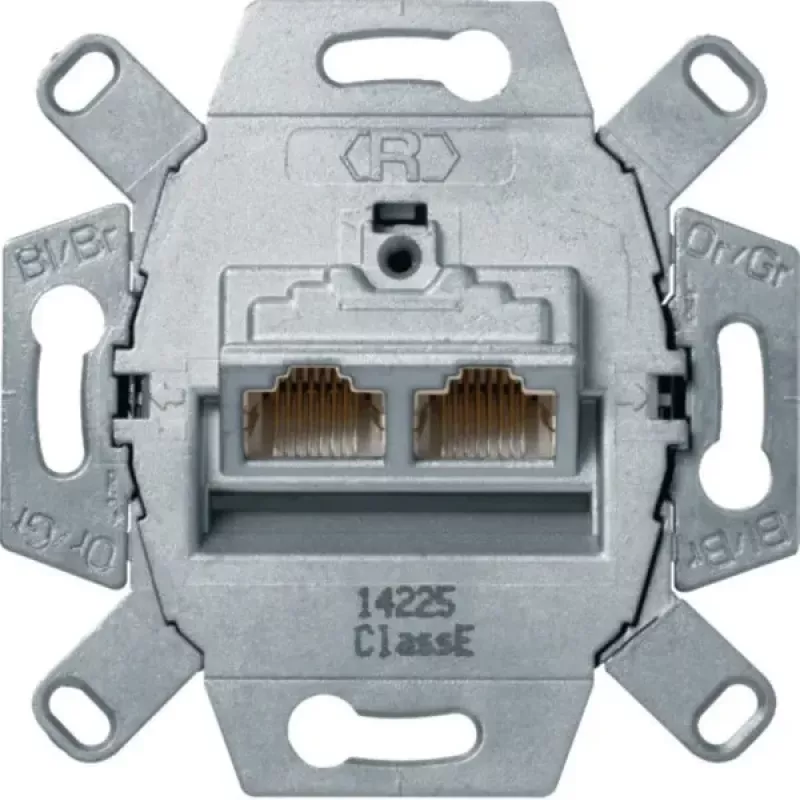

Hager WDF410866 UAE zásuvka 8/8-pólová tienená Cat.6A RJ45 dátová zásuvka

In modern office and residential cabling, a reliable high-speed data connection is essential. The Hager WDF410866 UAE socket provides a shielded Cat.6A RJ45 connection point, enabling 10 Gigabit Ethernet performance up to 500 MHz. Its die-cast metal housing ensures full shielding against electromagnetic interference, making it suitable for demanding network environments.

Who is it for

This data outlet is ideal for network installers and electricians setting up structured cabling in offices, commercial buildings, or homes where high data rates and interference protection are required. It fits into standard flush-mounted boxes and integrates with common switch ranges via a central plate.

Main features

• Cat.6A performance with data transfer rates up to 10 Gbit/s
• Fully shielded die-cast metal housing for EMI protection
• LSA-Plus IDC terminals for reliable, tool-free connection
• Supports Power over Ethernet (PoE, PoE+, 4PPoE)
• Compatible with AWG 24-22 solid conductors
• Color-coded wiring for TIA/EIA 568A/B standards

Specifications

• Connector type: RJ45
• Number of ports: 1
• Performance category: Cat.6A
• Shielding: Fully shielded
• Frequency range: Up to 500 MHz
• Mounting type: Flush-mounted
• Connection technology: LSA-Plus IDC
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Conductor compatibility: AWG 24-22 solid wires
• Material: Plastic / Die-cast metal
• Halogen-free: Yes
• Module type: Single module for central plate

Tips

For optimal performance, ensure proper grounding of the shielded housing and use shielded patch cables. The socket is designed for use with a central plate from compatible switch ranges, allowing a uniform appearance with other electrical accessories.
