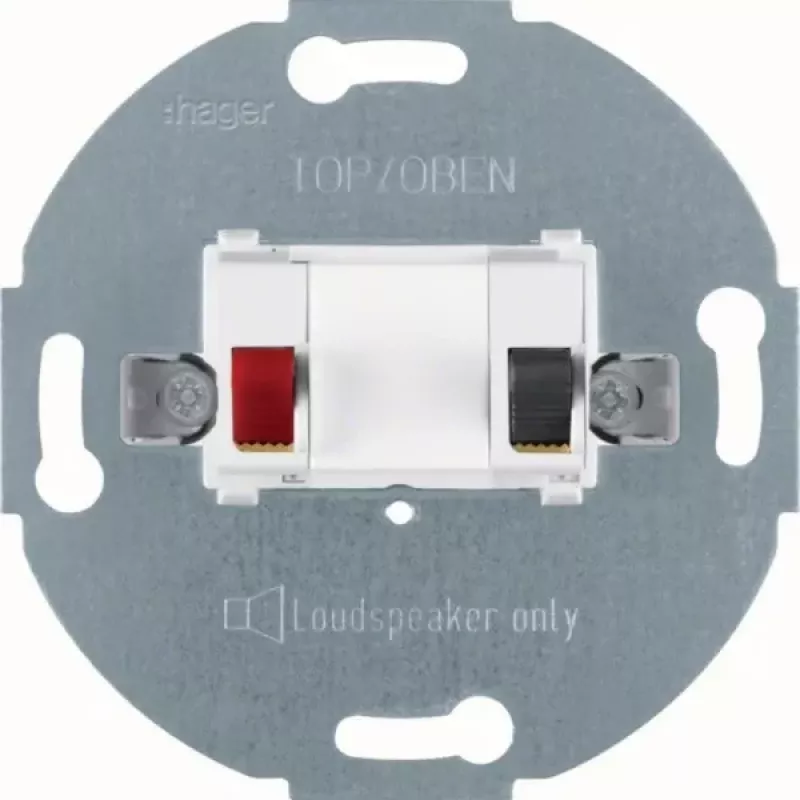

Hager WDF4800PW1 reproduktorová zásuvka, 1-násobná, polárna biela matná

Audio installations often lack a clean, dedicated connection point for loudspeakers, leaving exposed wires and an unfinished look. The Hager WDF4800PW1 loudspeaker connection socket provides a flush-mounted, 1-gang solution that integrates seamlessly into standard wall boxes, delivering a professional finish for home audio or multi-room speaker setups.

Who is it for

Electricians, AV installers, and DIY enthusiasts who need a reliable, discreet connection for loudspeaker cables in residential or commercial spaces. It suits anyone using Hager switch ranges like W1 or Kallysto, ensuring a consistent aesthetic across the installation.

Main features

• 1-gang design with central plate for a clean, flush-mounted appearance.
• Polar white (pws) colour with matt finish to match modern interiors.
• 2-pole screw terminals for secure, low-resistance connections.
• Accepts conductor cross-sections up to 2.5 mm².
• Halogen-free thermoplastic construction for improved fire safety.
• Compatible with Hager switch ranges (e.g., W1, Kallysto) for a unified look.

Specifications

• Product type: Loudspeaker connection socket
• Number of gangs: 1
• Colour: Polar white
• Finish: Matt
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Number of poles: 2
• Material: Thermoplastic
• Halogen-free: Yes
• Max. conductor cross-section: 2.5 mm²
• Installation depth: 35 mm
• Operating temperature: -5 to 40 °C
• Storage temperature: -25 to 55 °C
• Relative humidity: 5 to 95 % (non-condensing)

Tips

Pair this socket with Hager frames and inserts from the same range to achieve a uniform appearance. Ensure the mounting box has a depth of at least 35 mm for comfortable wiring.
