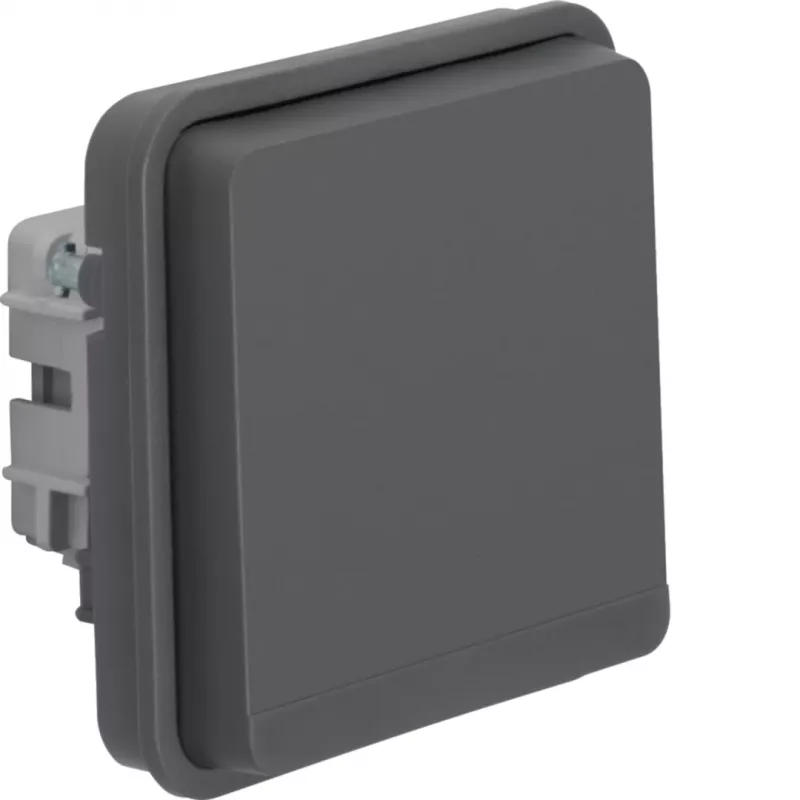

Hager WNA140 SCHUKO zásuvka s vyklápacím krytom, IP55, sivá, séria W.1

The Hager WNA140 is a high-quality SCHUKO socket outlet designed for demanding environments. Part of the W.1 series, this flush-mounted socket features a hinged lid and IP55 protection, making it ideal for damp rooms and outdoor use. With a sleek grey finish (RAL 7011), it combines functionality with a modern aesthetic.

Advantages

IP55 ingress protection ensures reliable operation in wet or dusty conditions. The integrated hinged lid provides additional safety and prevents accidental contact. Increased touch protection (child protection) offers peace of mind in family homes. Halogen-free thermoplastic construction ensures safety and durability.

Suitable for

• Damp rooms such as bathrooms, kitchens, and laundry rooms
• Outdoor areas like terraces, gardens, and balconies
• Commercial and industrial environments requiring robust socket outlets

Key specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Ingress protection: IP55
• Colour: Grey (RAL 7011)
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductors)
• Installation depth: approx. 32 mm
• Material: Thermoplastic, halogen-free
• With hinged lid: Yes
• Increased touch protection: Yes

Recommendations

For optimal performance, use with Hager W.1 series frames and accessories. Ensure proper installation by a qualified electrician. Suitable for use with rigid conductors only.
