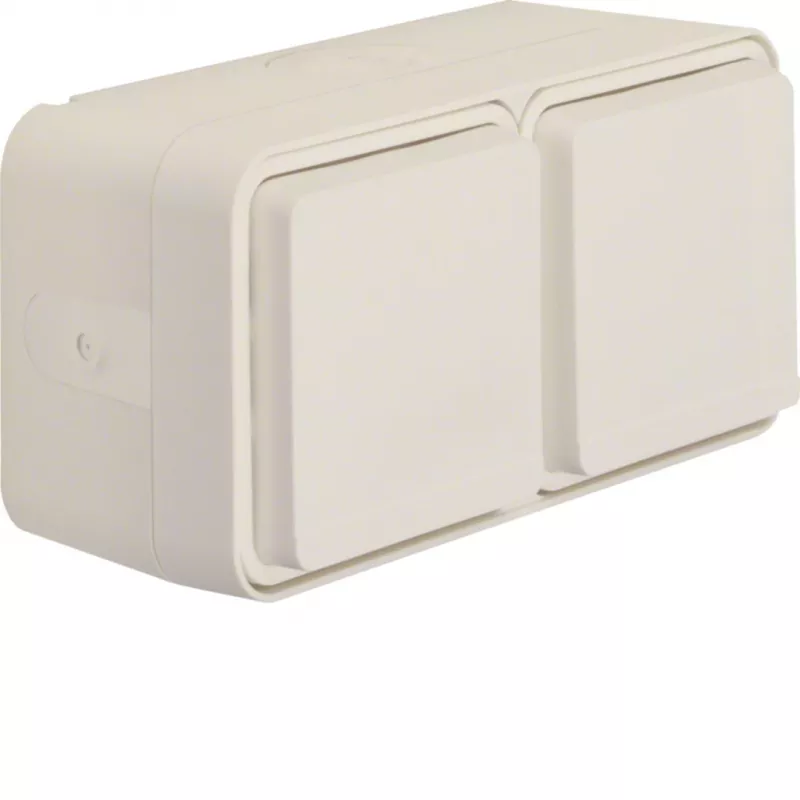

Hager WNC144B SCHUKO nástenná zásuvka 2-násobná horizontálna IP55 s vyklápacím krytom, polárna biela

The Hager WNC144B is a high-quality surface-mounted SCHUKO socket outlet designed for reliable power distribution in demanding environments. With two horizontally oriented sockets, an IP55 rating, and a hinged cover, this unit is ideal for industrial, commercial, and outdoor applications where protection against dust and water jets is essential.

Advantages

Robust thermoplastic construction ensures durability and long service life. The hinged cover protects sockets when not in use, preventing dust and moisture ingress. Screw terminals provide secure and easy wiring. Halogen-free materials enhance safety in case of fire.

Suitable for

• Industrial workshops and production areas
• Commercial kitchens and outdoor terraces
• Warehouses and logistics centers
• Garages and DIY workshops

Key specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 2
• Mounting: Surface-mounted (AP)
• Orientation: Horizontal
• IP rating: IP55
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection: Screw terminals
• Material: Thermoplastic
• Colour: Polar White
• With hinged cover: Yes
• Number of cable entries: 4
• Series: Lumina 2
• Halogen-free: Yes
• Impact resistance: IK07
• Operating temperature: -25 to +40 °C
• Terminal capacity: 1.5 - 2.5 mm²
• Glow wire test: 850 °C
• Conformity: CE

Recommendations

For optimal performance, use with appropriate cable glands and ensure proper sealing of cable entries to maintain IP55 protection. Suitable for indoor and outdoor use where protection against water jets is required.
