HAGER WNT302 KNX tlačidlový senzor, 1-násobný, 2 spínacie body, pod omietku, polárna biely

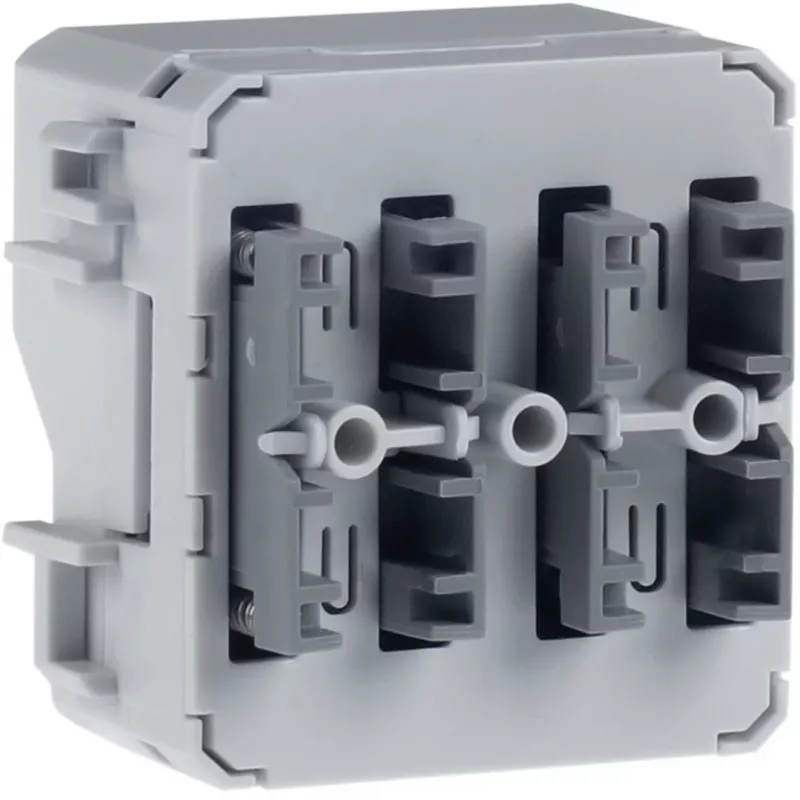

For KNX building automation projects, the HAGER WNT302 push-button sensor provides two switching points in a single-gang flush-mounted design. It integrates a bus coupler and is part of the W.1 series, requiring a compatible frame and rocker (sold separately).

Key specifications

• Bus system: KNX
• Product type: Push-button sensor
• Number of gangs: 1
• Number of switching points: 2
• Mounting type: Flush-mounted (requires frame)
• Integrated bus coupler: Yes
• Operating voltage: Via KNX bus (21-30 V DC)
• Protection class: IP20
• Operating temperature: 0 to 45 °C
• Material: Thermoplastic, halogen-free
• Colour: Polar white
• Configurable functions: Switching, dimming, blinds, value transmitter, scene recall
• LED status indicator: Yes (configurable)
• Connection type: KNX bus terminal

Why choose it

The WNT302 combines two control points in a compact single-gang footprint, saving space in flush-mounted installations. Its integrated bus coupler simplifies wiring, and the configurable LED provides clear status feedback.

Ideal use cases

• KNX lighting control in residential and commercial buildings
• Scene recall for meeting rooms or hotel rooms
• Blind or shutter control from a single push-button

Good to know

This sensor requires a Hager W.1 series frame and rocker to complete the installation. It is powered directly from the KNX bus, eliminating the need for an additional power supply.
