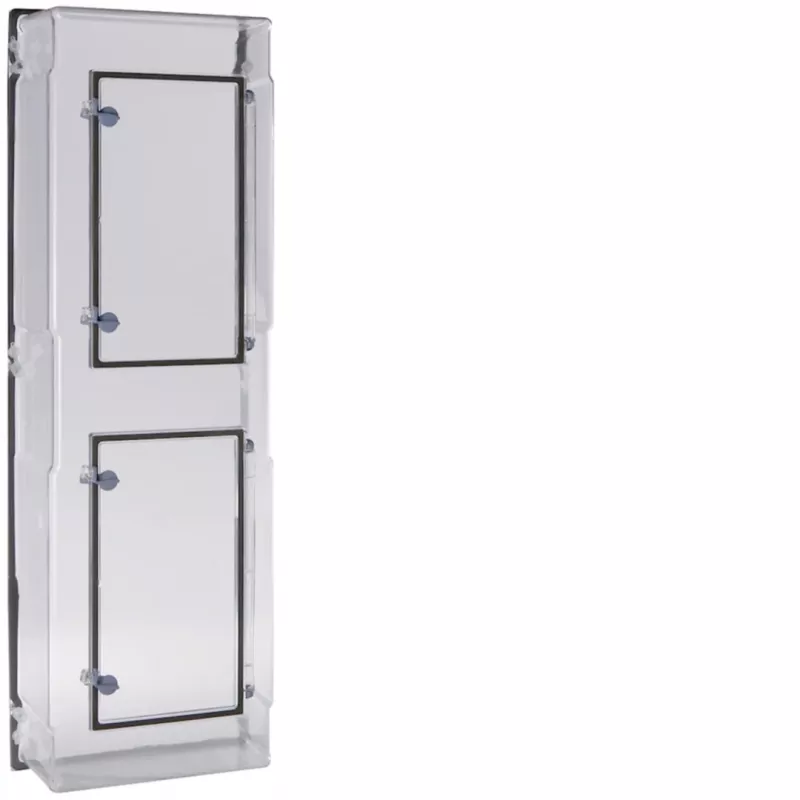

Hager ZAY750AT kryt meracieho poľa IP54 transparentný 750mm s dvierkami

IP54-rated meter field cover with a transparent hinged polycarbonate door, designed for 750mm enclosures.

Overview

The Hager ZAY750AT is a meter field cover engineered for metering panels and distribution boards. Its transparent door allows visual inspection of installed components without opening the enclosure, while the IP54 protection safeguards against dust and water splashes.

What stands out

• Transparent polycarbonate door for easy meter reading
• IP54 protection against dust and splashing water
• Prepared for profile half-cylinder lock (lock not included)
• Halogen-free and UV-resistant materials

Technical details

• Height: 750 mm
• Width: 250 mm
• Depth: 130 mm
• Material: Polycarbonate door, plastic frame
• Colour: Light grey RAL 7035 / transparent
• Impact resistance: IK07
• Glow-wire test: 650 °C
• Standards: DIN VDE 0603-1, DIN 43870-1

Our verdict

A robust and transparent solution for protecting metering equipment, offering clear visibility and reliable protection in demanding environments.
