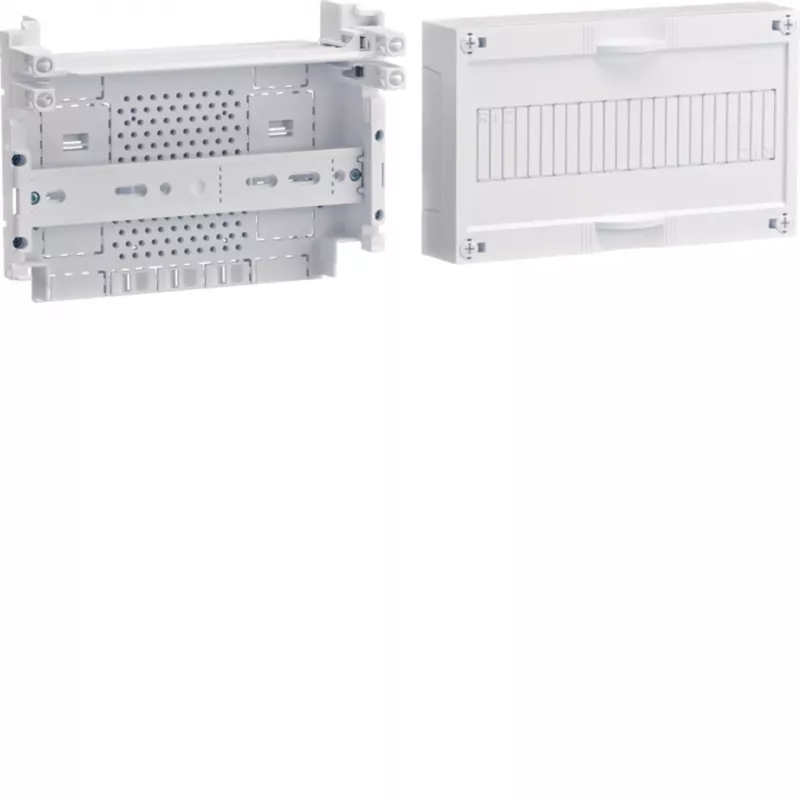

Hager ZY150RFZ universZ montážne pole 150x250mm s lištou DIN

The Hager ZY150RFZ is a high-quality mounting field from the universZ series, designed for use in meter cabinets and distribution boards. It provides a robust platform for mounting auxiliary devices such as ripple control receivers and control units. The field comes pre-equipped with a standard 35mm DIN rail (top hat rail) for easy installation of modular components.

Advantages

This mounting field offers a reliable and secure mounting solution for electrical installations. The galvanized steel construction ensures durability and corrosion resistance. The integrated DIN rail simplifies the installation of DIN-rail mounted devices, saving time and effort. Its compact size (150x250mm) makes it ideal for space-constrained applications.

Suitable for

• Meter cabinets and distribution boards
• Mounting ripple control receivers and control devices
• Industrial and residential electrical installations

Key specifications

• Product Type: Mounting Field / Mounting Plate
• Series: Hager universZ
• Field Type: RfZ (Ripple Control Receiver Field)
• Dimensions: 150 x 250 mm
• Material: Galvanized Steel
• Color: Metallic / Galvanized
• Included Components: 1x DIN Rail (35mm Top Hat Rail)
• Mounting: Screw Mounting
• Standards: DIN VDE (implied)

Recommendations

For optimal performance, use this mounting field with Hager universZ compatible components. Ensure proper grounding and follow local electrical codes during installation.
