HAGER ZY3N2SLS súprava zariadení pre APZ/RfZ s 16 A SLS, NAR

This pre-wired equipment package integrates a 25 kA selective main circuit breaker into the network connection space of Hager meter cabinets, providing overload and short-circuit protection with selective tripping.

Overview

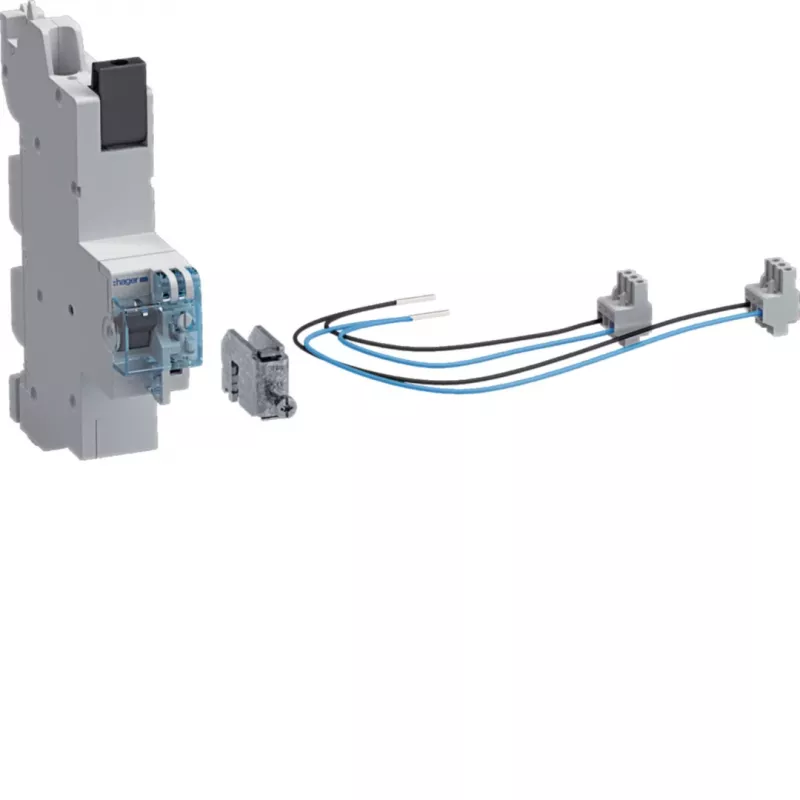

The HAGER ZY3N2SLS is a ready-to-install assembly for the APZ (meter connection space) and RfZ (space for additional applications) within NAR (network connection space) of meter cabinets. It centers on a 3-pole selective main circuit breaker (SLS) rated at 16 A, with screw terminals accepting up to 50 mm² incoming and 25 mm² outgoing conductors. The unit operates at 230/400 V AC and is designed for DIN rail mounting in Hager Zählerschränke.

What stands out

• Selective main circuit breaker with 25 kA breaking capacity
• Pre-assembled and wired for fast installation
• Compliant with DIN VDE 0603-1 and TAB 2007/2012
• Internal components protected to IP2XC

Technical details

• Rated current: 16 A
• Number of poles: 3
• Rated operating voltage: 230/400 V AC
• Short-circuit breaking capacity: 25 kA
• Max. conductor cross-section incoming: 50 mm²
• Max. conductor cross-section outgoing: 25 mm²
• Connection type: screw terminals
• Mounting: DIN rail

Our verdict

A factory-wired SLS package that saves time and ensures compliant protection in Hager meter cabinets.
