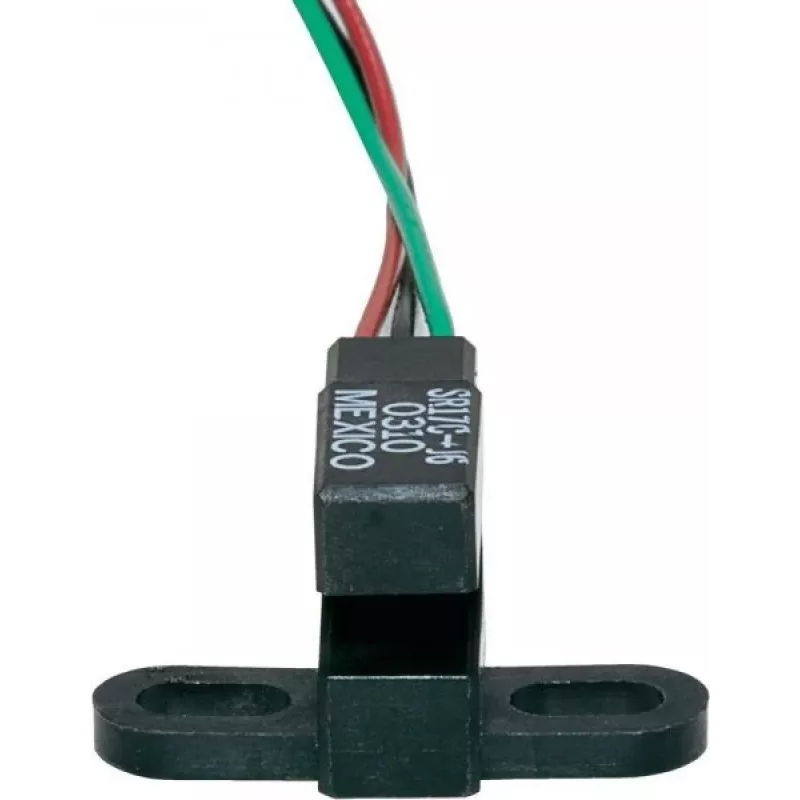

Hallov senzor Honeywell SR17C-J6, napájanie 3,8–30 V DC, kábel s otvoreným koncom

Honeywell SR17C-J6 is a Hall-effect sensor designed for reliable magnetic field detection and position sensing in industrial and OEM applications. The device accepts a wide DC supply range from 3.8 to 30 V and is supplied with an open-end cable for direct wiring into control systems. Its compact form and electrical characteristics make it suitable for integration into machinery where contactless switching or analog detection of magnetic targets is required.

Advantages

The sensor provides stable Hall-effect switching across a broad supply-voltage range, enabling flexible use with common industrial power sources. An open-end cable simplifies installation and wiring without the need for an additional connector. As a solid-state device, it offers long service life and resistance to mechanical wear compared with mechanical switches. The compact design and standardized sensing behavior help with predictable performance in position-sensing tasks.

Suitable for

• Position detection of moving parts in machinery
• Proximity sensing in automation and conveyor systems
• Magnetic switch replacement in control panels
• OEM integration where direct cable wiring is required

Key specifications

• Operating voltage: 3.8–30 V DC
• Sensor type: Hall-effect (magnetic field detection)
• Cable: open-end cable for direct wiring
• Output: designed for switch or analog detection (consult system requirements for interfacing)
• Mounting and form factor: compact sensor body suitable for panel or bracket mounting
• Operating principle: contactless sensing for reduced mechanical wear

How to use

Mount the sensor in a stable position where the magnetic target passes within the device’s sensing range, ensuring correct orientation relative to the magnet polarity as required by the application. Connect the open-end cable conductors to the system power and signal inputs following the device wiring diagram and the controller’s input specifications. Verify the supply voltage is within the 3.8–30 V DC range before powering. Test switching or analog response with the intended magnetic target and adjust mounting distance to achieve the desired activation point.

Recommendations

For reliable operation, avoid exposure to sources of strong stray magnetic fields and secure the cable to prevent mechanical stress at the sensor exit. Use appropriate cable sealing or conduit if the installation environment is exposed to moisture, dust, or oils. When integrating into safety-related circuits, follow applicable safety standards and add redundancy as required.
