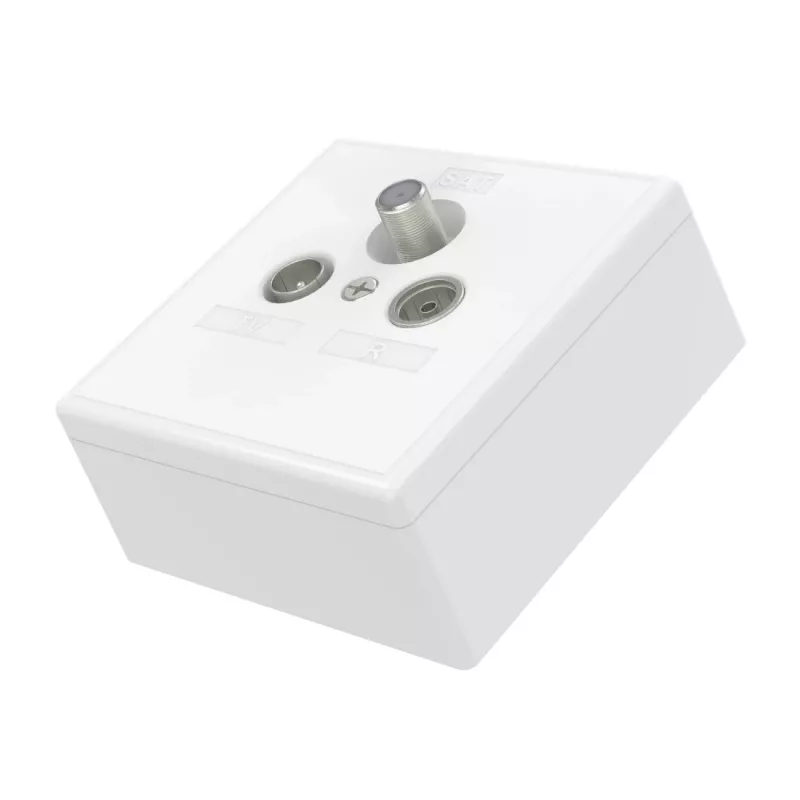

Hama 00205288 anténna zásuvka SAT + TV + Radio biela

The Hama 00205288 socket outlet combines SAT, TV and radio connections in a single white wall plate designed for residential and commercial audiovisual installations. It supports reception of DVB-S, DVB-C and DVB-T signals and provides a bidirectional multimedia connection with a feedback channel for Internet and telephone services over satellite or broadband cable networks. The SAT connector is diode-decoupled and the extended F-socket simplifies installation; the socket is compatible with German standard cover plates (for example Bush + Jäger).

Advantages

The outlet supports bidirectional applications thanks to a 5–65 MHz feedback channel, allowing Internet and telephony signals to be received at the TV socket. It is multimedia-compatible for SAT/cable networks, provides diode-decoupled SAT connection to prevent interference, and includes an installation-friendly extended F-socket. Its white finish matches standard cover plates and it supports HDTV reception.

Suitable for

Key specifications

How to use

Mount the socket outlet into a compatible electrical box and attach a matching German-standard cover plate. Connect the incoming satellite or cable feed to the F-socket and connect TV and radio devices to their respective outputs. If using bidirectional services, ensure the network is configured to use the 5–65 MHz return channel so Internet and telephone signals are available at the TV socket. Observe standard safety and installation regulations or use a qualified installer.

Recommendations

Use suitable coaxial cables and maintain proper grounding. For bidirectional Internet/telephony functions, verify with your service provider whether any additional equipment (e.g., modem or multiswitch) is required and confirm network compatibility with the 5–65 MHz return channel.
