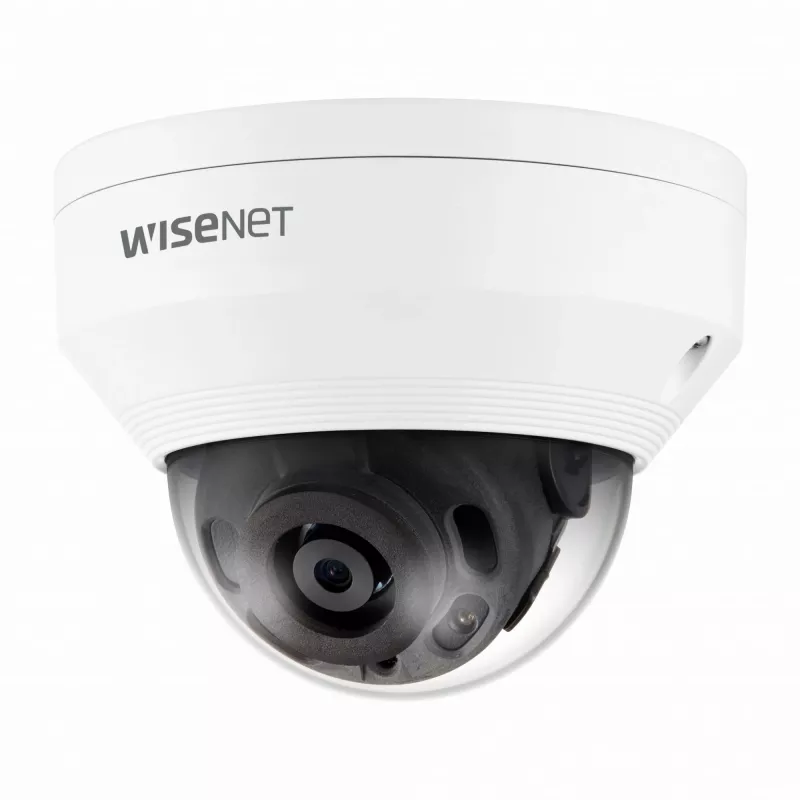

Dome IP bezpečnostná kamera Hanwha QNV-7022R 2560 x 1440 pixelov

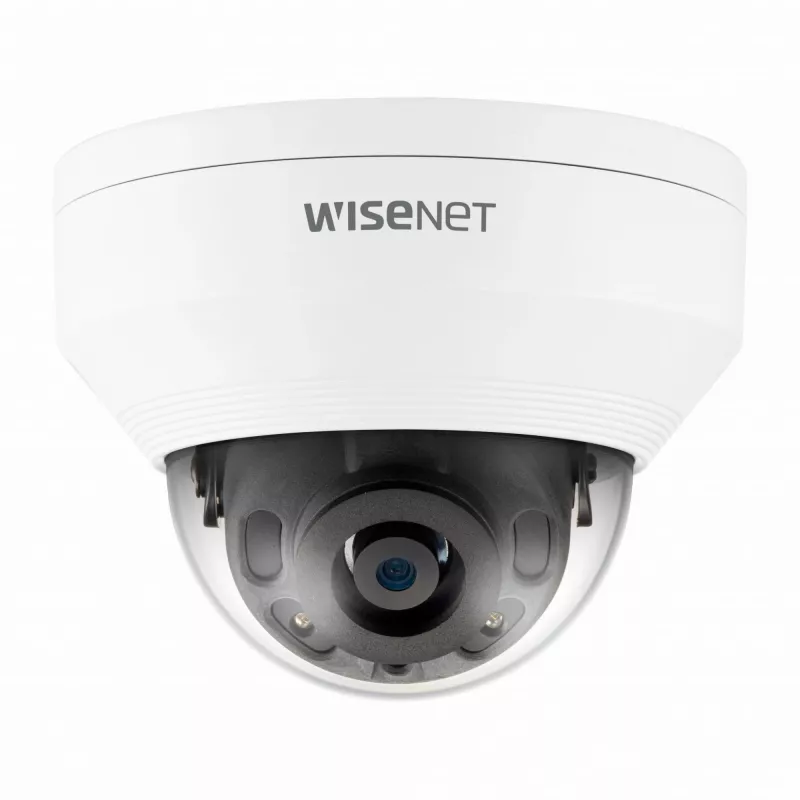

The Hanwha QNV-7022R dome IP security camera provides outdoor surveillance with a 2560 x 1440 pixel resolution and a 350° rotation angle. Designed for wired Ethernet connectivity and ceiling mounting, the camera uses a CMOS sensor and delivers a horizontal field of view of 78.2° and a vertical field of view of 41.2°. With a detection range up to 63 m and support for video motion detection, the QNV-7022R is intended for continuous monitoring of outdoor spaces where clear image detail and wide coverage are required.

Advantages

The camera offers high-resolution imaging suitable for identifying details across a broad outdoor scene while maintaining a compact dome form factor and white exterior for discreet installation. Its wide horizontal and vertical viewing angles combined with a near-full rotation capability improve area coverage and reduce blind spots. Wired Ethernet connectivity ensures stable data transfer and continuous power when used with a compatible PoE setup, and integrated video motion detection helps trigger recording or alerts based on scene changes.

Suitable for

• Perimeter and entrance monitoring for commercial buildings
• Outdoor parking areas and garage surveillance
• Residential property exterior coverage
• Public outdoor spaces such as courtyards and walkways

Key specifications

• Optical resolution: 2560 x 1440 pixels
• Sensor type: CMOS
• Rotation capability: 350°
• Horizontal viewing angle: 78.2°
• Vertical viewing angle: 41.2°
• Maximum detection distance: 63 m
• Frame rate: up to 30 fps
• Deployment: outdoor, ceiling mount
• Connectivity: wired Ethernet (LAN)
• Video analytics: motion detection supported
• Color: white
• Weight: 0.51 kg

How to use

Install the dome camera on a suitable ceiling or overhang using the recommended mounting hardware and ensure the mounting surface can support the unit's weight. Connect the camera to a network switch or recorder via Ethernet cable; if using Power over Ethernet (PoE), provide power through the same cable to simplify installation. Configure the camera through the manufacturer’s web interface or a compatible network video recorder to set resolution, frame rate, orientation limits, and motion detection zones. Position the camera and adjust its rotation to cover the intended area while avoiding direct exposure to strong lights that can affect image quality.

Recommendations

For reliable outdoor performance, use corrosion-resistant mounting hardware and route Ethernet cabling through sealed conduits or weatherproof glands. Configure motion detection sensitivity and region settings to reduce false alarms from environmental movement such as tree branches or passing vehicles. Regularly check firmware updates from the manufacturer to maintain security and compatibility with network recording systems.
