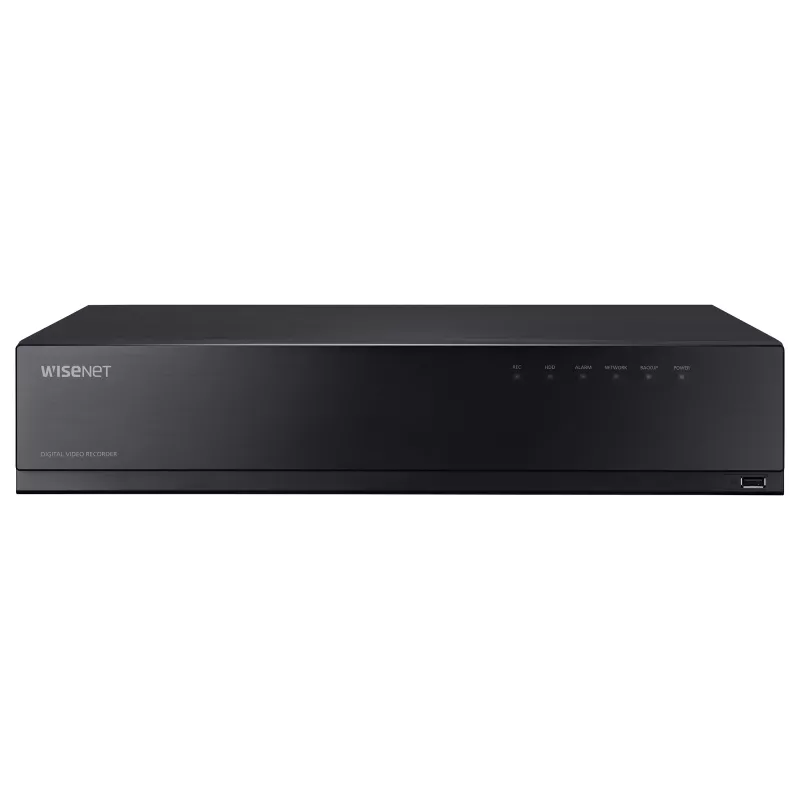

Hanwha Vision HRX-1635 16-kanálový analógový HD videorekordér (DVR), bez HDD

The Hanwha Vision HRX-1635 is a 16-channel analog HD video recorder with a maximum resolution of 3840 x 2160 pixels. It supports H.265, H.264 and MJPEG video formats and can simultaneously play back up to 18 channels.

Key features

• 16 video input channels
• 16 alarm input channels and 4 alarm output channels
• Maximum resolution: 3840 x 2160 pixels
• Supported resolutions: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
• Video recording modes: 2160p, 720p, 1080p
• Supported video formats: H.265, H.264
• Supported image format: MJPEG
• Backup function
• PTZ control
• Syslog
• DHCP client and DHCP server
• Two-way audio system
• Recording operation: schedule, event
• LED indicators
• On/off switch
• Product colour: Black

Specifications

• Brand: Hanwha Vision
• MPN: HRX-1635
• HDD capacity: 0 GB
• Maximum supported number of HDDs: 8
• Total installed storage capacity: 0 GB
• Max. storage capacity: 48 TB
• HDD interface: SATA III
• Input bandwidth: 128 Mbit/s
• Output bandwidth: 32 Mbit/s
• Ethernet LAN (RJ-45) ports: 1
• Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
• Supported network protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP
• BNC video input
• HDMI ports: 1
• VGA (D-Sub) output ports: 1
• USB 2.0 ports: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
• Line-in
• Power consumption (max.): 200 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 / 60 Hz
• Supported mobile operating systems: iOS, Android
• Operating temperature: 0 - 40 °C
• Relative humidity in operation: 20 - 85%
• Width: 440 mm
• Depth: 384.8 mm
• Height: 88 mm
• Quick installation guide
