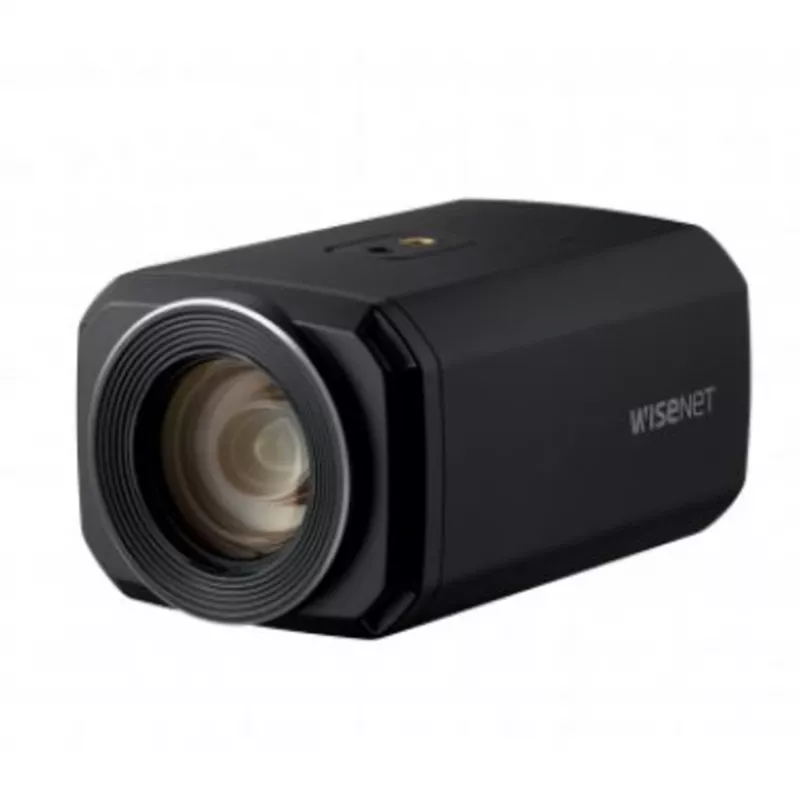

Hanwha Vision XNZ-L6320A 2MP Full HD sieťová box kamera s 32x optickým zoomom, 150dB WDR, H.265, PoE+, IP66, IK10

Monitoring expansive outdoor areas with a single camera often means compromising on detail or coverage. The Hanwha Vision XNZ-L6320A solves this by combining a 32x motorized zoom lens with 2MP Full HD resolution, ensuring you capture both wide scenes and distant objects with clarity. Its 150dB Wide Dynamic Range handles challenging lighting, while the rugged IP66 and IK10 ratings guarantee reliable operation in harsh environments.

Who is it for

This camera suits security professionals and system integrators who need a dependable PTZ solution for large outdoor spaces such as parking lots, stadiums, or industrial sites. It is also ideal for anyone requiring long-range identification and two-way audio communication.

Main features

• 32x optical zoom lens (4.44–142.6mm) with 32x digital zoom for detailed close-ups.
• Full HD 1080p resolution at 60fps for smooth, sharp video.
• 150dB WDR and day/night functionality with auto ICR for superior image quality in any light.
• Built-in IR illumination up to 200m for clear night vision.
• H.265, H.264, and MJPEG compression to optimize bandwidth and storage.
• 360° endless pan and -20° to 90° tilt for complete coverage.
• IP66 weatherproof and IK10 vandal-resistant housing for outdoor durability.
• Two-way audio support (mic/line in, line out) for interactive monitoring.
• Local storage via SD/SDHC/SDXC slot (up to 256GB).
• Power options: 24V AC or PoE+ (IEEE 802.3at).

Specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Max resolution: 1920 x 1080 (Full HD)
• Frame rate: 60fps @ 1920x1080
• Minimum illumination: Color: 0.05 lux (F1.6), B/W: 0.005 lux (F1.6)
• Focal length: 4.44 ~ 142.6mm
• Optical zoom: 32x
• Digital zoom: 32x
• Pan range: 360° endless
• Tilt range: -20° ~ 90°
• IR distance: Up to 200m (656ft)
• Video compression: H.265, H.264, MJPEG
• Wide Dynamic Range: 150dB
• Day & Night: Auto (ICR)
• Network interface: RJ-45 (10/100BASE-T)
• Audio: Two-way (Mic in / Line in, Line out)
• Local storage: SD/SDHC/SDXC slot (Max. 256GB)
• Power: 24V AC, PoE+ (IEEE 802.3at)
• Operating temperature: -50°C to +55°C (-58°F to +131°F)
• Protection: IP66, IK10

Tips

For optimal performance, pair this camera with a compatible NVR that supports H.265 to maximize storage efficiency. Use a PoE+ injector or switch if you prefer a single-cable installation. Position the camera to avoid direct sunlight into the lens to reduce glare and extend sensor life.
