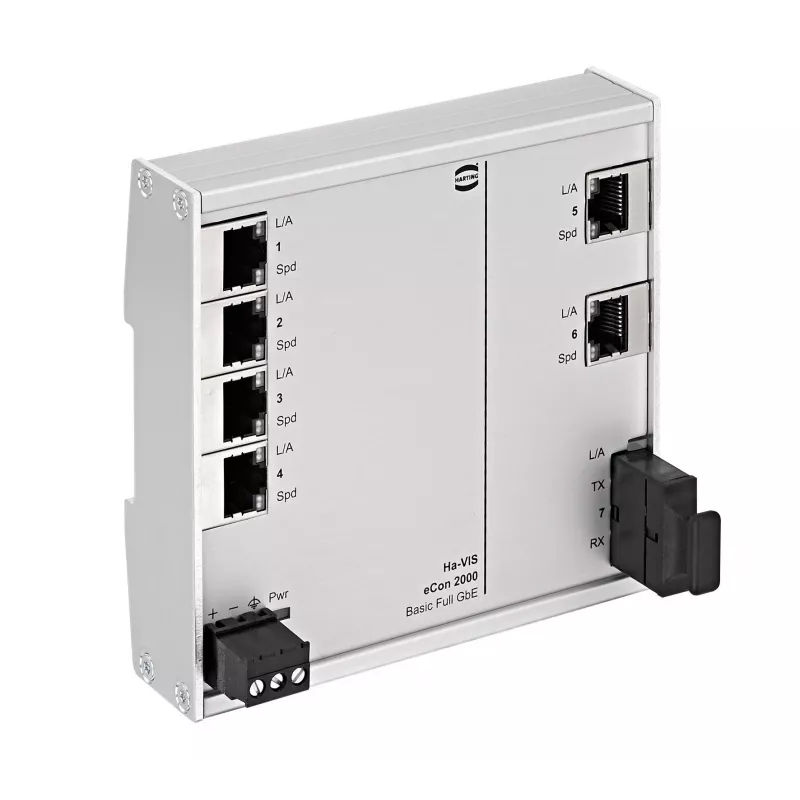

HARTING Ha-VIS eCon 2061GBT-AF neupravovaný gigabitový switch, 6 portov, DIN lišta

The HARTING Ha-VIS eCon 2061GBT-AF is a robust unmanaged Gigabit Ethernet switch designed for industrial environments. With 6 ports supporting 10/100/1000 Mbps, it ensures reliable high-speed data transmission. Its compact DIN rail mount design and wide operating temperature range make it ideal for demanding applications.

Advantages

This switch offers plug-and-play connectivity without the need for configuration, reducing installation time. It features redundant power supply input (12-48 V DC) for increased reliability, and a rugged anodized aluminum housing with IP30 protection. Jumbo frame support up to 9.6 KB enhances performance for large data transfers.

Suitable for

• Industrial automation networks
• Factory floor communication
• Transportation and logistics systems
• Energy and utility monitoring

Key specifications

• Switch type: Unmanaged
• Number of ports: 6 x RJ45 10/100/1000Base-T
• Power supply: 12-48 V DC (redundant)
• Power consumption: Max. 3.5 W
• Mounting: DIN rail
• Operating temperature: -40 °C to +70 °C
• Protection class: IP30
• MAC address table: 2K entries
• Buffer memory: 1 Mbit
• Jumbo frame support: Yes, up to 9.6 KB
• Auto-negotiation and Auto MDI/MDI-X: Yes
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Certifications: CE, UL 508, cUL, DNV GL
• MTBF: > 1,000,000 h at 25°C

Recommendations

For optimal performance, use shielded Cat6a cables in high-EMI environments. Ensure the DC power supply is stable and within the specified range.
