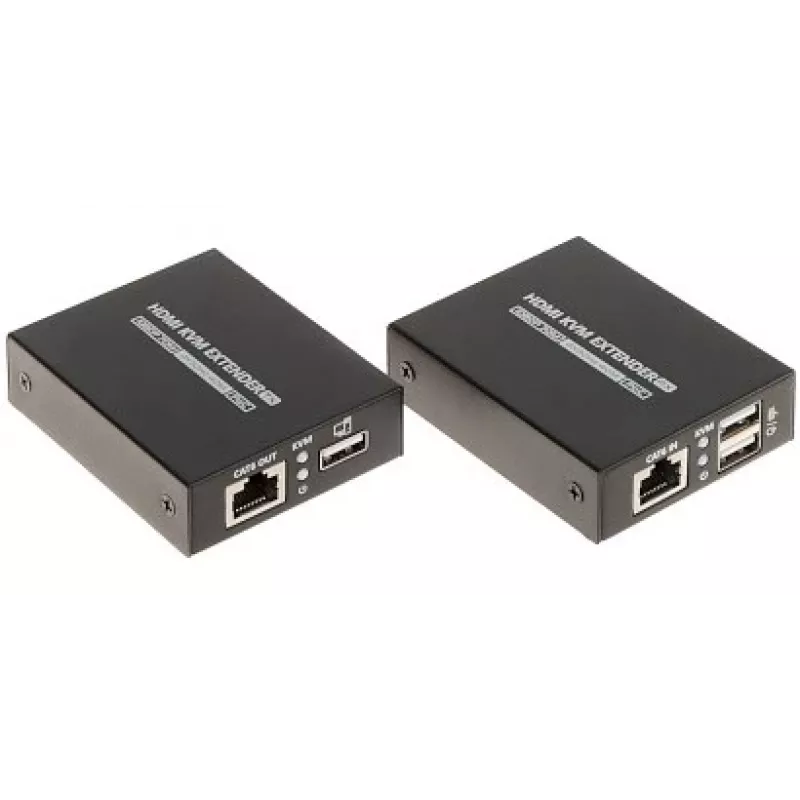

HDMI & USB KVM Extender 4K@60Hz 70m cez Cat6/7

The HDMI & USB KVM Extender HDMI+USB-EX-70-4K-PRO is a professional-grade solution for extending HDMI video and USB 2.0 signals up to 70 meters over a single Cat6/7 cable. Supporting 4K Ultra HD resolution at 60Hz with 18Gbps bandwidth, it delivers zero-latency, uncompressed video and audio, making it ideal for demanding AV installations.

Advantages

This extender offers seamless plug-and-play operation with automatic EDID pass-through, ensuring compatibility with a wide range of displays and sources. The metal chassis provides durability, while the included dual power adapters guarantee reliable performance. With support for HDCP 2.2/1.4 and deep color up to 12-bit, it is perfect for home theaters, conference rooms, and digital signage.

Suitable for

• Home theater systems requiring 4K HDR extension
• Corporate meeting rooms with remote USB peripherals
• Digital signage installations over long distances
• Education and broadcast environments

Key specifications

• Extender Type: HDMI & USB KVM Extender
• Maximum Resolution: 3840x2160 @ 60Hz
• Maximum Distance: 70m (230ft) over Cat6/7
• HDMI Standard: HDMI 2.0
• HDCP Support: HDCP 2.2 / 1.4
• USB Standard: USB 2.0
• Transmission Medium: Single Cat5e/6/7 Cable
• Video Bandwidth: 18 Gbps
• Audio Support: LPCM 7.1, Dolby Digital, DTS, HD Audio
• EDID Management: Automatic EDID Pass-through
• Latency: Zero Latency
• Transmitter Inputs: 1x HDMI In, 1x USB Type B
• Receiver Outputs: 1x HDMI Out, 2x USB Type A
• Link Ports: 2x RJ45 (1x on TX, 1x on RX)
• Power Supply: 2x DC 5V/2A Power Adapters (included)
• Chassis Material: Metal
• Color Depth Support: 8-bit, 10-bit, 12-bit
• Operating Temperature: 0°C to 45°C
• Plug and Play: Yes

Recommendations

For optimal performance, use high-quality Cat6 or Cat7 cables. This extender is not recommended for wireless or IP-based installations. Ensure proper ventilation to maintain operating temperature.
