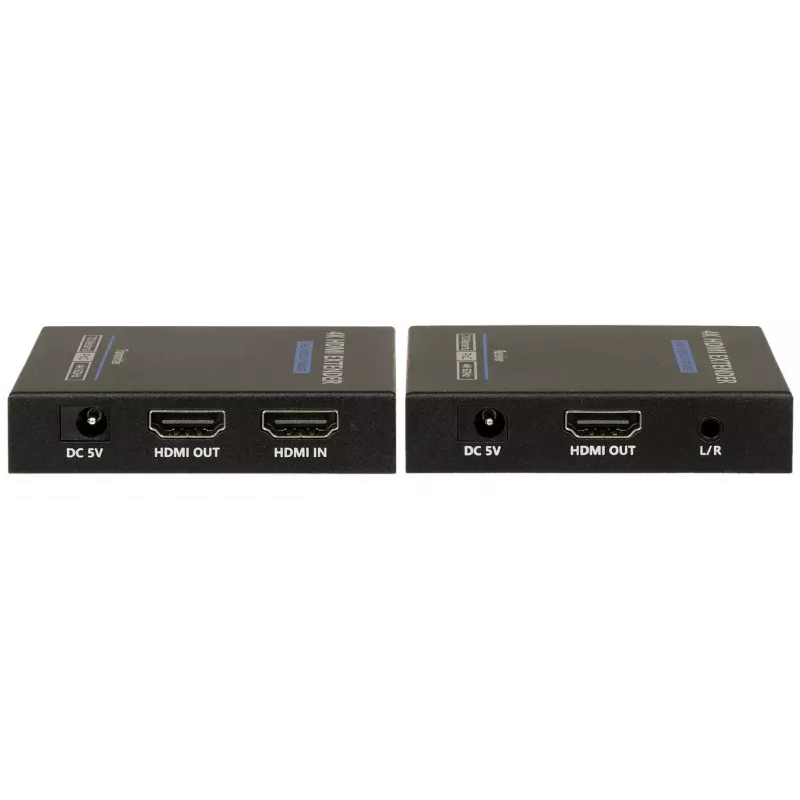

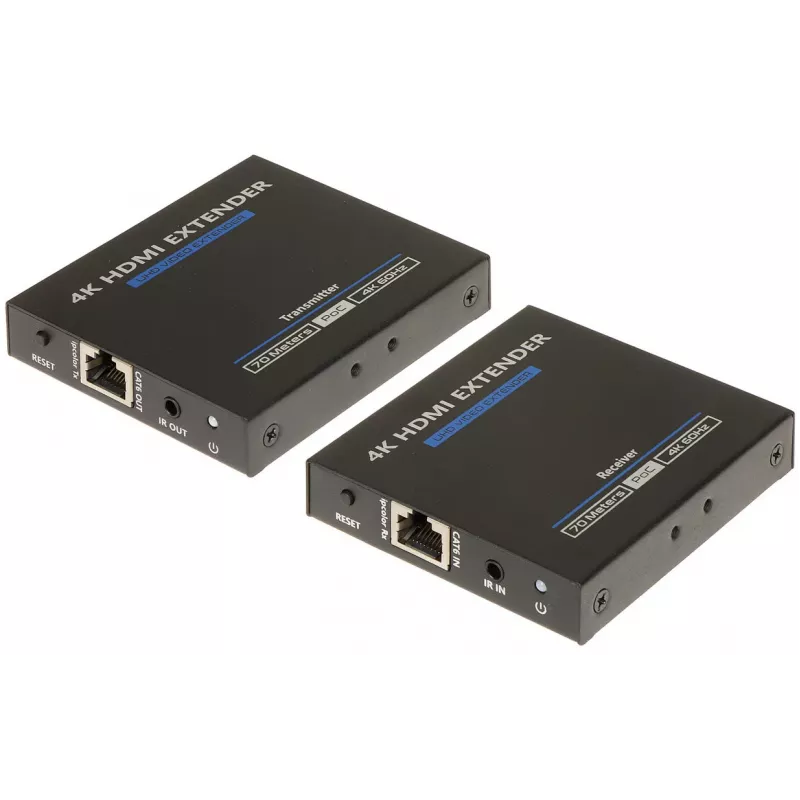

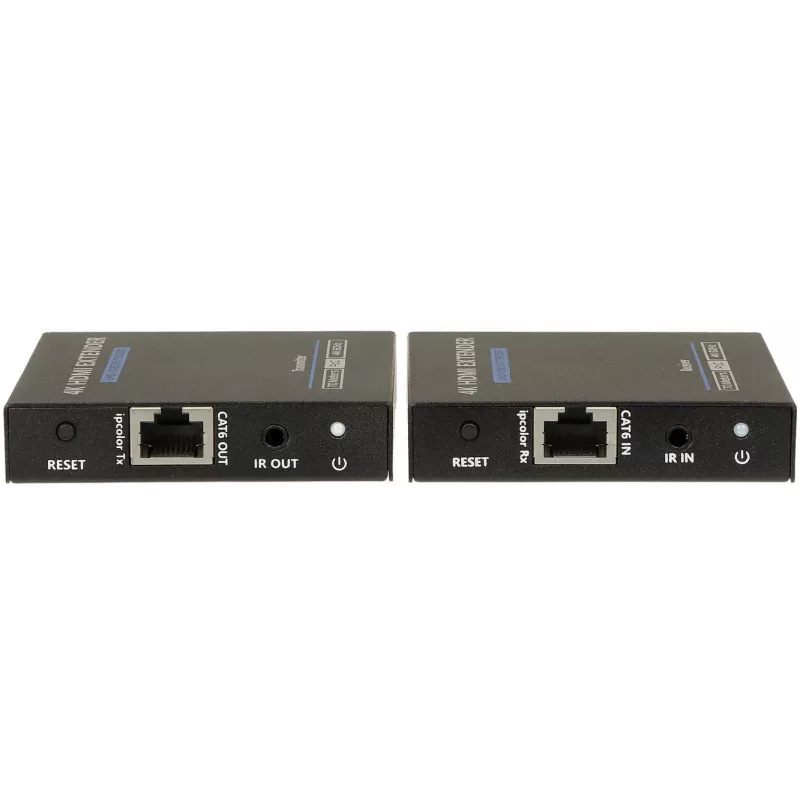

HDMI Extender HDMI-EX-70IR-4KV2 4K@60Hz HDBaseT Lite 70m IR PoC

The HDMI Extender HDMI-EX-70IR-4KV2 is a professional-grade HDBaseT Lite solution for extending HDMI signals up to 70 meters at 1080p or 40 meters at 4K@60Hz 4:4:4. It supports bi-directional IR pass-through and Power over Cable (PoC), making it ideal for AV installations in conference rooms, digital signage, and home theaters.

Advantages

This extender delivers uncompressed 4K video with 18 Gbps bandwidth, ensuring pristine image quality. The PoC feature simplifies installation by powering either the transmitter or receiver via a single power supply. Metal housing provides durability and ESD protection for reliable operation in demanding environments.

Suitable for

• Extending HDMI signals in commercial AV systems
• Home theater setups requiring long cable runs
• Digital signage and retail displays
• Education and corporate meeting rooms

Key specifications

• Max Resolution: 4K@60Hz 4:4:4 (up to 40m), 1080p@60Hz (up to 70m)
• HDMI Standard: HDMI 2.0, HDCP 2.2/1.4
• Bandwidth: 18 Gbps
• Transmission: HDBaseT Lite over Cat.6/6a/7
• IR Pass-through: Bi-directional (20-60KHz)
• Power: PoC (TX or RX powered), DC 12V/1A adapter included
• Audio: LPCM 2.0/5.1/7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
• Housing: Metal
• Dimensions (each): 106 x 70 x 20 mm

Recommendations

For optimal performance, use Cat.6a or Cat.7 cables. Ensure proper ventilation to maintain operating temperature between 0°C and 45°C. This extender is not recommended for outdoor use without additional protection.
