HDMI kábel aktívny Vivolink PRO HDMI kábel ACTIVE 20 m

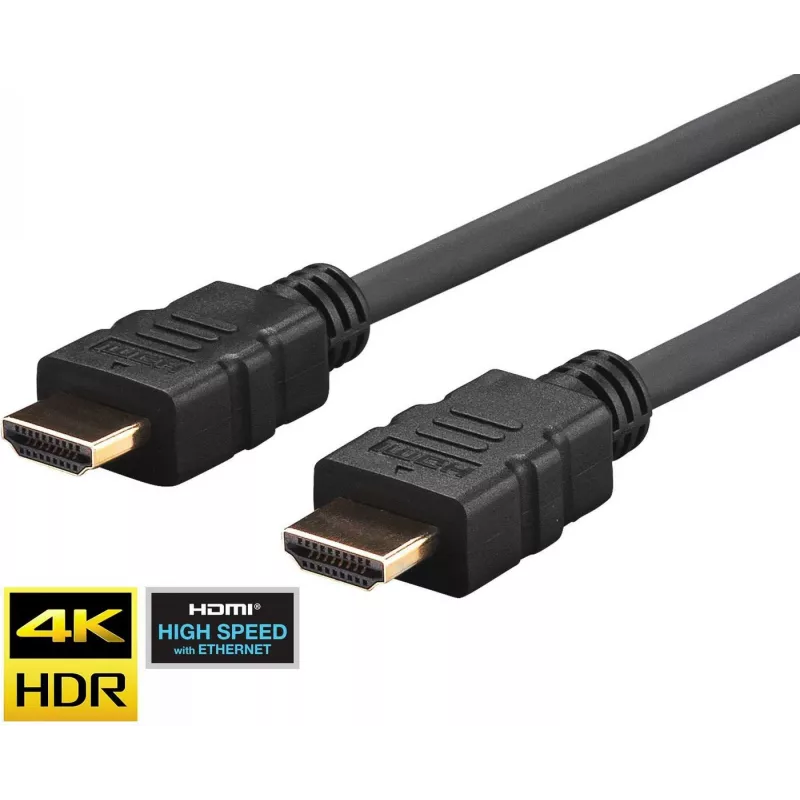

The Vivolink PRO HDMI Cable Active 20m is a high-performance HDMI 2.0 cable with Ethernet and HDMI lock, designed for stable AV connections in fixed installations. It supports resolutions up to 4K@60Hz (3840 x 2160) with HDCP 2.2, CEC and ARC, and provides a data throughput of up to 18 Gbit/s. The cable features gold-plated HDMI Type A connectors and a black finish.

Advantages

This active HDMI cable delivers reliable long-distance signal transmission up to 20 m while maintaining support for HDMI 2.0 features including 3D, ARC and HDCP 2.2. The integrated HDMI lock secures the connector in place for fixed AV installations, reducing the risk of accidental disconnection. Gold-plated Type A connectors improve contact quality and corrosion resistance. The cable is ultra-flexible for easier routing in installations. Note: the cable is uni-directional and must be used in the specified signal direction.

Suitable for

• Fixed AV installations requiring secure connections (e.g., AV splitters, switches, distribution systems)
• Connecting 4K@60Hz displays, projectors and receivers supporting HDMI 2.0
• Setups that require ARC or CEC functionality

Key specifications

• Length: 20 m
• HDMI version: 2.0
• Maximum resolution: 3840 x 2160 @60Hz
• Bandwidth: up to 18 Gbit/s
• Features: Ethernet, ARC, CEC, HDCP 2.2, 3D support
• Connectors: HDMI Type A (gold-plated) on both ends
• Colour: Black
• MPN / EAN: PROHDMIHD20-18G / 5706998232151

How to use

Connect the cable from the HDMI output of the source device to the HDMI input of the display or AV equipment following the cable's directional marking. Ensure the HDMI lock engages to secure the connection in fixed installations. Use the specified signal direction—this active cable is not bi-directional. For regular use with laptops or portable devices, consider adding the Vivolink PROHDMIHDMFM2 adapter to protect the portable device's HDMI port from wear.

Recommendations

Use this cable for permanent AV installations where a secure, locked HDMI connection is required. Avoid bending the cable sharply and follow the indicated signal direction. For frequent connect/disconnect with portable devices, use the recommended adapter to protect the device’s HDMI port.
