HDMI kábel MicroConnect HDM19192V2.0A90 2 m 4K 18 Gbit/s

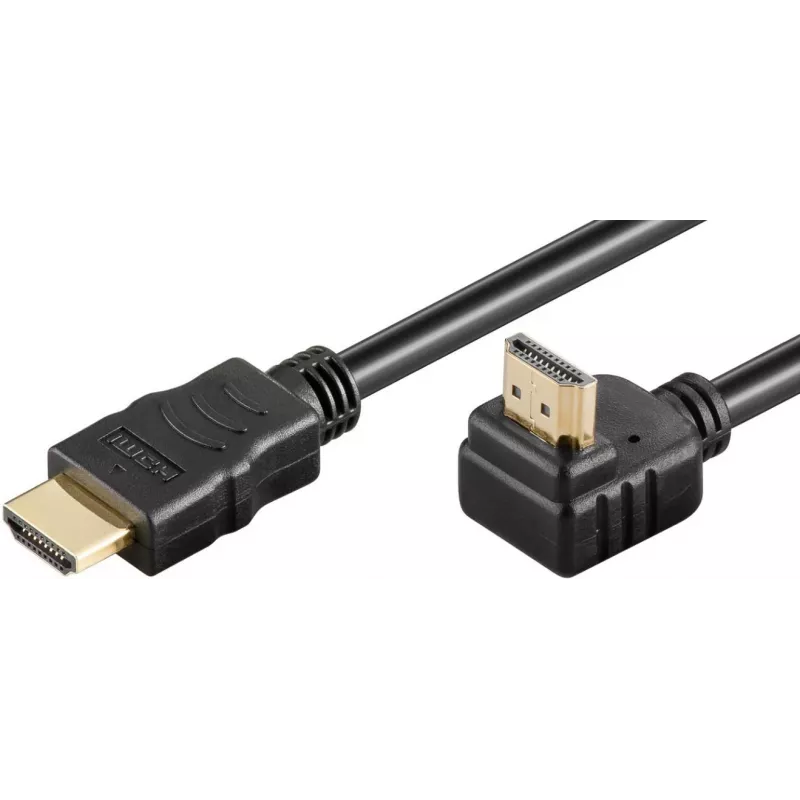

The MicroConnect HDM19192V2.0A90 is a 2 m HDMI 2.0 cable designed for high-performance digital transmission of video and audio between compatible devices. It supports bandwidths up to 18 Gbit/s and resolutions up to 4K at 60 Hz with HDCP 2.2, CEC, ARC and 3D support. The cable has a 90° angled HDMI Type A connector that limits plug protrusion from the wall to approximately 16 mm, making it suitable for installations close to displays or other equipment.

Advantages

Gold-plated connectors ensure reliable contact and reduce corrosion. High Speed HDMI 2.0 specification provides up to 18 Gbit/s transfer rate for smooth 4K@60Hz video and multi-channel audio. The 90° angled plug minimises strain and saves space behind wall-mounted displays or devices placed close to a wall. The 2 m length offers flexibility for typical home and office setups.

Suitable for

• Connecting 4K@60Hz TVs or monitors to set-top boxes, Blu-ray players or PCs
• Wall-mounted flat-screen installations where connector protrusion must be minimised
• Home theatre systems requiring ARC and CEC functionality
• Devices that support HDCP 2.2 protected content playback

Key specifications

• Length: 2 m
• Standard: HDMI 2.0 (High Speed)
• Maximum bandwidth: 18 Gbit/s
• Maximum resolution: 4K@60 Hz
• Connectors: HDMI Type A (Standard) — both ends; 90° angled plug design
• Features: HDCP 2.2, CEC, ARC, 3D support
• Connector plating: gold-plated contacts
• Colour: Black
• Brand / MPN: MicroConnect / HDM19192V2.0A90

How to use

Insert the 90° angled HDMI Type A connector into the HDMI port of your TV, monitor or source device, ensuring the plug orientation matches the port. Connect the other end to the corresponding HDMI output on your player, console or PC. Use the cable to transmit audio and video signals; the cable supports automatic features such as CEC and ARC if your devices support them. Avoid bending the cable sharply at the connector and ensure the connector is fully seated to maintain a stable signal.

Recommendations

For best results, use this MicroConnect HDMI 2.0 cable with devices that support HDMI 2.0 features and HDCP 2.2. When installing behind wall-mounted displays, confirm the 90° plug orientation fits the port location so the limited 16 mm protrusion aligns correctly.
