HDMI modul DeLOCK Easy 45 rovný 22,5 x 45 mm

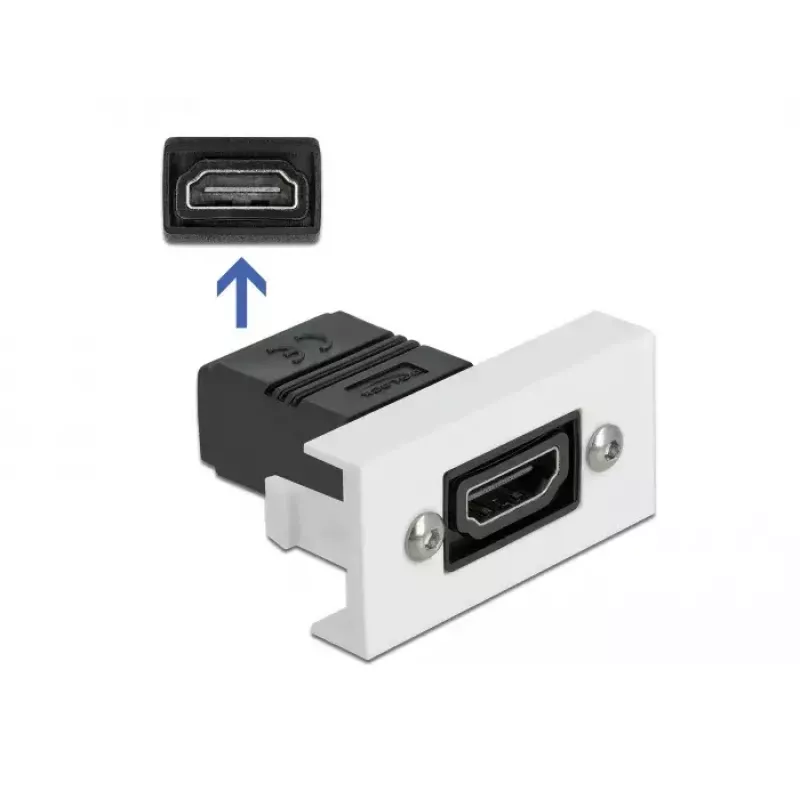

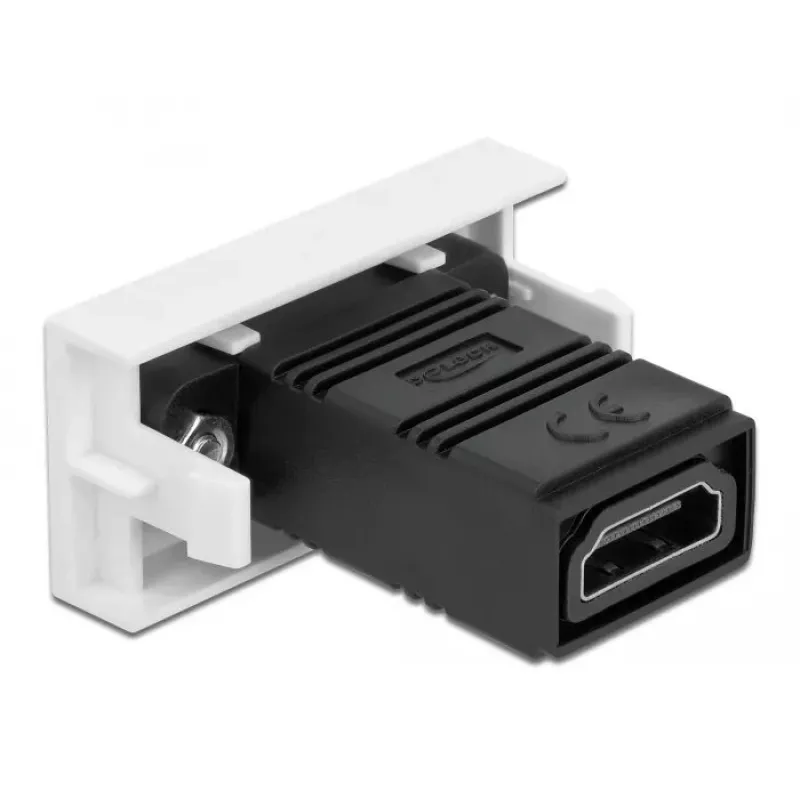

The DeLOCK Easy 45 HDMI Module is a straight, snap-in HDMI female port module with compact dimensions of 22.5 x 45 mm and a black finish. It is part of the Easy 45 modular system and provides a standard HDMI interface for connecting TVs, monitors, laptops and other HDMI-equipped devices. The snap-in mechanism secures the module in place while allowing easy removal when needed.

Advantages

The module is standardized for the Easy 45 system, enabling flexible installation in compatible module holders or cable ducts. Its straight HDMI female connector supports high-quality video and audio transmission and the compact 22.5 x 45 mm form factor saves space in modular installations. The black colour provides a neutral appearance that fits typical AV and network installations.

Suitable for

• Connecting TVs and monitors to HDMI sources
• Workstations and meeting rooms with modular faceplates
• Integrating laptops or media players into AV installations

Key specifications

• Connector type: HDMI female module
• System: DeLOCK Easy 45 modular system

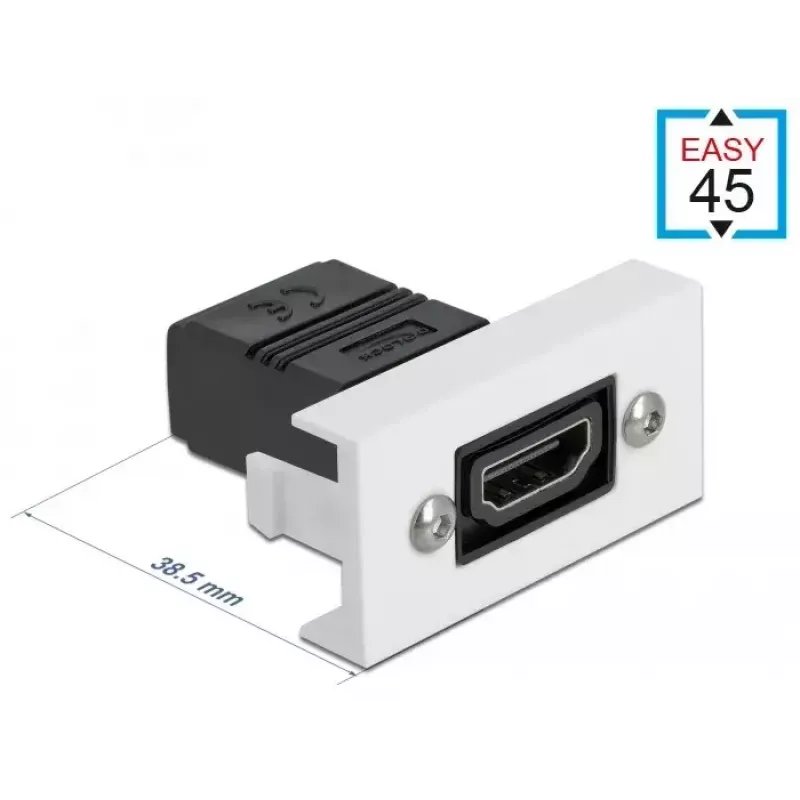

• Dimensions: 22.5 x 45 mm
• Colour: Black
• Mounting: Snap-in for Easy 45 holders and cable ducts
• Manufacturer: DELOCK, MPN 81303, EAN 4043619813032

How to use

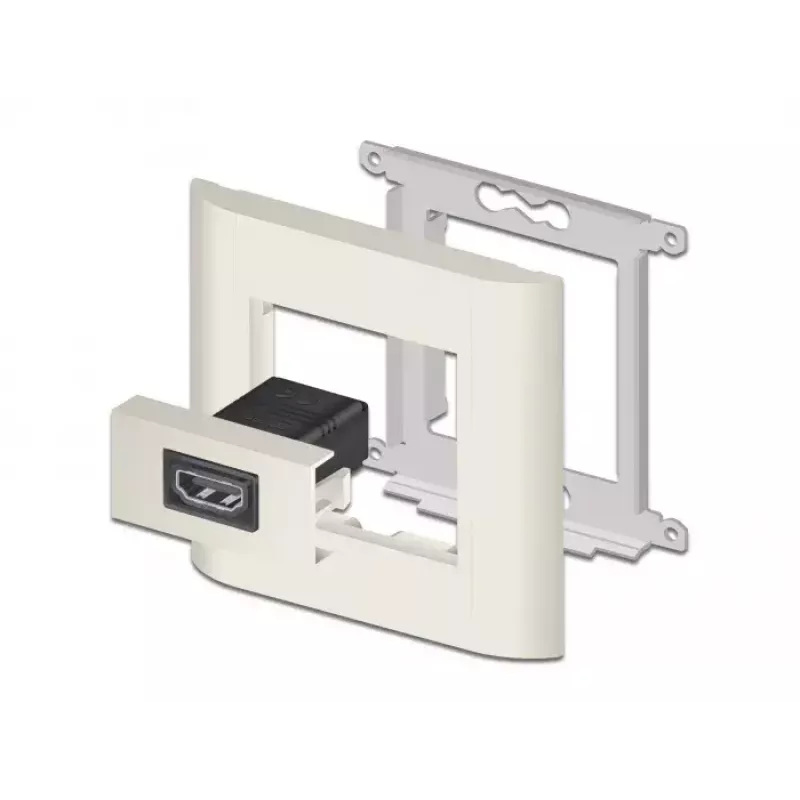

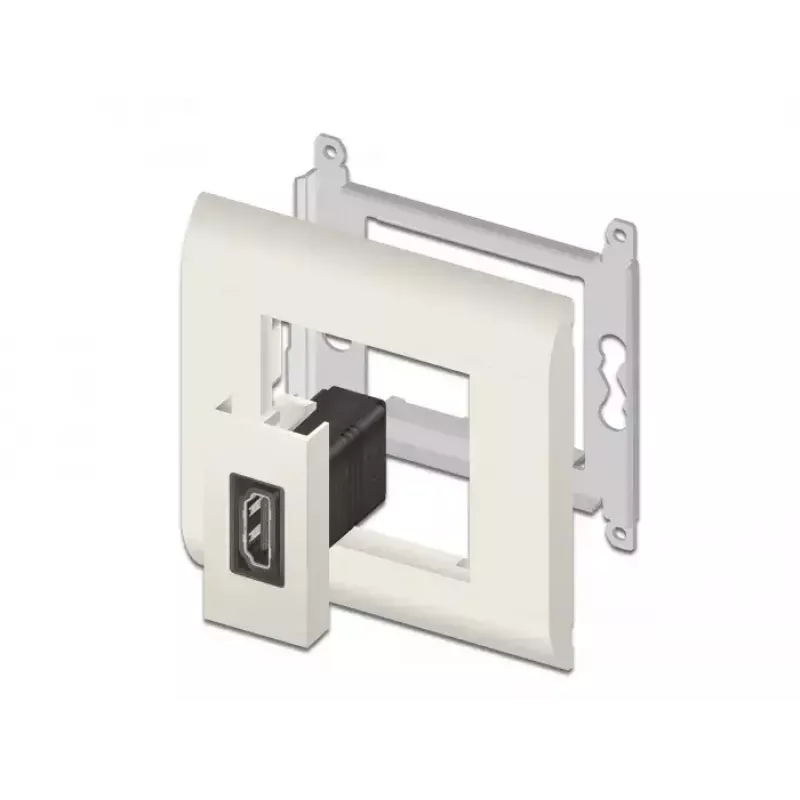

Insert the module into a compatible Easy 45 module holder or cable duct until it snaps into place. Connect an HDMI cable to the female port to link displays, players or computers. To remove the module, press the release mechanism (if present) and pull the module out of the holder.

Recommendations

Use compatible Easy 45 holders and ensure the surrounding panel or duct is rated for AV installations. Handle HDMI cables carefully to avoid stress on the module and follow standard grounding and cable routing practices for reliable signal transmission.
