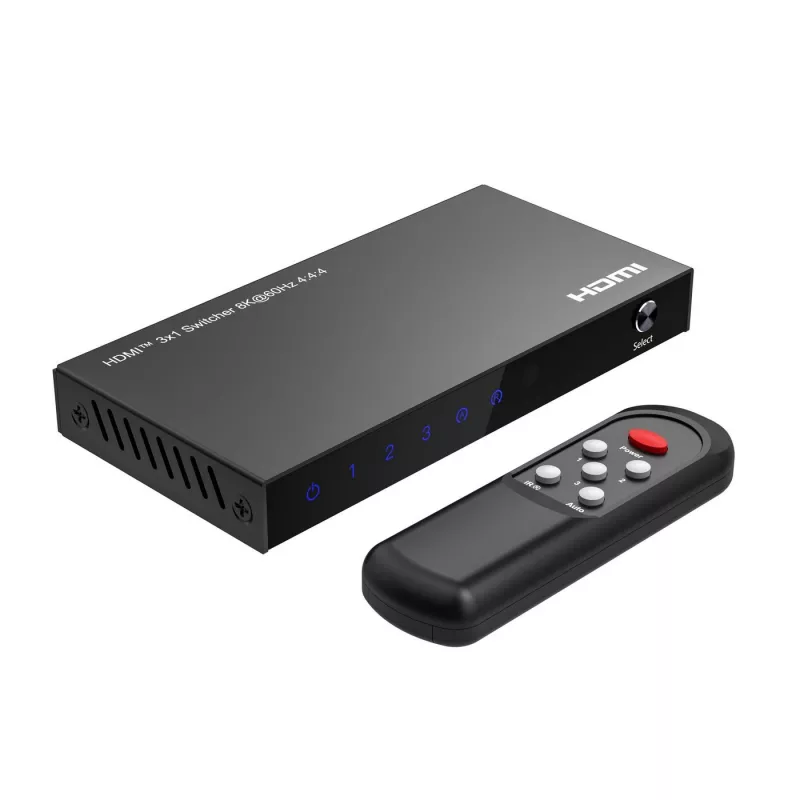

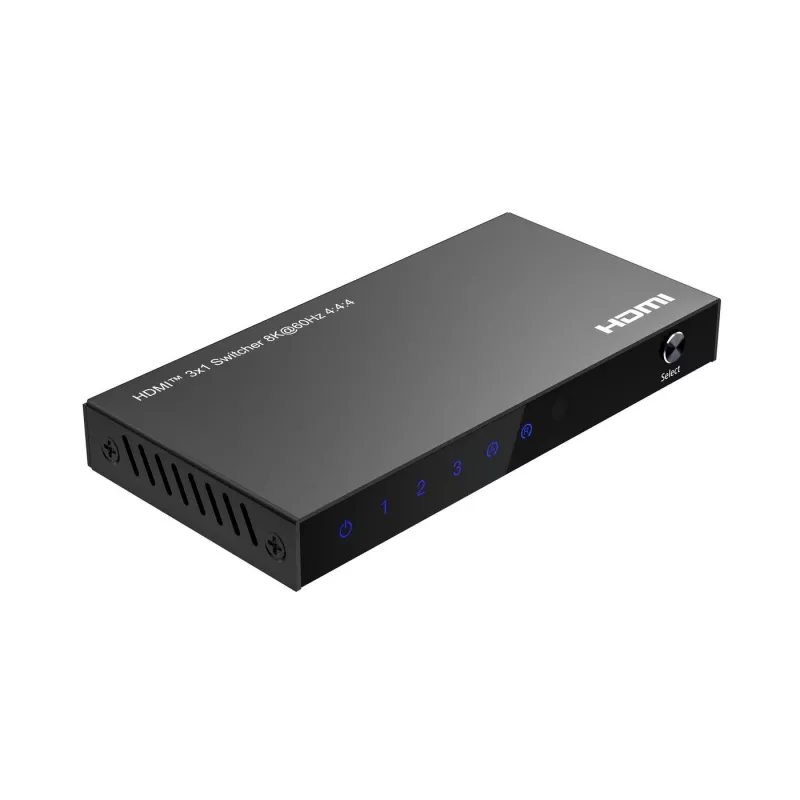

HDMI prepínač MicroConnect MC-HDMISWITCH0301-8K 8K 60Hz 4:4:4

The MicroConnect MC-HDMISWITCH0301-8K HDMI 8K Switch 3x1 lets you connect up to three HDMI sources to a single display or projector. Engineered for high-resolution video and audio transmission, it supports 8K@60Hz with 4:4:4 chroma, 4K@120Hz and 1080p@240Hz to maintain precise colour detail and smooth motion for home theater, gaming, or professional AV setups.

Advantages

This HDMI switch provides three switching modes — manual button switching, IR remote control switching and automatic port switching that selects the most recently active input. The unit also includes long-press functions for advanced control: toggle between manual and automatic modes and enable or disable the IR receiver to avoid interference from other remote devices. Support for 8K@60Hz (4:4:4) and high refresh rates ensures compatibility with current and next-generation sources and displays.

Suitable for

• Home theater systems
• Gaming consoles with high refresh-rate output
• Professional AV installations and presentations
• Setups requiring multiple HDMI sources to one display or projector

Key specifications

• Model: MicroConnect MC-HDMISWITCH0301-8K (MPN: MC-HDMISWITCH0301-8K)
• EAN: 5715063739747

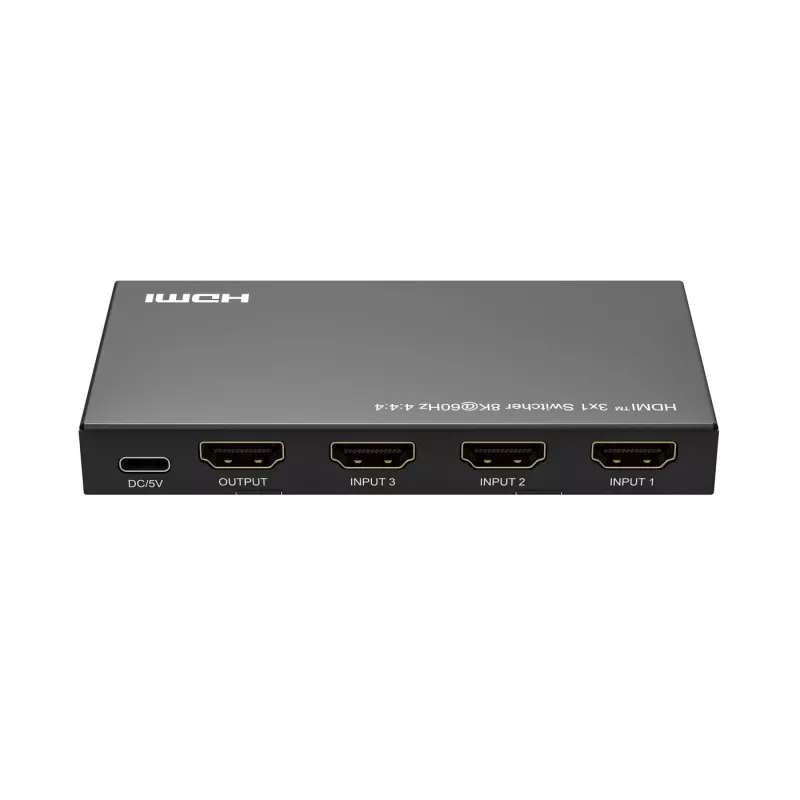

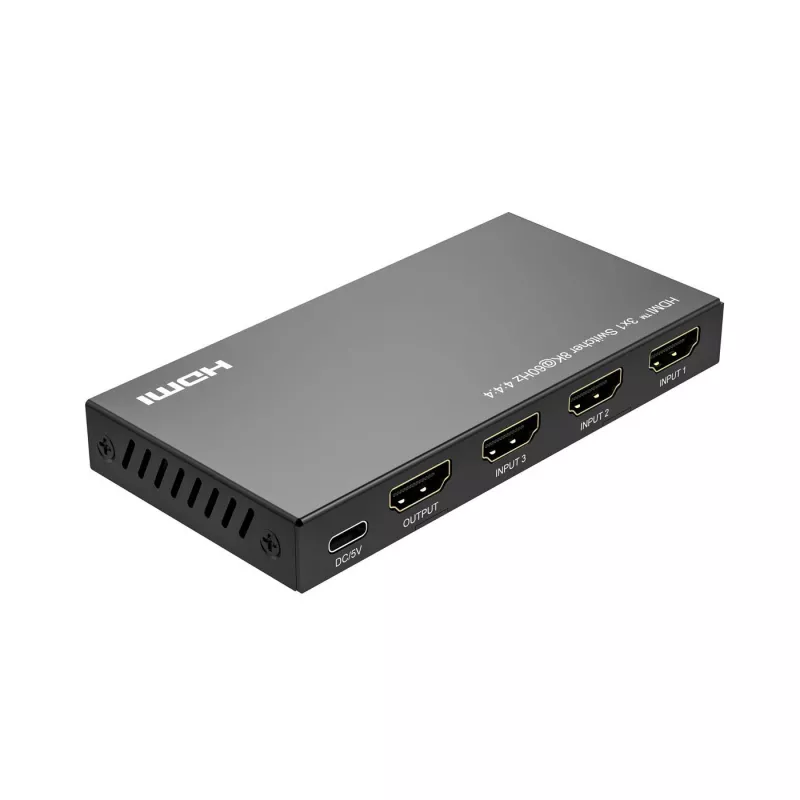

• Inputs: 3 × HDMI
• Output: 1 × HDMI
• Supported resolutions: up to 8K@60Hz (4:4:4), 4K@120Hz, 1080p@240Hz
• Switching modes: Manual, Remote (IR), Automatic
• Advanced controls: long-press to toggle modes and IR receiver on/off

How to use

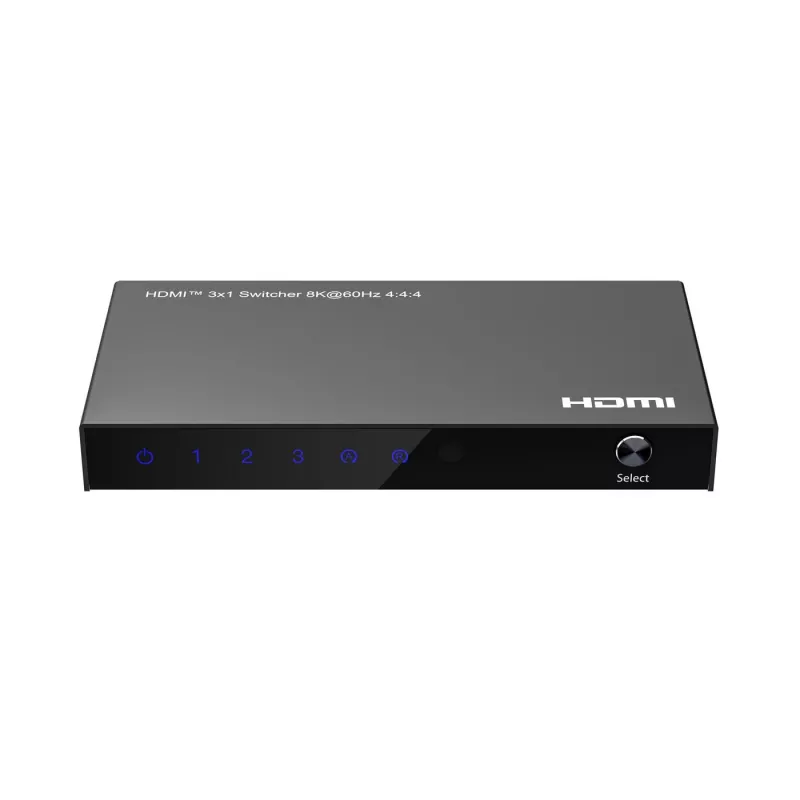

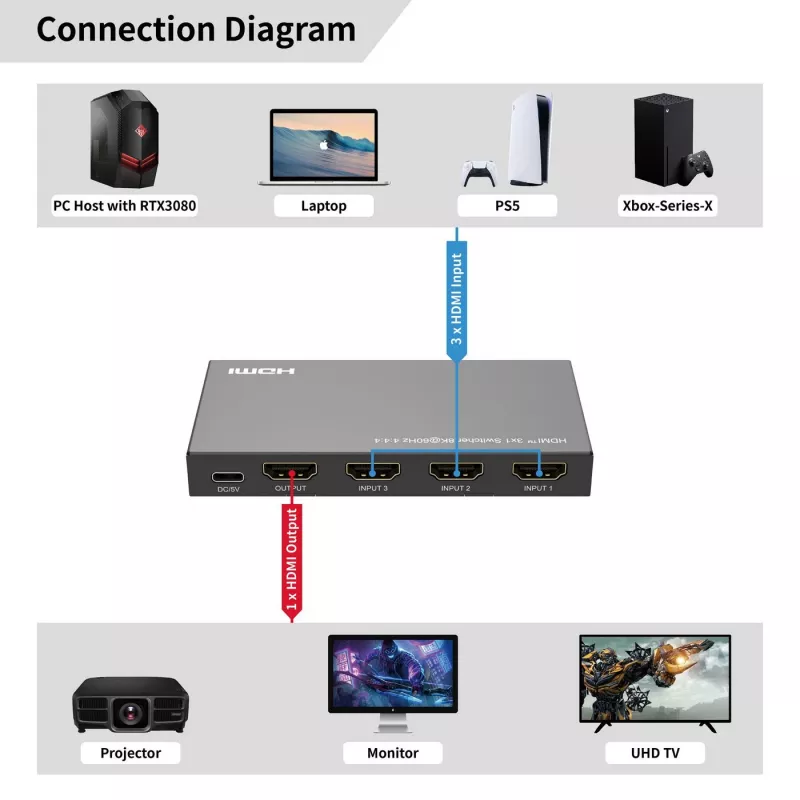

Connect up to three HDMI source devices to the switch inputs and connect the switch output to your display or projector using a high-speed HDMI cable rated for the desired resolution. Use the front panel button to manually select the active input, the supplied IR remote to change sources remotely, or let the device automatically switch to the most recently powered or active source. Use long-press actions on the front button to change between manual and automatic modes and to enable or disable the IR receiver.

Recommendations

For reliable 8K and high-refresh-rate performance, use HDMI cables rated for the target resolution and ensure connected devices support the same output settings. If remote conflicts occur, disable the IR receiver via the long-press function.
