HDMI prepínač MicroConnect MC-USBCHDMISWITCH0401-8K 8K rozlíšenie

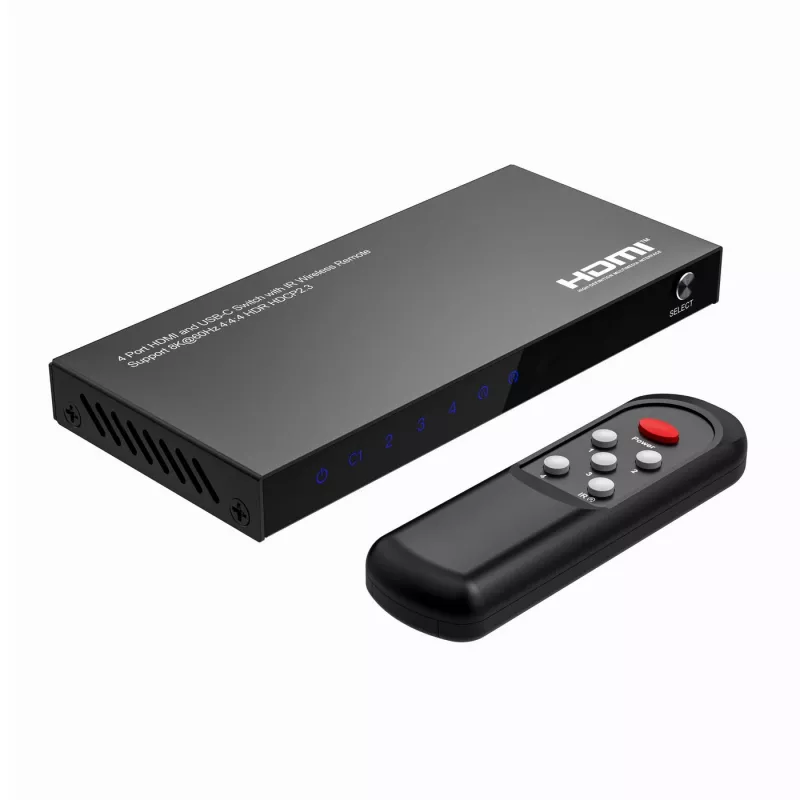

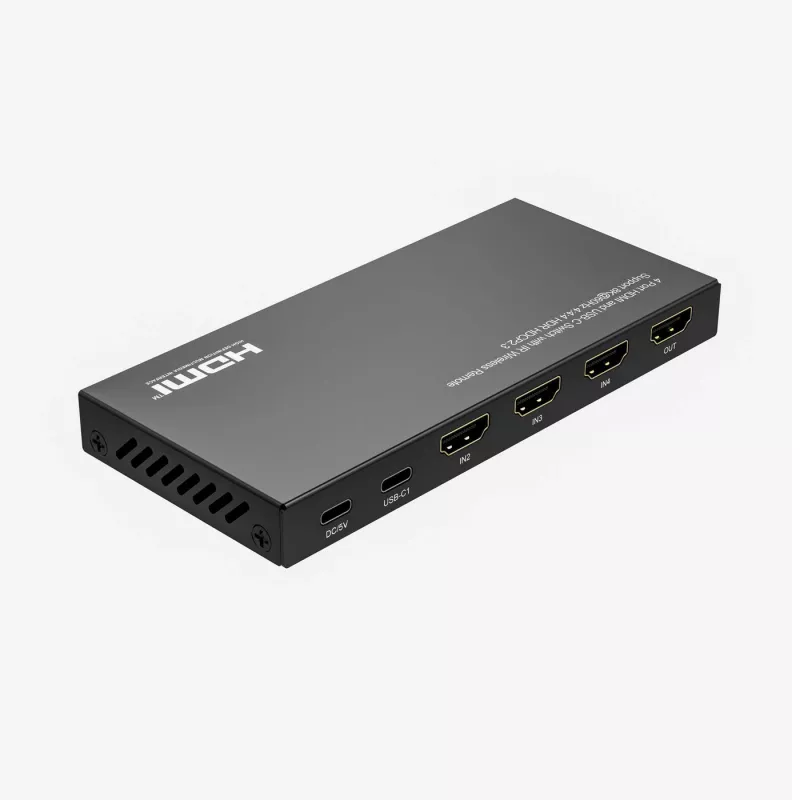

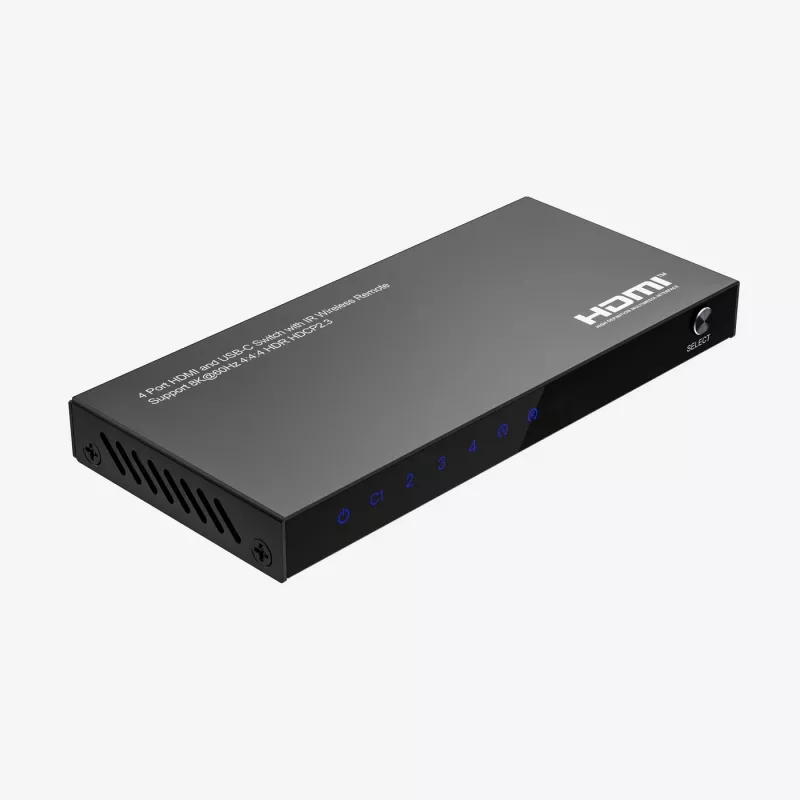

The MicroConnect MC-USBCHDMISWITCH0401-8K HDMI & USB-C 4-Port Switch connects up to four video sources (3× HDMI and 1× USB-C) to a single display or projector, supporting resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz. The USB-C input is compatible with Thunderbolt 3 and DisplayPort 1.4 Alt Mode, enabling high-performance connection for laptops, tablets and other USB-C devices. The unit includes integrated audio support for 7.1 surround sound, DTS, Dolby Digital and Dolby TrueHD, plus two charging ports (USB-A and USB-C) that provide power to peripherals.

Advantages

The switch offers flexible input selection with manual, IR remote and automatic switching modes, allowing quick selection of the active source. High-resolution video support up to 8K@60Hz ensures detailed image reproduction for gaming, home cinema and professional use. The built-in IR receiver on/off function prevents accidental remote interference and the Thunderbolt 3 / DP Alt Mode compatibility of the USB-C port simplifies connection of modern laptops and mobile devices.

Suitable for

• Home theatre systems and 4K/8K TVs
• Gaming setups requiring high refresh rates
• Conference rooms and professional AV installations
• Connecting laptops and tablets via USB-C (Thunderbolt 3 / DP Alt Mode)

Key specifications

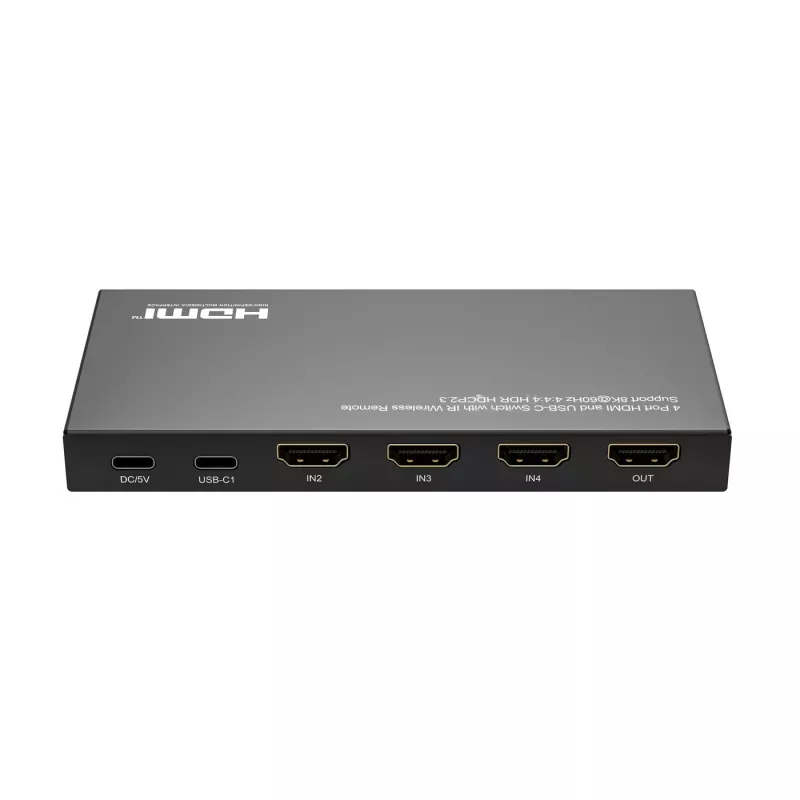

• Inputs: 3× HDMI, 1× USB-C (Thunderbolt 3 / DP 1.4 Alt Mode)
• Output: 1× HDMI to display or projector
• Supported resolutions: up to 8K@60Hz, 4K@120Hz, 1080p@240Hz
• Audio: 7.1 surround, DTS, Dolby Digital, Dolby TrueHD

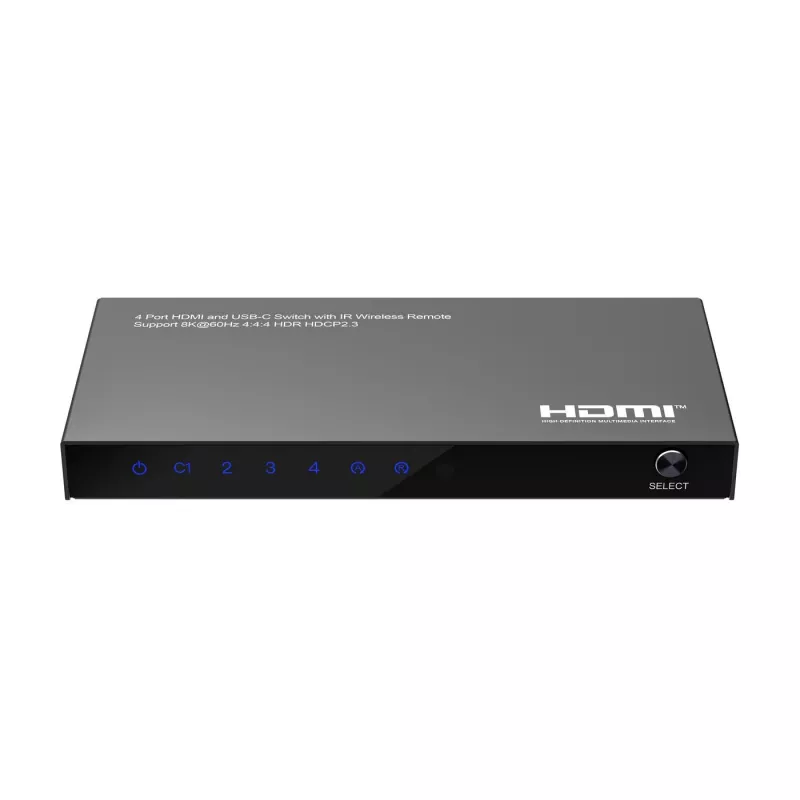

• Switching modes: manual, IR remote, automatic
• Power/charging ports: 1× USB-A and 1× USB-C (up to 5V 0.9A per port)
• IR receiver with on/off function
• Brand/Model: MicroConnect MC-USBCHDMISWITCH0401-8K

How to use

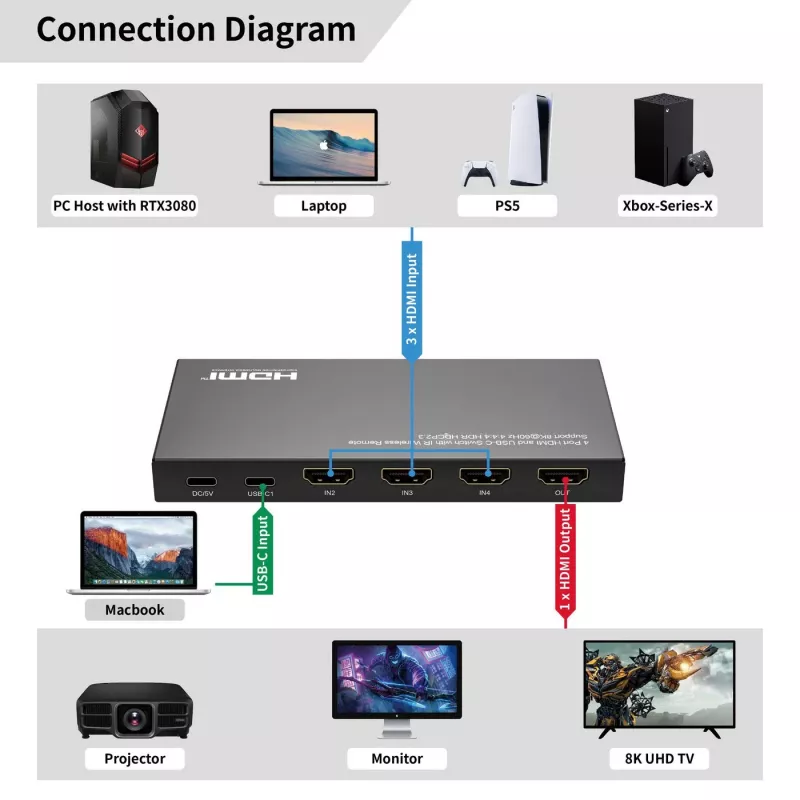

Connect your display or projector to the HDMI output and attach up to three HDMI sources and one USB-C source to the corresponding inputs. If using a USB-C device, ensure it supports Thunderbolt 3 or DisplayPort Alt Mode for video output. Select the active source using the front-panel button, the included IR remote, or enable automatic switching to let the switch detect the active input. Use the USB-A or USB-C charging ports to provide low-power charging to connected peripherals.

Recommendations

For stable 8K or high-refresh-rate performance, use high-quality certified HDMI 2.1 cables and ensure connected source devices support the target resolution and refresh rate. Disable the IR receiver if remote interference is an issue. Verify that USB-C devices support DP Alt Mode or Thunderbolt 3 to transmit video.
