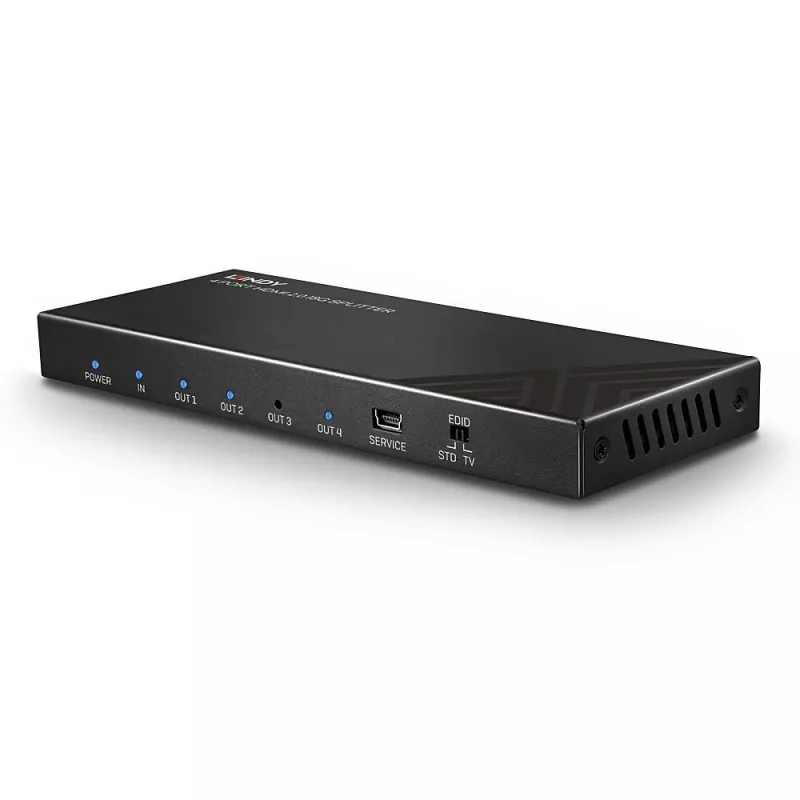

HDMI Splitter Lindy 4 Port HDMI 18G Splitter

The Lindy 4 Port HDMI 2.0 18G Splitter is a compact solution for distributing a single HDMI 2.0 18G source to multiple displays. It supports resolutions up to 4K@60Hz with 4:4:4 chroma sampling and 8‑bit colour depth, and provides High Dynamic Range (HDR) support for increased brightness, improved contrast and a wider colour gamut. The unit is compatible with common source devices such as set‑top boxes, Blu‑ray players and 4K HDR media players.

Advantages

The splitter offers reliable HDCP 2.2 compliance to avoid playback issues with protected 4K content. Built‑in EDID management increases compatibility with different displays. Its durable and compact design allows discreet installation in retail, medical or hospitality environments where multiple screens require the same 4K HDR signal.

Key specifications

• HDMI version: 2.0
• Bandwidth: 18 Gbps
• Maximum resolution: 4K@60Hz (3840×2160) 4:4:4 8‑bit
• HDR support: Yes
• HDCP support: HDCP 2.2
• Outputs: 4 HDMI outputs
• EDID management: Adjustable via switch on unit
• Form factor: Compact, durable housing

How to use

Connect the HDMI source (set‑top box, Blu‑ray player or 4K media player) to the splitter input and connect up to four HDMI displays to the outputs. Set the EDID management switch for the best compatibility with connected displays. Power the unit and verify each display receives the correct 4K@60Hz HDR signal. If protected content does not play, confirm source and displays support HDCP 2.2 and check cable quality.

Recommendations

Use high‑quality HDMI cables rated for 18 Gbps and ensure connected displays support the desired resolution and HDR formats. For professional installations, position the compact unit in a ventilated, discreet location close to the source or distribution point.
