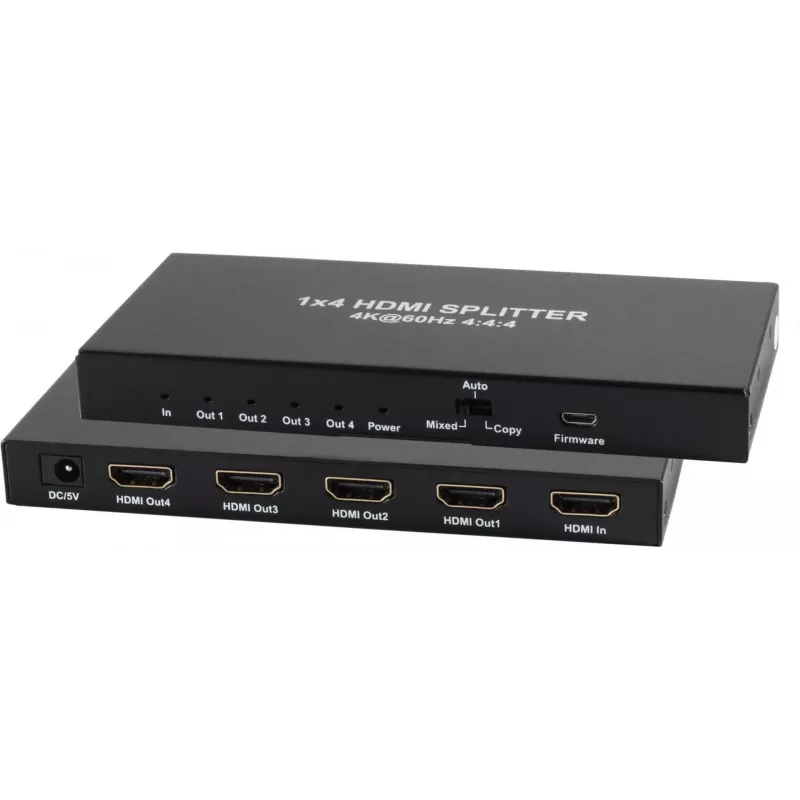

HDMI splitter ShiverPeaks 05-10002, 1x IN → 4x OUT, 4K2K 60 Hz

The ShiverPeaks HDMI splitter 05-10002 distributes a single HDMI input signal to four simultaneous HDMI outputs with support for 4K2K resolution at 60Hz. It duplicates both video and audio from one source device to multiple displays without switching, enabling identical content playback across up to four screens. The unit is intended for applications that require reliable mirroring of an HDMI source to several monitors or projectors while preserving 4K resolution and a 60Hz refresh rate.

Advantages

The splitter provides four independently driven HDMI outputs from one input, maintaining 4K2K at 60Hz for compatible displays and sources. It simplifies multi-display layouts by eliminating the need for repeated cabling from the source device and supports simultaneous audio and video transmission to all connected screens. The compact form factor allows installation in AV racks or near source equipment, facilitating tidy cable management and straightforward integration into existing setups.

Suitable for

• Retail signage and digital displays requiring identical content on multiple screens
• Presentation rooms, classrooms and meeting spaces that need mirrored video output
• Small AV installations where a single HDMI source must feed several monitors or projectors
• Demonstration booths or trade show stands with multiple display points

Key specifications

• Input/Output configuration: 1x HDMI input → 4x HDMI outputs
• Maximum resolution: 4K2K (3840 x 2160) at 60Hz
• Signal type: HDMI video and audio duplication
• Simultaneous output: identical content mirrored to all four outputs
• Typical installation: desktop or rack-adjacent placement for source distribution

How to use

Connect the HDMI source device (such as a player, computer or media box) to the splitter's HDMI input. Then connect up to four HDMI cables from the splitter's outputs to the displays or projectors. Power the splitter using its supplied adapter and ensure all displays are set to accept HDMI input. The device will mirror the source signal to all connected screens; resolution and refresh rate depend on the capabilities of both the source and the connected displays. Verify display settings on the source device if the desired 4K2K/60Hz output is not achieved.

Recommendations

For consistent 4K2K at 60Hz performance, use high-speed HDMI cables rated for 18 Gbps and ensure the source device and displays support 4K@60Hz. Keep HDMI cable runs within recommended lengths and avoid unnecessary adapters. If displays have differing maximum resolutions, set the source to a resolution compatible with all screens to avoid downscaling or signal loss.
