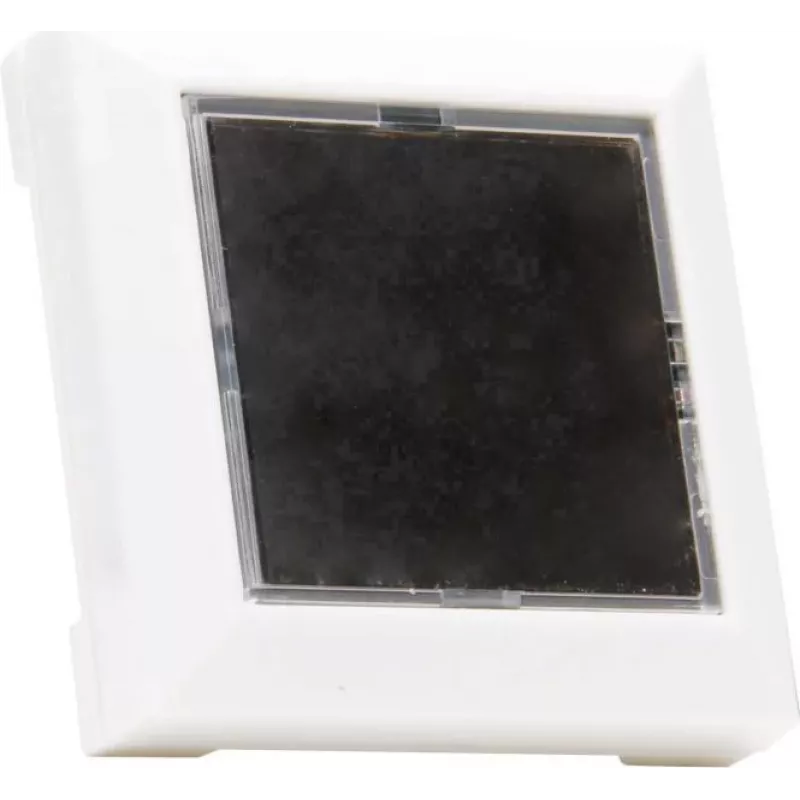

HEINRICH KOPP BC.energieaut.Multi-Sensor Blue-Control Multisenzor biely (8671.0201.5)

Managing indoor climate and lighting efficiently often requires multiple separate sensors and complex wiring. The HEINRICH KOPP Blue-Control Multisensor solves this by combining temperature, humidity, air pressure, CO2, and brightness measurement in one energy-autonomous KNX RF device. It transmits data wirelessly to a KNX system, enabling automated HVAC and lighting control without additional power cables.

Who is it for

This sensor is ideal for building automation professionals and system integrators who need reliable environmental data for KNX installations in offices, residential buildings, or commercial spaces. It suits projects where wiring is difficult or where energy efficiency and air quality monitoring are priorities.

Main features

• Five sensors in one: temperature, humidity, air pressure, CO2, and brightness
• Energy-autonomous operation via integrated solar cell with rechargeable lithium-ion battery buffer
• KNX RF (Radio Frequency) communication on 868.3 MHz, compatible with KNX S-Mode
• Surface-mounted design in white ABS plastic
• Supports HVAC control, lighting control, air quality monitoring, and dew point calculation
• Configuration via ETS (KNX Tool Software)

Specifications

• Temperature measurement range: -20 to +60 °C
• Humidity measurement range: 0 to 100 % RH
• CO2 measurement range: 0 to 2000 ppm
• Brightness measurement range: 0 to 1000 lux
• Air pressure measurement range: 300 to 1100 hPa
• Operating temperature: -5 to +45 °C
• Housing material: ABS plastic
• Protection class: IP20
• Frequency band: 868.3 MHz
• Battery type: integrated rechargeable lithium-ion

Tips

Place the sensor in a location with sufficient ambient light for the solar cell to maintain battery charge. For best CO2 and temperature readings, avoid direct sunlight and heat sources. Use ETS to configure thresholds and integrate the sensor into your KNX logic for automated control.
