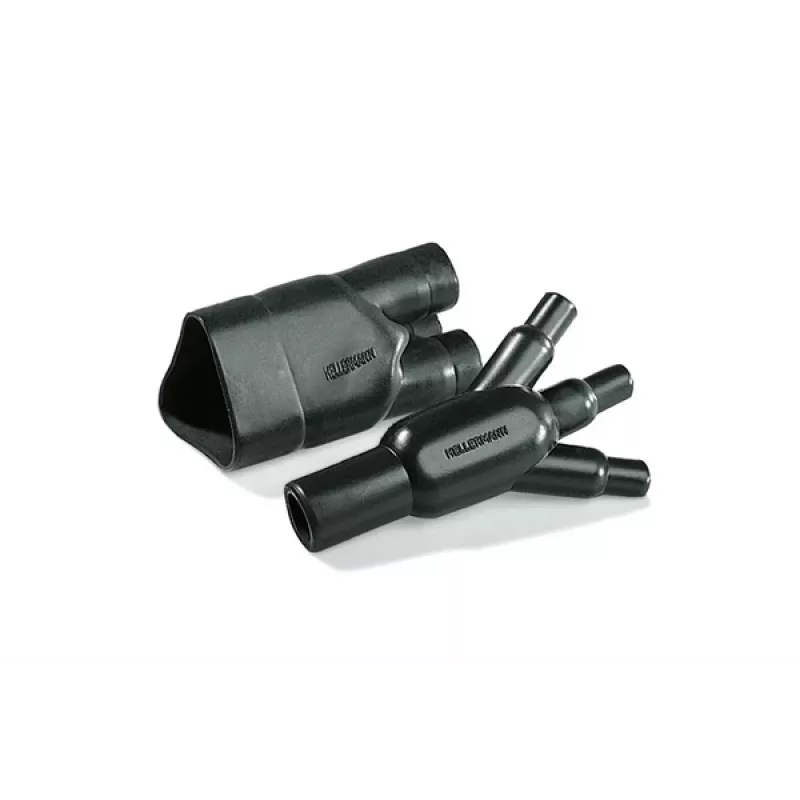

HellermannTyton 403-06180 teplom zmrštiteľný tvarovaný diel 90° topánka, čierna, 2:1, s lepiacou vrstvou

This 90° heat shrink boot from HellermannTyton offers a 2:1 shrink ratio and adhesive lining for environmental sealing and strain relief on cable breakouts.

Overview

The 403-06180 is a heat shrink molded shape designed for 90° cable transitions. Made from cross-linked polyolefin, it provides robust protection against moisture, chemicals, and UV exposure. The adhesive lining ensures a secure, waterproof seal when recovered.

What stands out

• 90° boot shape for right-angle cable routing
• Adhesive lined for reliable sealing
• Flame retardant and self-extinguishing
• Wide operating temperature range: -55°C to +135°C
• UV and chemical resistant

Technical details

• Material: Cross-linked polyolefin
• Shrink ratio: 2:1
• Minimum shrink temperature: +120°C
• Main leg inner diameter (expanded): 12.7 mm
• Main leg inner diameter (recovered): 6.4 mm
• Branch leg inner diameter (expanded): 6.4 mm
• Branch leg inner diameter (recovered): 3.2 mm
• Overall length (recovered): 38.1 mm
• Wall thickness (recovered): 1.5 mm

Our verdict

A durable and reliable solution for sealing 90° cable breakouts in demanding environments.
