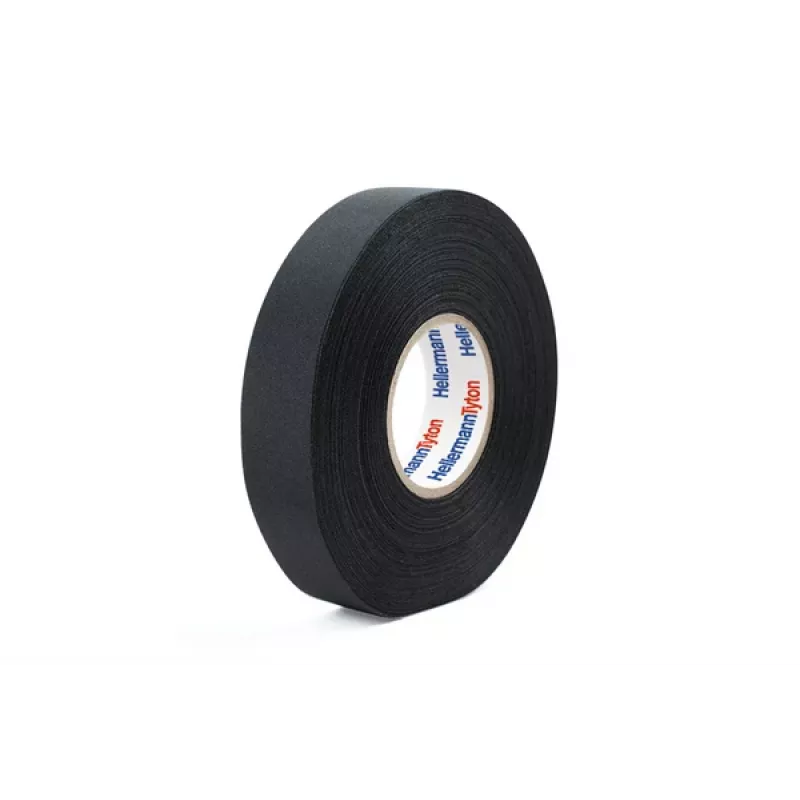

HellermannTyton 712-10003 PVC elektroizolačná páska, čierna, 19 mm x 20 m, kaučukové lepidlo, hrúbka 0,15 mm

With a dielectric strength of 40 kV/mm and a breakdown voltage of 9 kV, this HellermannTyton electrical tape provides reliable insulation for low-voltage applications up to 1 kV. The black PVC tape measures 19 mm wide and 20 m long, with a thickness of 0.15 mm.

Overview

HellermannTyton 712-10003 is a professional-grade electrical insulation tape made from PVC with a rubber-based adhesive. It is designed for electrical insulation, bundling, marking, and protection of cables and components. The tape is flame retardant and self-extinguishing, meeting VDE, IEC 60454-3-1 Type 5, and UL 510 standards.

What stands out

• High dielectric strength: 40 kV/mm
• Breakdown voltage: 9 kV
• Tensile strength: 20 N/10mm
• Elongation at break: 200%
• Flame retardant and self-extinguishing
• Good UV resistance
• Operating temperature range: -10 °C to +90 °C

Technical details

• Tape type: Electrical insulation tape
• Material: PVC (Polyvinyl Chloride)
• Adhesive type: Rubber-based
• Colour: Black
• Width: 19 mm
• Length: 20 m
• Thickness: 0.15 mm
• Dielectric strength: 40 kV/mm
• Breakdown voltage: 9 kV
• Tensile strength: 20 N/10mm
• Elongation at break: 200%
• Operating temperature range: -10 °C to +90 °C
• Application temperature range: 0 °C to +40 °C
• Voltage rating: Up to 1 kV
• Flame retardant: Yes (self-extinguishing)
• UV resistance: Good
• Standards/Approvals: VDE, IEC 60454-3-1 Type 5, UL 510

Our verdict

A robust and versatile electrical tape for professional use, offering strong insulation and durability in demanding environments.
