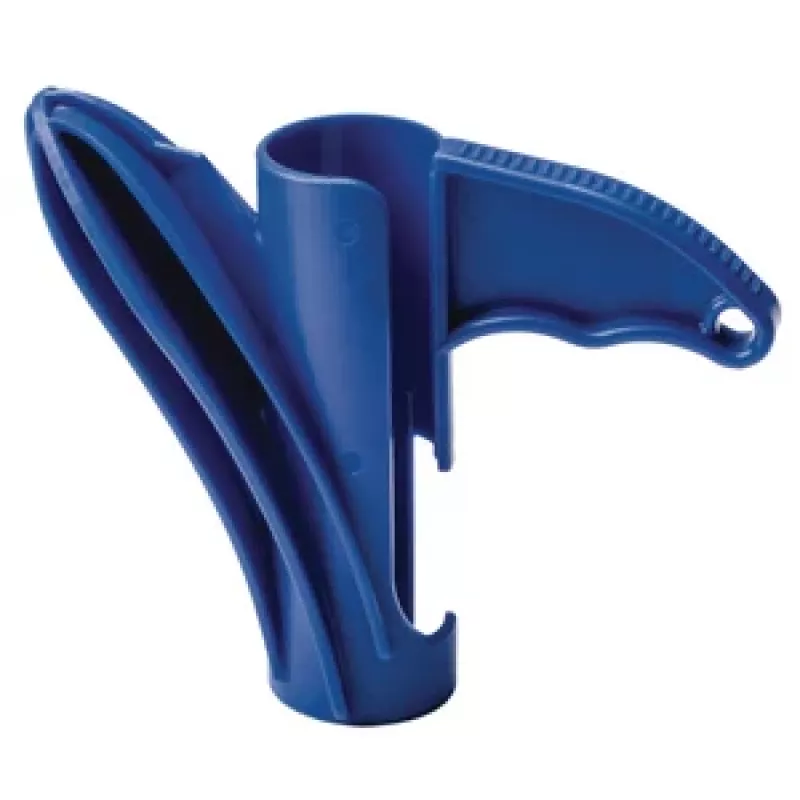

HellermannTyton HAT 20mm PA montážny nástroj (balenie 10 ks) 161-60003

Assembly aid for 20 mm corrugated conduits and cable protection tubes. The HAT tool reduces installation time and effort with its ergonomic design and high mechanical strength.

Advantages

Made from polyamide 6.6 (PA66), the tool offers high stiffness and impact resistance. It withstands operating temperatures from -40 °C to +105 °C and has a UL94 V2 flammability rating. Halogen-free and RoHS compliant.

Suitable for

• Installation of 20 mm corrugated conduits
• Cable protection tube assembly
• Industrial and commercial wiring applications

Key specifications

• Compatible conduit nominal diameter: 20 mm
• Material: Polyamide 6.6 (PA66)
• Colour: Blue
• Pack quantity: 10 pieces
• Operating temperature range: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• Chemical resistance: Good against oils, greases, fuels, alkalis; limited against acids
• RoHS compliance: Yes
• REACH compliance: Yes

Recommendations

Use the HAT tool to speed up conduit installation while ensuring secure connections.
