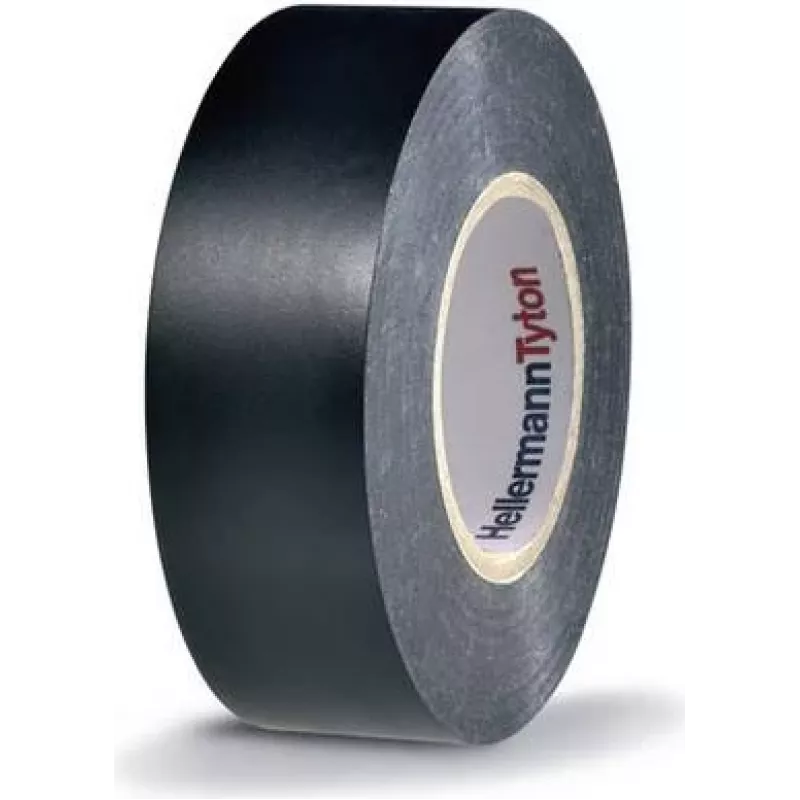

HellermannTyton HTAPE-FLEX15-25x25-PVC-BK elektrická izolačná páska, PVC, čierna, 25 mm x 25 m, hrúbka 0,15 mm 710-00137

Electrical insulating tape made of PVC with rubber-based adhesive, offering reliable insulation and protection for electrical connections. The tape provides good UV resistance and self-extinguishing properties, making it suitable for a wide range of electrical applications.

Advantages

The tape is flexible and conformable, ensuring a tight wrap around wires and cables. It has a high dielectric strength of 6 kV and a voltage rating up to 1 kV, providing effective insulation. The rubber-based adhesive offers strong adhesion to steel and backing, with a value of 2.0 N/10mm, ensuring the tape stays in place. It is self-extinguishing, which enhances safety in case of fire. The tape can be used in temperatures from -10 °C to +90 °C, making it suitable for both cold and moderately hot environments.

Suitable for

• Insulating electrical wires and connections
• Bundling and harnessing cables
• Repairing damaged insulation
• Marking and colour-coding

Key specifications

• Tape type: Electrical insulating tape
• Material: PVC (Polyvinyl Chloride)
• Colour: Black
• Width: 25 mm
• Length: 25 m
• Thickness: 0.15 mm
• Adhesive type: Rubber-based
• Dielectric strength: 6 kV
• Operating temperature: -10 °C to +90 °C
• Application temperature: -5 °C to +40 °C
• Tensile strength: 20 N/10mm
• Elongation at break: 180 %
• Adhesion to steel: 2.0 N/10mm
• Adhesion to backing: 2.0 N/10mm
• Flame retardancy: Self-extinguishing
• UV resistance: Good
• Voltage rating: Up to 1 kV
• Number of rolls: 1

Recommendations

For best results, apply the tape at temperatures between -5 °C and +40 °C. Ensure surfaces are clean and dry before application. Stretch the tape slightly while wrapping to achieve a tight, secure insulation.
