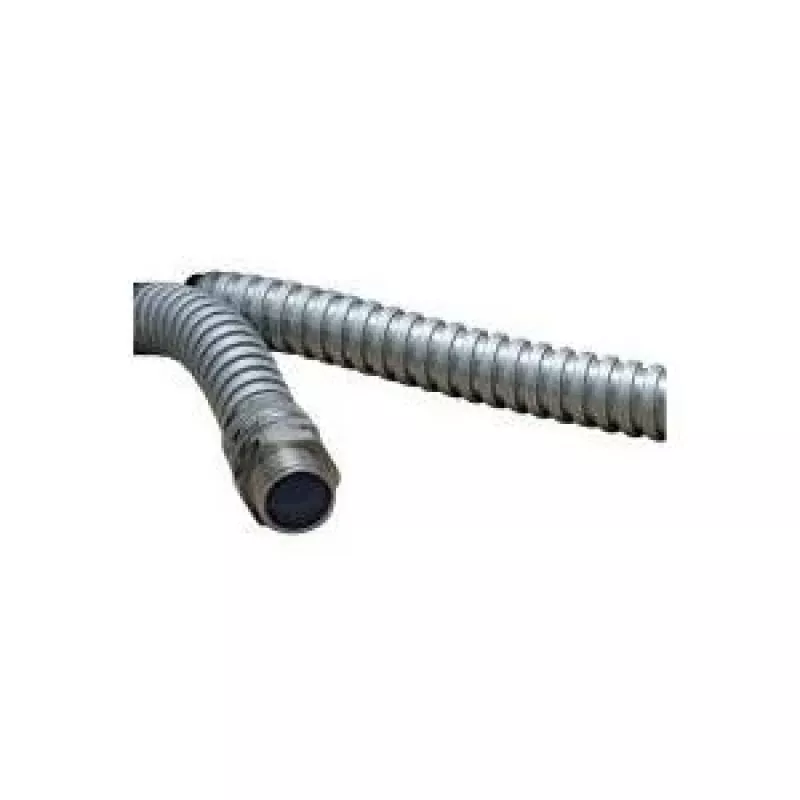

HellermannTyton SC10-GS-ML pozinkovaná tuhá oceľová rúra (GRC) 10 mm x 3 m, oceľ, EN 61386-21, interiér & exteriér 166-30110

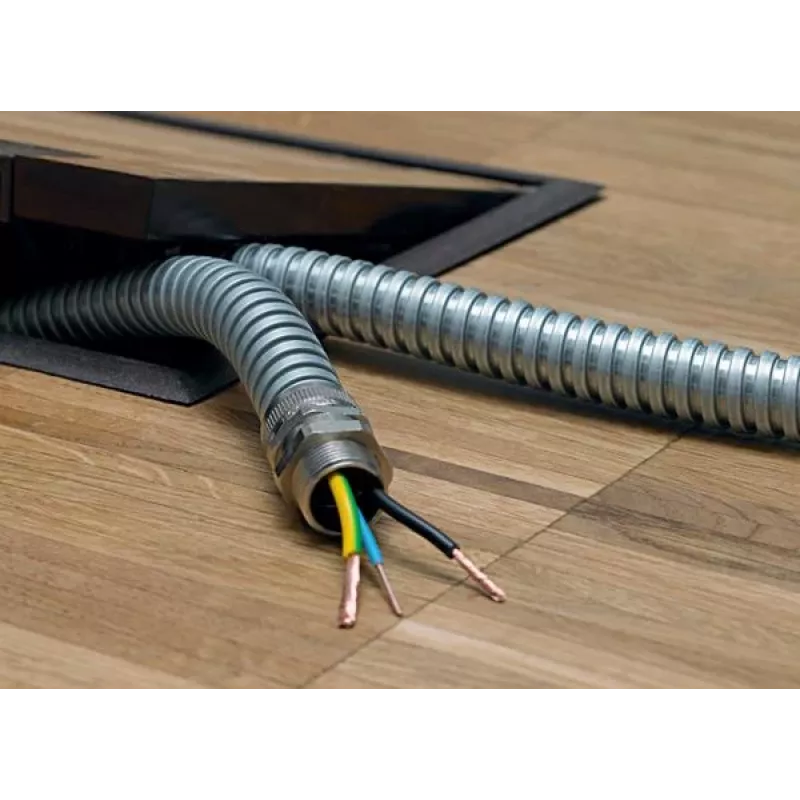

Rigid metal conduit (RMC) made of hot-dip galvanized steel, providing robust mechanical protection for cables in indoor and outdoor environments. Its high corrosion resistance and wide temperature range from -45°C to +400°C ensure reliable performance in demanding applications.

Advantages

Hot-dip galvanized surface offers excellent corrosion resistance and UV stability. The conduit provides electrical continuity and shielding, and achieves IP67 protection when installed with appropriate fittings. Compliant with EN 61386-21, it meets compression and impact strength Class 3 (Medium).

Suitable for

• Industrial and commercial cable routing
• Outdoor installations exposed to weather
• Areas requiring mechanical protection
• Applications with high temperature fluctuations

Key specifications

• Type: Rigid Metal Conduit (RMC)
• Material: Steel, hot-dip galvanized
• Outer diameter: 10 mm
• Length: 3 m
• Weight per meter: 0.22 kg/m
• Temperature resistance: -45°C to +400°C
• Ingress protection: IP67 (with appropriate fittings)
• Standard compliance: EN 61386-21
• Compression strength class: Class 3 (Medium)
• Impact strength class: Class 3 (Medium)

Recommendations

Compatible with HellermannTyton GRC fittings for a complete conduit system. For outdoor use, ensure proper sealing with IP67-rated fittings.
