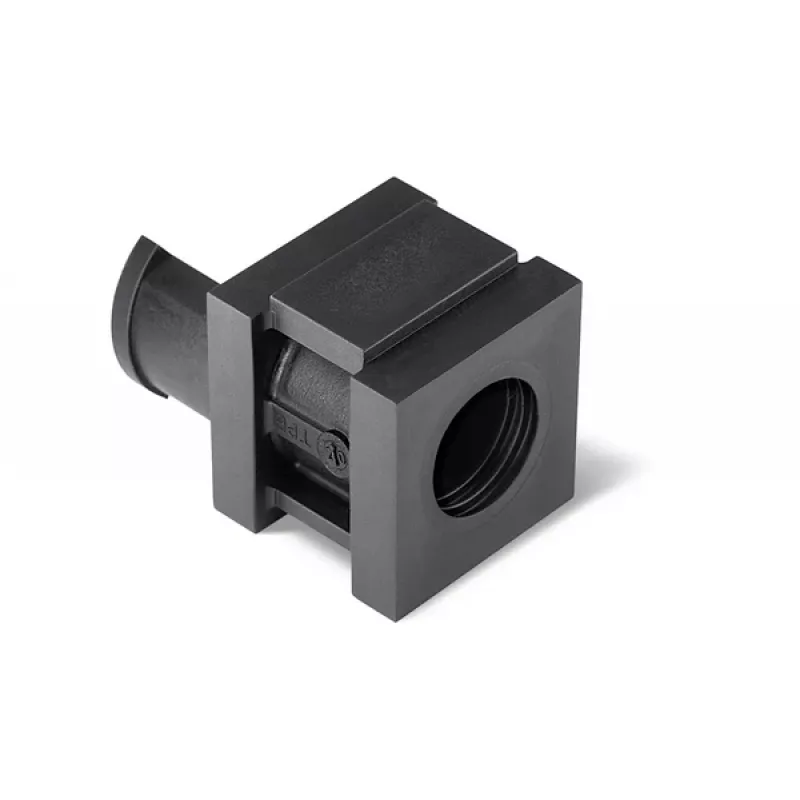

HellermannTyton VP-S jednotlivá priechodka, bezhalogénový TPE, čierna, 20 kusov 440-00014

Single grommet for insulating and protecting cables passing through panels. The halogen-free thermoplastic elastomer construction provides reliable edge protection and prevents cable chafing.

Advantages

Halogen-free material reduces toxic smoke in case of fire. UL94 V0 flammability rating ensures self-extinguishing properties. Wide operating temperature range from -40 °C to +100 °C.

Suitable for

• Panel thickness 1.2 - 1.3 mm
• Mounting hole diameter 18.0 mm
• Cables up to 10.0 mm diameter

Key specifications

• Material: Thermoplastic Elastomer (TPE)
• Colour: Black
• Halogen-free: Yes
• Flammability rating: UL94 V0
• Operating temperature: -40 °C to +100 °C
• Panel thickness: 1.2 - 1.3 mm
• Mounting hole diameter: 18.0 mm
• Inner diameter: 10.0 mm
• Outer diameter: 20.0 mm
• Height: 10.0 mm
• Pack quantity: 20 pieces

Recommendations

Ideal for cable management in control cabinets and electrical enclosures where halogen-free materials are required.
