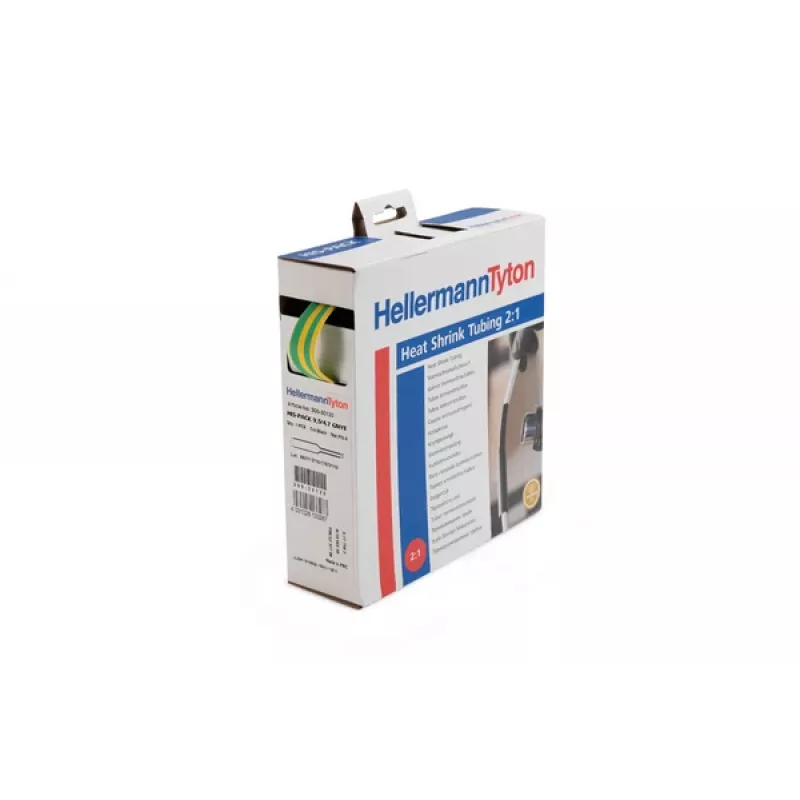

HellermannTyton zmršťovacia bužírka box transparentná 9,5 mm x 4,7 mm x 5 m (HIS-PACK-9,5/4,7-CL) 300-30953

Electrical insulation and cable bundling often require a reliable, easy-to-use solution that provides mechanical protection and strain relief. This heat shrink tubing box from HellermannTyton offers a convenient dispenser format with 5 meters of transparent polyolefin tubing, ideal for professional electricians and DIY enthusiasts alike.

Who is it for

Designed for anyone needing to insulate electrical connections, bundle cables, or provide mechanical protection in a variety of environments. The transparent tubing allows visual inspection of the underlying connection, making it suitable for applications where clarity is important.

Main features

• Cross-linked polyolefin material with 2:1 shrink ratio
• Pre-shrink inner diameter: 9.5 mm; post-shrink inner diameter: 4.7 mm
• Length: 5 m in a convenient dispenser box
• Transparent colour for easy inspection
• Operating temperature range: -55 °C to +125 °C
• Dielectric strength: 20 kV/mm
• Flammability rating: UL224 VW-1 (self-extinguishing)

Specifications

• Product type: Heat shrink tubing
• Material: Cross-linked polyolefin
• Shrink ratio: 2:1
• Pre-shrink inner diameter: 9.5 mm
• Post-shrink inner diameter: 4.7 mm
• Length: 5 m
• Colour: Transparent
• Minimum shrink temperature: +90 °C
• Operating temperature range: -55 °C to +125 °C
• Dielectric strength: 20 kV/mm
• Flammability rating: UL224 VW-1 (self-extinguishing)
• Tensile strength: 10.4 MPa
• Recovered wall thickness: 0.51 mm
• Packaging type: Dispenser box

Tips

For best results, use a heat gun to evenly apply heat around the tubing until it conforms tightly to the underlying object. Avoid overheating to prevent damage.
