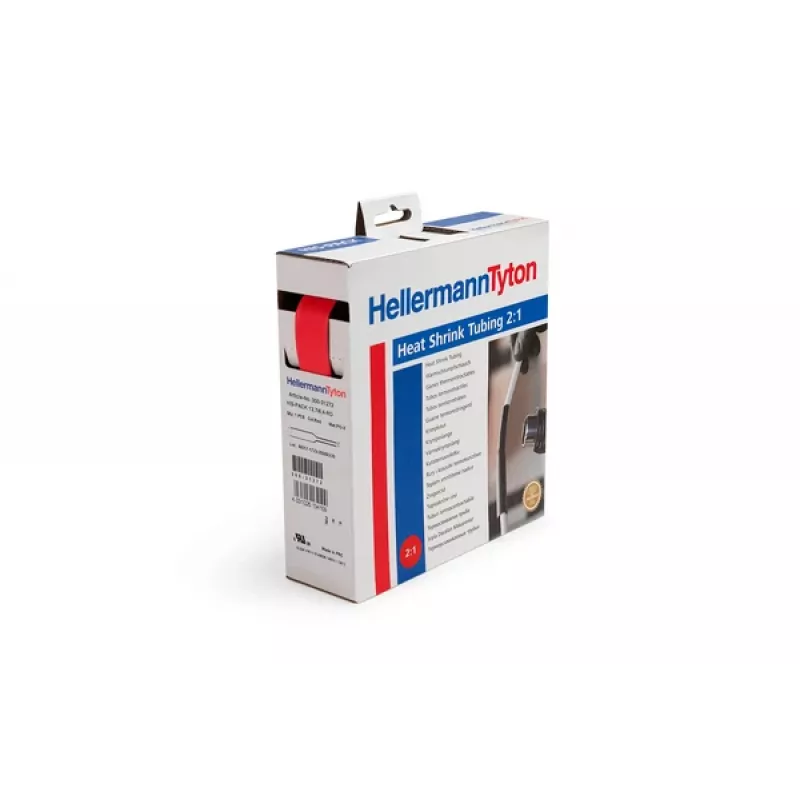

HellermannTyton zmršťovacia bužírka sada HIS-PACK-9.5/4.7-RD, červená, 9,5 mm rozšírený priemer, 4,7 mm zmenšený priemer, 5 m dĺžka, polyolefín, 2:1 zmršťovací pomer, dávkovač box 300-30952

This heat shrink tubing kit stands out with its convenient dispenser box, making it easy to store and dispense the 5-meter length of red polyolefin tubing. The 2:1 shrink ratio and wide operating temperature range from -55°C to +125°C ensure reliable insulation and protection for electrical connections.

Highlights

• Supplied diameter: 9.5 mm, recovers to 4.7 mm for a snug fit
• Halogen-free polyolefin material for safer use in confined spaces
• UL224 and CSA C22.2 No. 198.1 approved for quality assurance
• Dielectric strength of 20 kV/mm provides excellent electrical insulation

In daily use

Ideal for electrical insulation, mechanical protection, cable bundling, and color coding. The red color aids in identification, while the tubing shrinks at a minimum temperature of +90°C, allowing for quick installation with a heat gun. The dispenser box keeps the tubing organized and tangle-free.

Full specifications

• Material: Polyolefin (PO-X)
• Shrink ratio: 2:1
• Supplied diameter: 9.5 mm
• Recovered diameter: 4.7 mm
• Length: 5 m
• Colour: Red
• Operating temperature range: -55°C to +125°C
• Minimum shrink temperature: +90°C
• Dielectric strength: 20 kV/mm
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV resistance: No
• RoHS compliant: Yes
• Packaging type: Dispenser box
• Standards/approvals: UL224, CSA C22.2 No. 198.1

Final note

A reliable choice for professionals needing consistent, high-quality heat shrink tubing in a convenient dispenser format.
