HENSEL káblová spojovacia krabica – sivá (RAL 7035) – DK 2500 G – IP66 – 5-pólová – 20 A – 690 V

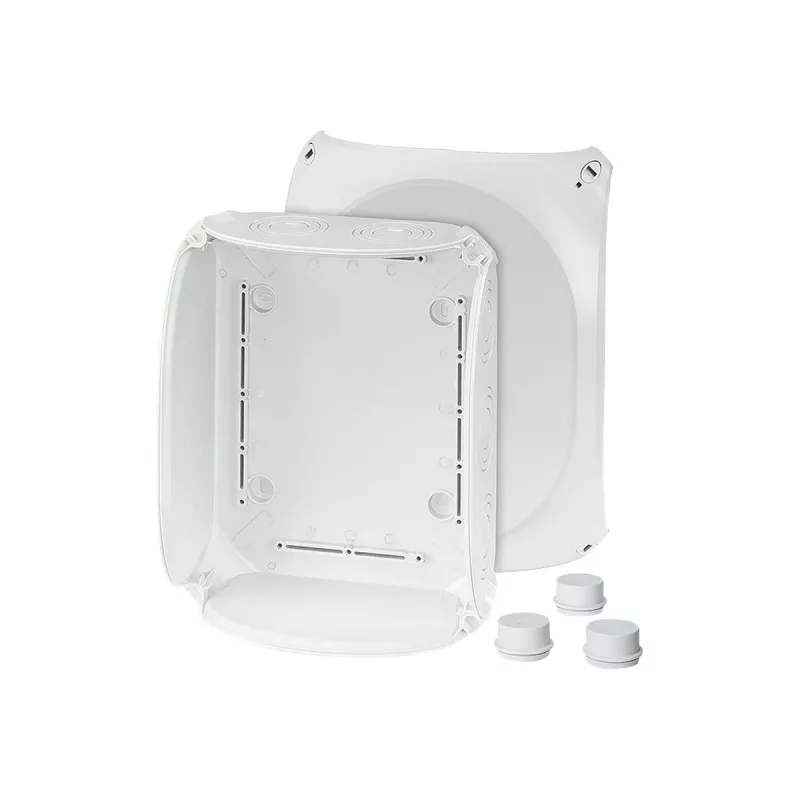

The HENSEL DK 2500 G cable connection box is a high-quality junction box designed for reliable electrical connections in demanding environments. Manufactured by HENSEL PERFORMING LIGHT, this box features a robust polycarbonate housing with a grey (RAL 7035) finish, providing excellent durability and protection. With an IP66 rating, it is dust-tight and protected against powerful water jets, making it suitable for outdoor and industrial applications.

Advantages

This connection box offers easy installation with screw terminals and multiple cable entry options. Its halogen-free material ensures safety in case of fire, while the IK07 impact resistance protects against mechanical damage. The wide ambient temperature range (-25 °C to +40 °C) allows use in various climates.

Suitable for

• Electrical installations in industrial, commercial, and residential buildings
• Outdoor lighting and power distribution
• Connection of cables in harsh environments requiring high ingress protection

Key specifications

• Material: Polycarbonate
• Colour: Grey (RAL 7035)
• Protection Class: IP66
• Rated Insulation Voltage (Ui): 690 V
• Rated Operational Voltage (Ue): 400 V
• Rated Current: 20 A
• Number of Poles: 5-pole
• Terminal Cross-Section: 2.5 mm² (max. 2 x 2.5 mm² per pole)
• Terminal Type: Screw terminals
• Cable Entries: 6 elastic entries M20, 2 knock-out entries M20/M25
• Mounting Type: Surface mounted
• Halogen-free: Yes
• Impact Resistance (IK Code): IK07
• Ambient Temperature Range: -25 °C to +40 °C
• Glow Wire Test: 750 °C
• Lid Type: Opaque
• Standards: DIN EN 60670-22

Recommendations

For optimal performance, ensure proper cable gland selection matching the M20 entries. This box is ideal for use with HENSEL cable connectors and accessories.
