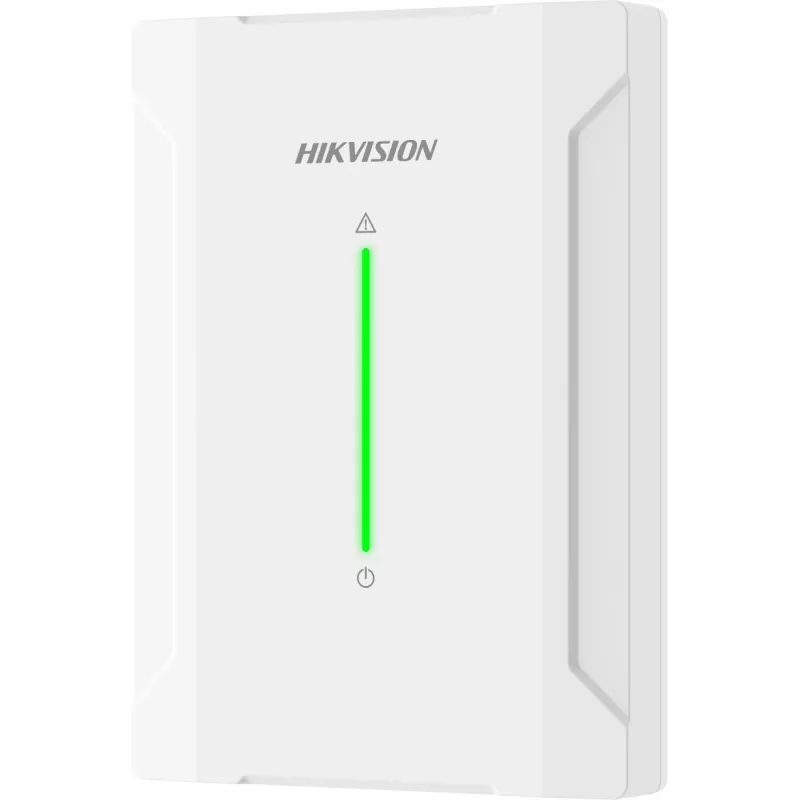

Hikvision AX Hybrid PRO DS-PM501Z8T4 Zbernicový expandér, 8 zón, 4 výstupy PGM

The Hikvision AX Hybrid PRO DS-PM501Z8T4 is a bus expander module for AX HYBRID PRO security systems. It adds 8 input zones for detectors, 4 of which are programmable as PGM outputs for controlling various devices. It supports connection of third-party detectors and includes an integrated bus extender that extends the range and increases communication stability on the RS-485 bus between the main panel and connected modules.

Key features

• 8 input zones for detectors
• 4 zones programmable as PGM outputs
• Supports third-party detectors
• One power output (12V/500mA)
• Integrated bus extender for RS-485
• Complies with European standard for medium-risk security systems
• For indoor use in normal environmental conditions

Specifications

• Brand: Hikvision
• MPN: DS-PM501Z8T4
