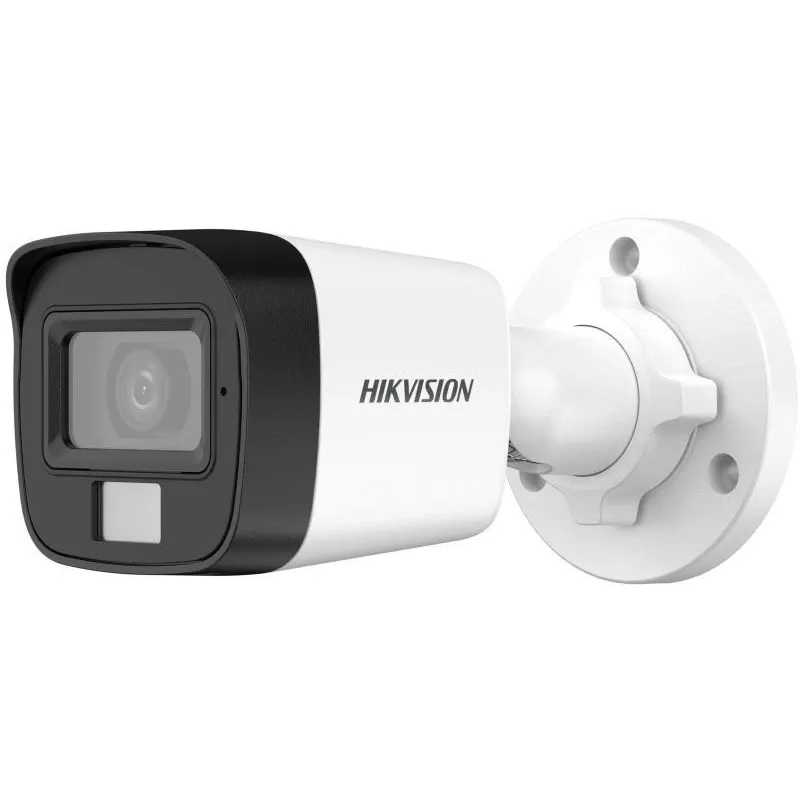

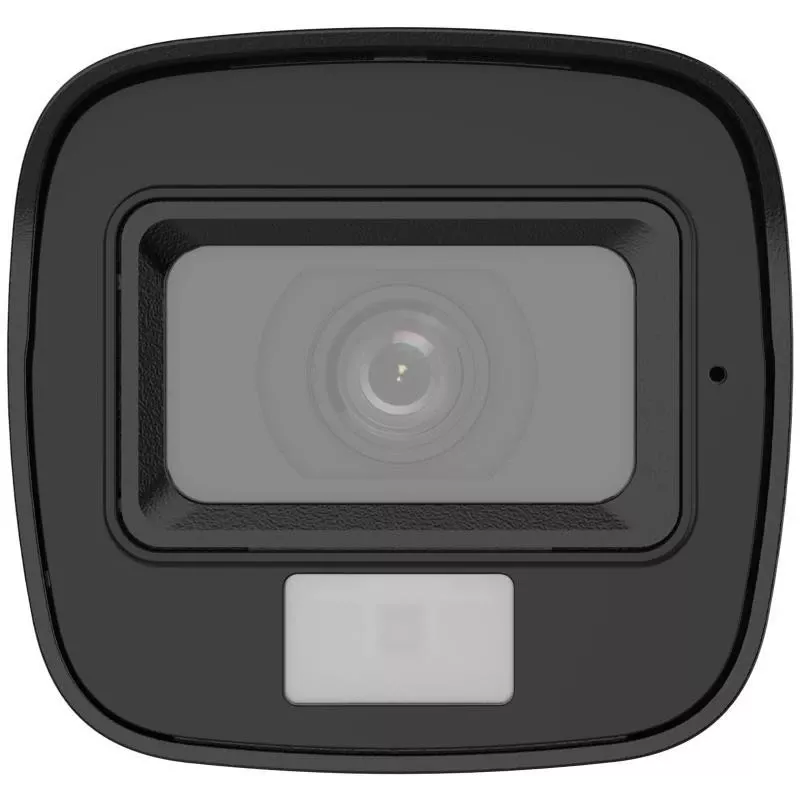

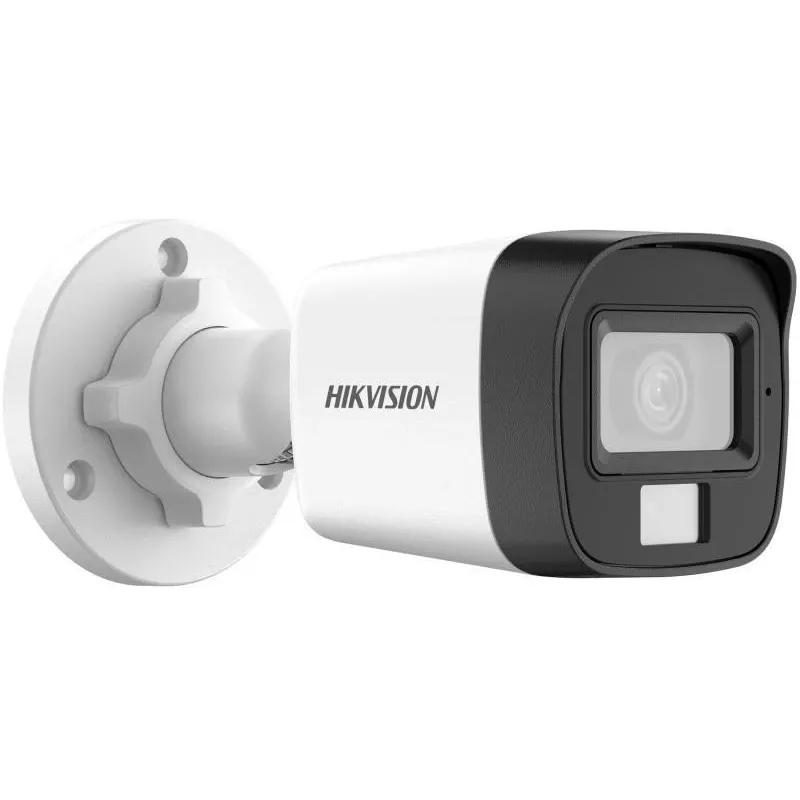

Hikvision DS-2CE16D0T-LPFS(2.8mm) 2MP IR mini bullet kamera, 4-in-1 video výstup, IP67

The Hikvision DS-2CE16D0T-LPFS(2.8mm) is a high-performance 2MP IR mini bullet camera designed for reliable surveillance in various indoor and outdoor environments. Featuring a 2.8mm fixed lens with a wide 101° horizontal field of view, this camera delivers clear 1920x1080 resolution video. With 4-in-1 video output (TVI/AHD/CVI/CVBS switchable), it offers flexible integration with existing systems. The built-in IR LEDs provide up to 20m night vision, ensuring 24/7 monitoring. Its IP67 weatherproof rating and wide operating temperature range (-40°C to 60°C) make it suitable for harsh conditions. The camera supports digital WDR and 2D DNR for enhanced image quality in challenging lighting.

Advantages

This camera combines compact design with robust performance. The 2.8mm lens provides a wide viewing angle ideal for corridors, entrances, and small rooms. The 4-in-1 output allows easy switching between analog and HD formats without replacing the entire system. With low power consumption (max 2.2W) and durable metal front cover, it offers long-term reliability.

Suitable for

• Retail stores and shops
• Office entrances and hallways
• Residential outdoor surveillance
• Warehouse and storage areas
• Parking lots and garages

Key specifications

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 × 1080
• Lens: 2.8 mm fixed focal
• Field of View: H: 101°, V: 56°, D: 118°
• Video Output: 4-in-1 (TVI/AHD/CVI/CVBS)
• IR Range: Up to 20 m
• Min. Illumination: 0.01 Lux (F1.2, AGC ON), 0 Lux with IR
• Day/Night: ICR
• Digital WDR: Yes
• Noise Reduction: 2D DNR
• Protection: IP67
• Power Supply: 12 VDC ± 25%
• Power Consumption: Max. 2.2 W
• Operating Temperature: -40 °C to 60 °C
• Material: Metal (front cover), Plastic (main body)
• Camera Type: Mini Bullet

Recommendations

For optimal performance, use a regulated 12VDC power supply. Ensure proper cable connections for 4-in-1 output selection. This camera is ideal for users seeking a cost-effective, high-quality analog HD solution with night vision and weather resistance.
