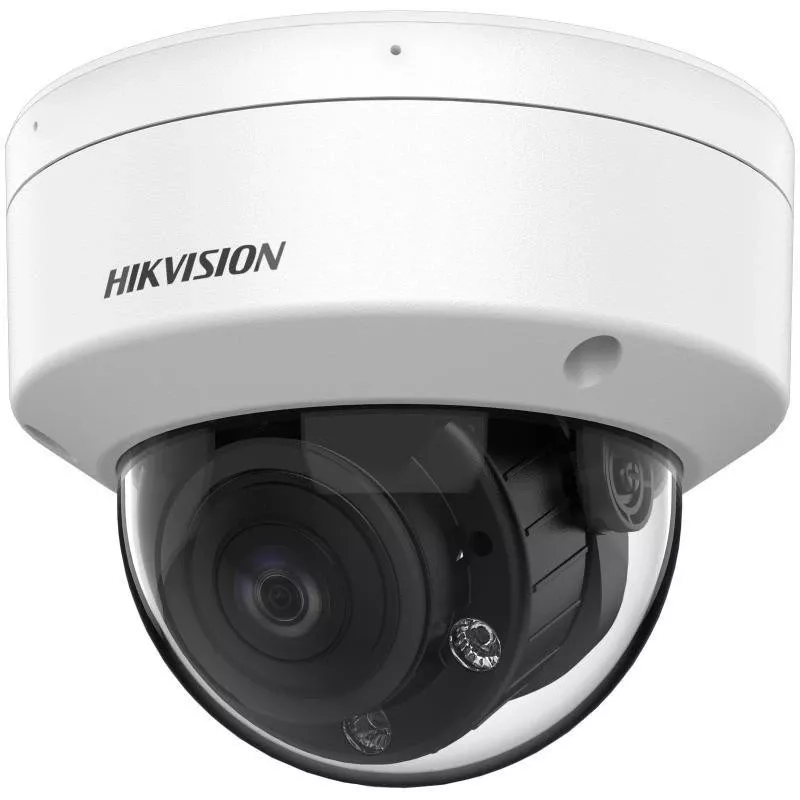

Hikvision DS-2CE50DF3T-VPLSZE(2.8-12mm) 2MP Turbo HD kamera, motorizovaný zoom

The Hikvision DS-2CE50DF3T-VPLSZE(2.8-12mm) is a 2 MP Turbo HD camera with a motorized zoom lens. It features a 2 MP CMOS sensor and delivers a maximum resolution of 1920 × 1080. The camera supports IR and white light illumination up to 60 m, and is housed in a metal casing with IP67 and IK10 protection.

Key features

• 2 MP CMOS sensor
• Motorized zoom lens 2.8 mm to 12 mm
• IR and white light illumination up to 60 m
• Smart, IR, white light supplement
• 120 dB WDR, BLC, HLC, Global, HLS
• 3D DNR, 4 programmable privacy masks
• 4 programmable motion detection areas
• IP67 and IK10 protection

Specifications

• Model: DS-2CE50DF3T-VPLSZE(2.8-12mm)
• Image sensor: 2 MP CMOS
• Max. resolution: 1920 (H) × 1080 (V)
• Min. illumination: 0.0005 lux @ (F1.28, AGC ON), 0 lux with white light
• Day and night: ICR
• Camera adjustment: Pan: 0 to 355°, tilt: 0 to 75°, rotate: 0 to 355°
• Signal system: PAL/NTSC
• Shutter time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Lens type: 2.8 mm to 12 mm motorized
• Focal length and field of view: Horizontal FOV: 106° to 32°, vertical FOV: 56° to 18°, diagonal FOV: 127° to 37°
• Lens mount: Φ14
• Pickup distance: Up to 5 m
• Quantity: 1
• Supplement light type: Smart, IR, white light
• Supplement light range: IR: up to 60 m, white light: up to 60 m
• Image parameter switching: STD/HIGH-SAT/HIGHLIGHT
• Image settings: Brightness, contrast, sharpness, anti-banding, AGC
• Frame rate: TVI: 1080p @30 fps, 1080p @25 fps
• Day/night mode: Auto/color
• WDR: ≥130 dB
• Image enhancement: WDR, BLC, HLC, Global, HLS
• Privacy mask: 4 programmable privacy masks
• Noise reduction: 3D DNR
• White balance: Auto, manual
• Video output: 1 analog HD output
• Alarm: Solid light alarm (white light)
• Motion detection: 4 programmable motion areas
• Power: 12 VDC ±25%/PoC.at, max. 7.4 W
• Material: Metal
• Dimensions: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
• Weight: Approx. 570 g (1.26 lb)
• Operating conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English
• Protection: IP67, IK10
