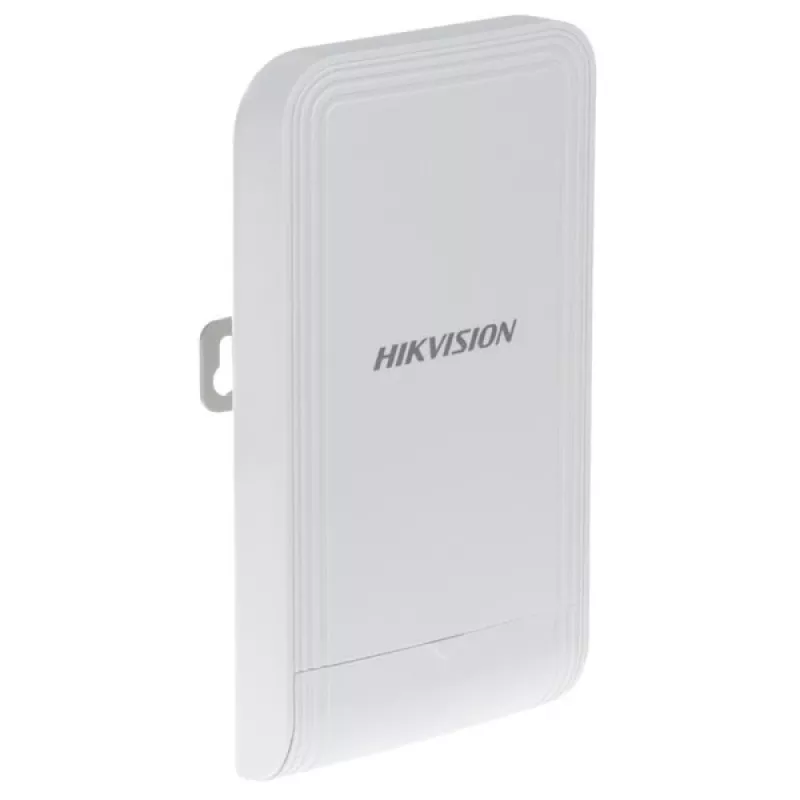

Hikvision DS-3WF3000S-EI-5AC/P bezdrôtový most, 5 GHz

The Hikvision DS-3WF3000S-EI-5AC/P is a 5 GHz wireless bridge designed for point-to-point and point-to-multipoint connectivity. It features a pole mount design with IP55 protection and operates on IEEE 802.11 a/n/ac standards.

Key features

• 5 GHz wireless bridge with 8 dBi antenna gain
• Supports IEEE 802.11 a/n/ac
• Pole mount installation
• IP55 protection rating
• PoE power supply
• Multiple management options

Specifications

• Model: DS-3WF3000S-EI-5AC/P
• Product dimensions: 90.8 mm × 187.87 mm × 57.87 mm
• Net weight: 0.26 kg per device
• Operating temperature: –30 °C to 65 °C
• Operating humidity: 5% to 95% (non-condensing)
• Storage temperature: –40 °C to 80 °C
• Storage humidity: 5% to 95% (non-condensing)
• Mounting: Pole mount
• Protection class: IP55
• Power consumption: 2.43 W typical (1-channel 2 MP camera), max. 3.6 W
• Max. transmission speed: ≤ 867 Mb/s
• Wireless standard: IEEE 802.11 a/n/ac
• Operating bands: 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5825 MHz
• Antenna gain: 8 dBi
• Antenna angle: (H) 50°, (V) 50°
• Transmit power: 22 dBm @ 11ac 80 MHz MCS0 (may vary according to local regulations)
• Receiver sensitivity: –84 ± 2 dBm @ AC80-MCS0
• Throughput: PTP: 90 Mb/s / 0.5 km (AC80), 90 Mb/s / 1 km (AC80), 40 Mb/s / 3 km (AC80); PTMP (1 to 4): 20 Mb/s / 3 km (AC80)
• PoE port: PoEAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3af PoE OUT
• PoE budget: 10 W
• PoE distance: 100 m
• Network interface: 2 × RJ45 10/100 Mb/s ports
• LEDs: Power, LAN, signal strength
• Reset: Hardware reset button
• Power supply: 48 V PoE / 12–24 V DC
• Application functions: IFM, IPM, DFS, TPC
• Channel width: 20/40/80 MHz
• Channel selection: Auto/manual
• Security mode: WPA2-PSK
• Security mechanism: Network name hiding
• Network protocols: NTP, SADP, HTTPS/HTTP, SSH
• Management methods: HCP, Web, iVMS-4200, HPP
• System logs: Syslog, management center logs
• Update: Web, iVMS-4200, HCP, HPP
• Hik-Partner Pro functions: Device restart; restore settings; topology view; AP–CPE connection status; Wi-Fi configuration (mode, SSID, password, channel, power); bridge alignment; spectrum scanning; PoE management
• Certifications: EMC: CE-EMC, ICES-003, RCM; Safety: CB, CE-LVD; Chemistry: CE-RoHS, WEEE, REACH; Radio: EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17
