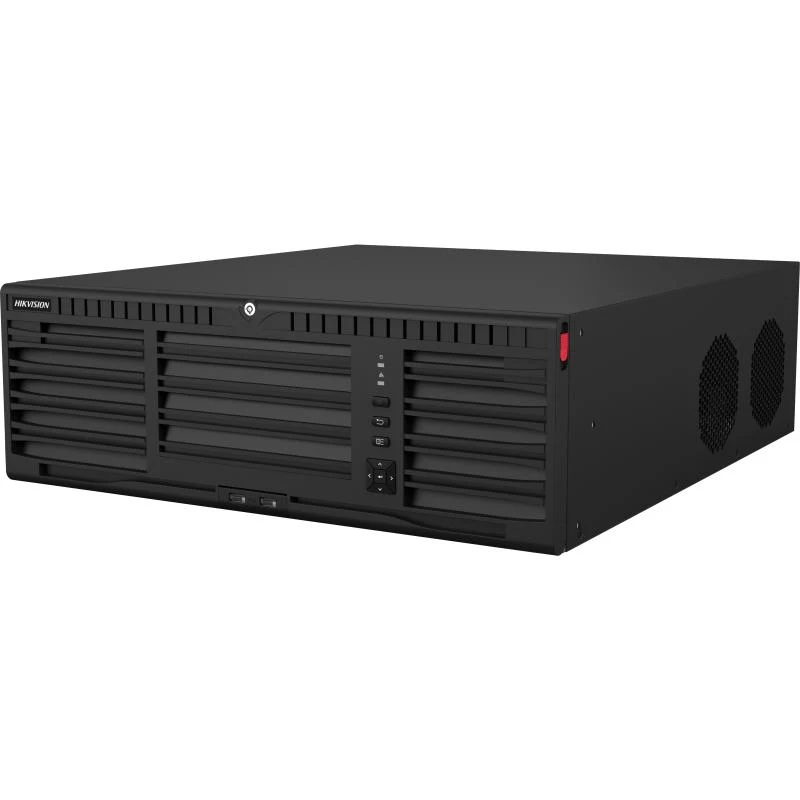

Hikvision DS-9664NI-M16 64-kanálový 8K NVR sieťový videorekordér H.265+ 16 HDD slotov

The Hikvision DS-9664NI-M16 stands out as a high-capacity network video recorder engineered for extensive surveillance systems, offering 64-channel IP video input and support for up to 16 hard drives, making it a robust choice for large-scale installations.

Highlights

• 64-channel IP video input with 320 Mbps incoming bandwidth
• H.265+/H.265/H.264+/H.264 video compression
• 16 SATA interfaces, each supporting up to 10 TB HDD
• RAID0, RAID1, RAID5, RAID6, RAID10 support
• Dual HDMI and VGA outputs, up to 4K resolution

In daily use

This NVR delivers reliable recording and playback for large camera networks. With decoding capability of up to 2-ch@32 MP, it handles high-resolution streams efficiently. The dual network interfaces ensure stable connectivity, while the 16 alarm inputs and 8 outputs allow integration with external sensors and alerts.

Full specifications

• IP Video Input: 64-channel
• Incoming Bandwidth: 320 Mbps
• Outgoing Bandwidth: 256 Mbps
• Video Compression: H.265+/H.265/H.264+/H.264
• Decoding Capability: 2-ch@32 MP (30fps) / 4-ch@12 MP (30fps) / 8-ch@8 MP (30fps) / 16-ch@4 MP (30fps) / 32-ch@1080p (30fps)
• HDMI Output: 2 (up to 4K/30Hz)
• VGA Output: 2 (up to 1080p/60Hz)
• Audio Input: 1-channel, RCA
• Audio Output: 2-channel, RCA
• SATA Interfaces: 16
• Max Capacity per HDD: 10 TB
• RAID Support: RAID0, RAID1, RAID5, RAID6, RAID10
• Network Interface: 2x RJ-45 10/100/1000 Mbps Ethernet
• USB Interface: 2x USB 2.0 (front), 2x USB 3.0 (rear)
• Alarm Input/Output: 16-ch input / 8-ch output
• Power Supply: 100 to 240 VAC
• Power Consumption (without HDD): ≤ 140 W
• Operating Temperature: -10 °C to 55 °C

Final note

The DS-9664NI-M16 is a scalable and resilient recording solution for demanding video surveillance environments.
