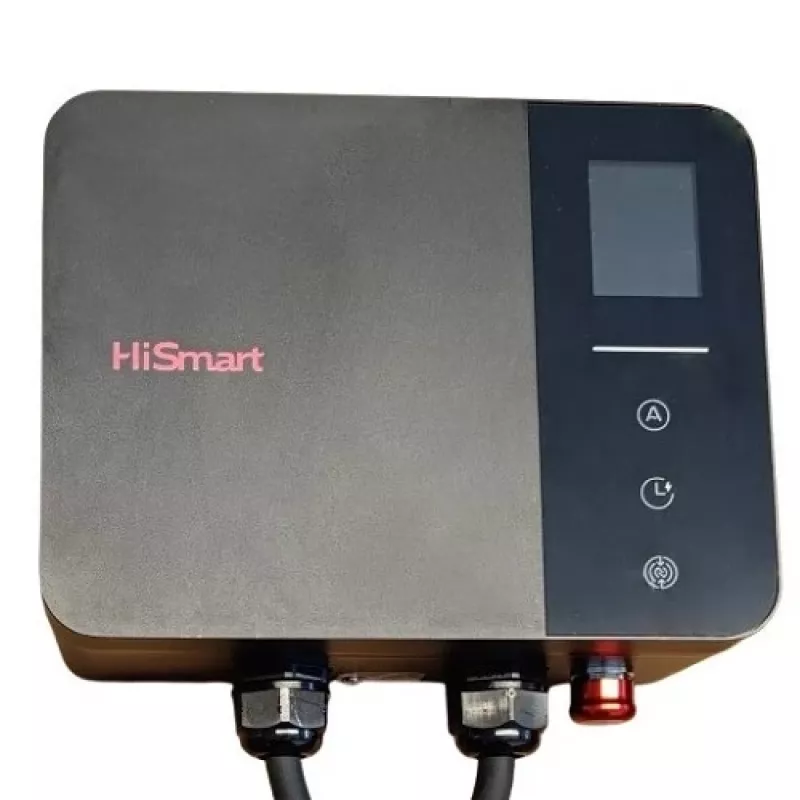

HISMART EV200931 EV nabíjacia stanica Type 2 11kW 16A 3-fázová 5m kábel

Wall-mounted EV charging station delivering 11 kW of three-phase power through a Type 2 connector with a 5-meter cable, ideal for rapid home, workplace, and fleet charging.

Advantages

With 3-phase power delivery and a maximum current of 16 A, this charging station significantly reduces charging times compared to standard single-phase models. The IP54-rated enclosure ensures reliable operation in outdoor and dusty indoor environments. Built-in protection features, including overcurrent, overvoltage, short circuit, and ground fault protection, plus an integrated RCD Type A with 6 mA DC leakage detection, safeguard both the vehicle and the charging infrastructure. The rugged PC/ABS housing resists impact and weathering, ensuring long-term durability.

Suitable for

• Electric car owners who require a fixed, high-power charging point at home
• Commercial parking areas, hotels, and workplace charging stations
• Facility managers needing a dependable, low-maintenance charging solution

Key specifications

• Charging power: 11 kW
• Connector: Type 2 (IEC 62196) with 5 m attached cable
• Input: 400 V AC, 3-phase, 16 A, 50/60 Hz
• Protection rating: IP54
• Operating temperature: -30 °C to +50 °C
• Mounting: wall-mounted
• Housing material: PC/ABS
• Compliance: CE, RoHS

Recommendations

Installation should be carried out by a qualified electrician in accordance with local regulations. Ensure the supply line and circuit breaker are sized correctly for 16 A continuous load.
