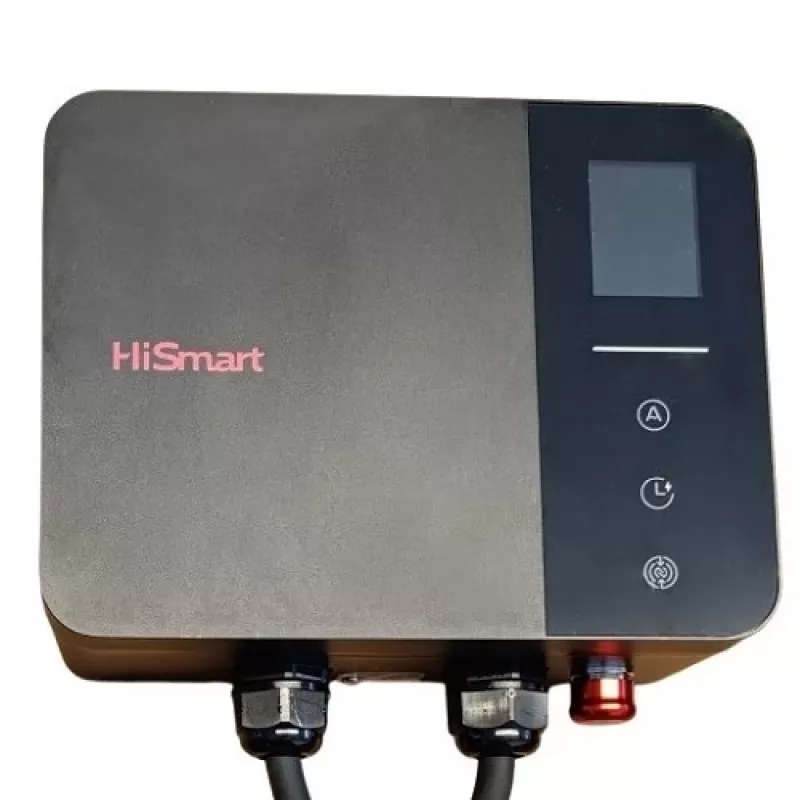

HISMART EV200948 nabíjacia stanica pre elektromobily, Type 2, 22 kW, 32 A, 3-fázová, 5 m

Fleet managers and homeowners with high-capacity charging needs will appreciate the HISMART EV200948, a robust 22 kW three-phase AC charging station. Equipped with a Type 2 connector and a 5-metre tethered cable, it delivers a convenient plug-and-charge experience for virtually all electric vehicles in Europe. Its weatherproof IP54 enclosure and UV-resistant housing ensure long-term reliability in exposed locations, making it ideal for semi-public car parks, office buildings, and private driveways.

Key specifications

• Maximum charging power: 22 kW
• Connector type: Type 2 (IEC 62196-2)
• Maximum output current: 32 A
• Input power: 3-phase, 400V AC, 50/60 Hz
• Cable length: 5 metres
• IP rating: IP54 – protected against dust and splashing water
• Integrated Type A RCD with 6mA DC fault detection
• Housing material: UV-resistant PC/ABS
• Operating temperature: -30°C to +50°C
• Safety protections: overload, short circuit, overvoltage, undervoltage, over-temperature
• Certifications: CE

Why choose it

Built for outdoor endurance, the EV200948 features a weatherproof IP54 enclosure and UV-resistant housing, ensuring long-term reliability in exposed locations. The built-in Type A RCD with DC fault monitoring adds an extra layer of safety, protecting both your vehicle and your electrical installation. Its straightforward design and clear status LEDs make operation intuitive for all users, while the compact footprint allows flexible mounting in a range of environments.

Ideal use cases

• Residential garages and carports
• Office and workplace charging
• Semi-public car parks and fleet depots
• Commercial and retail locations

Good to know

The EV200948 is compatible with all electric vehicles using the Type 2 standard, which covers the vast majority of EVs in Europe. Installation should be performed by a qualified electrician, and the unit can be wall-mounted or pole-mounted depending on site requirements. The integrated RCD and comprehensive protection features ensure safe operation even in demanding conditions.
