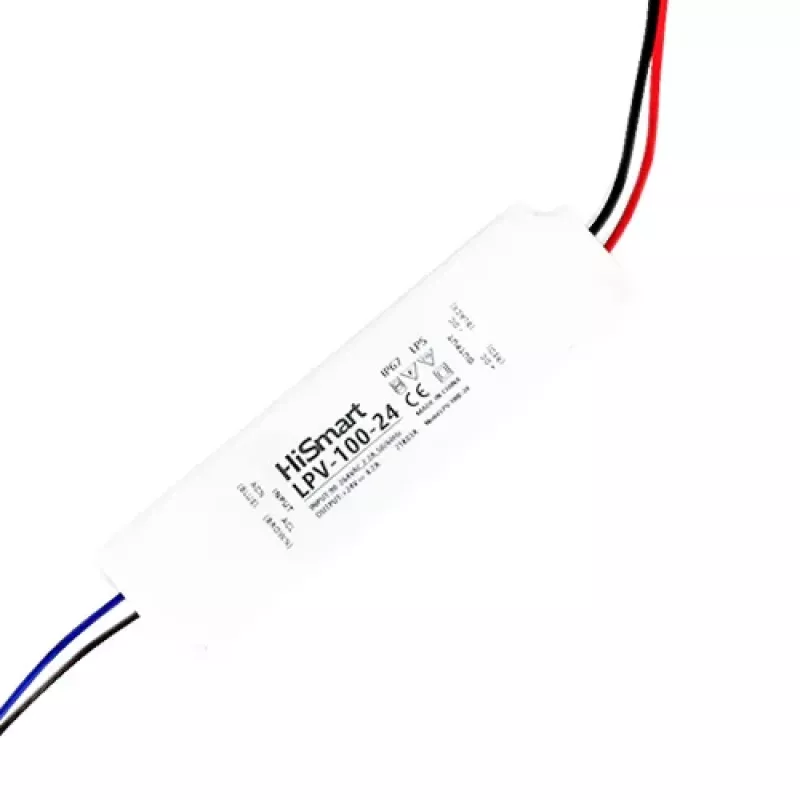

HISMART LPV-100-24 24V 4.2A 100W IP67 napájací zdroj

The HISMART LPV-100-24 is a robust and reliable power supply designed for demanding industrial and outdoor applications. With an output of 24V DC and 4.2A (100W), it provides stable power for LED lighting, signage, and control systems. Its IP67 rating ensures dust-tight and water-resistant performance, making it suitable for harsh environments.

Advantages

High efficiency (>85%) reduces energy loss and heat generation. Active PFC (>0.95) ensures compliance with power quality standards. Comprehensive protection features (overload, over voltage, short circuit, over temperature) safeguard connected equipment. Wide input voltage range (90-264V AC) allows global use.

Suitable for

• LED lighting systems (indoor/outdoor)
• Outdoor signage and displays
• Industrial control systems
• Security and surveillance equipment

Key specifications

• Output: 24V DC, 4.2A, 100W
• Input: 90-264V AC, 47-63Hz
• IP67 rated (dust-tight, temporary immersion)
• Aluminum alloy housing for durability
• Wire lead connections
• Operating temperature: -30°C to +70°C
• Protection: Overload, OVP, SCP, OTP
• Ripple & noise: <150mVp-p
• MTBF: >50,000 hours
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and mounting on a flat surface. Use appropriate wire gauges for the output current. This power supply is ideal for constant voltage LED applications and industrial automation.
