Napájací zdroj 12V, 6,3A, 75W, lišta DIN

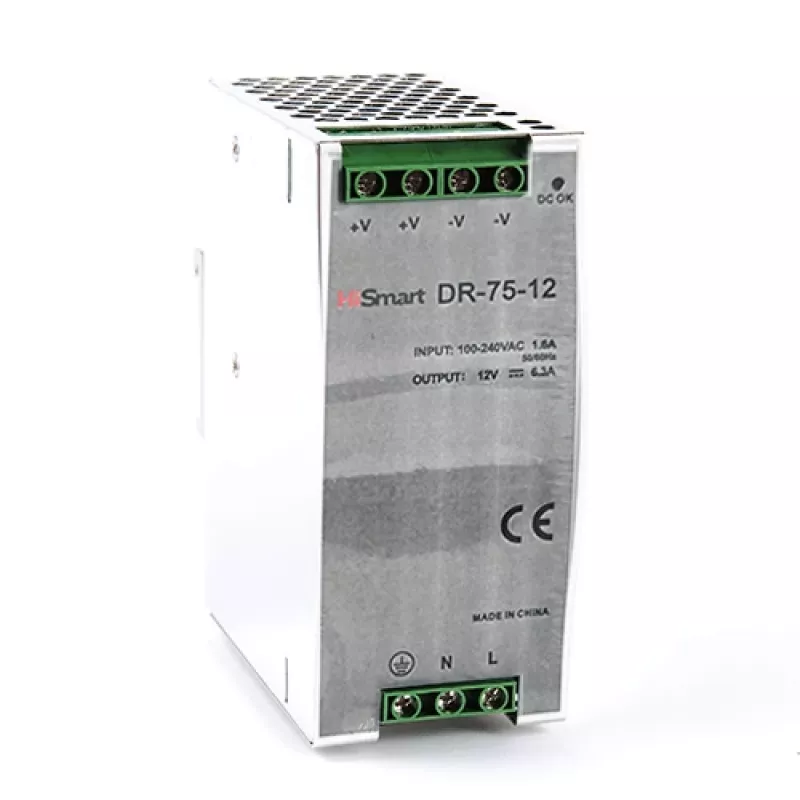

This HISMART power supply delivers a stable 12V DC output with 6.3A current and 75W power, designed for reliable industrial and automation applications. It features a compact DIN rail mountable form factor, high efficiency, and robust protection mechanisms for safe operation in demanding environments.

Key features

• Input voltage range: AC 90-264V, 47-63Hz, with low inrush current (up to 1mA at 240V AC)
• Output: 12V DC, 6.3A maximum, 76W maximum power, adjustable output voltage within -9%/+10%
• Protection: Overload, overvoltage, and short circuit protection for enhanced safety
• Cooling: Free air convection, no fan required for silent operation
• Ripple and noise: 100mV p-p for clean power delivery
• Efficiency: 79% for energy-saving performance
• Operating temperature: -20°C to +60°C, humidity 20%-90% RH; dimensions: 55.5 x 125.2 x 100 mm, weight: 0.6 kg
