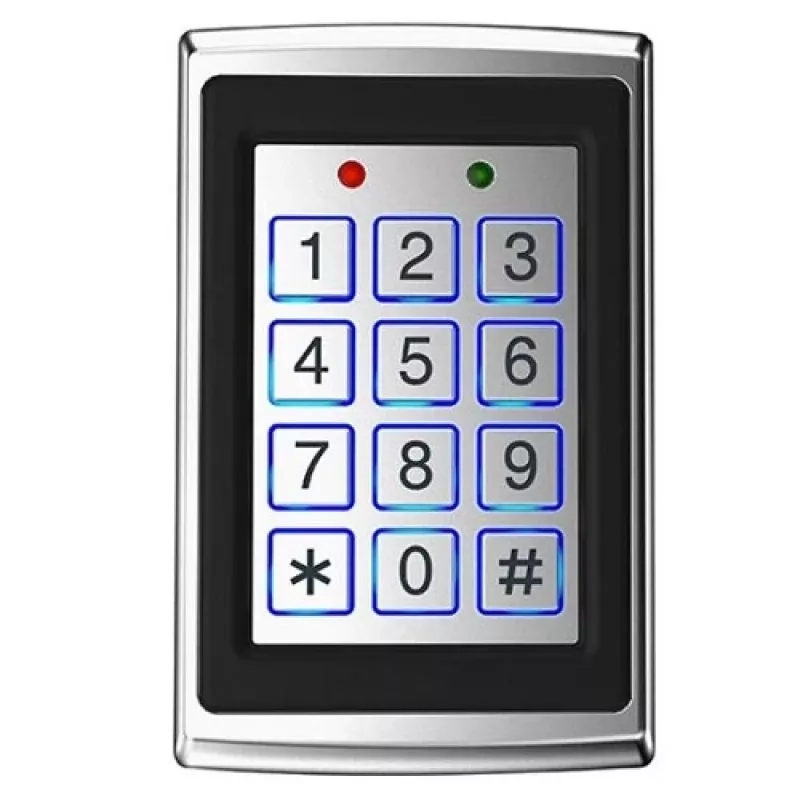

HISMART TV993765 multifunkčná klávesnica s EM čítačkou proximity kariet a integrovaným ovládaním

This standalone access control keypad combines a backlit numeric keypad, a 125 kHz EM proximity card reader, and an integrated controller in a single, compact unit. It supports up to 1,000 users with Card, PIN, or Card+PIN authentication, making it an ideal solution for small offices, retail shops, and residential buildings that need reliable, cost-effective door entry management.

Highlights

• Integrated EM proximity card reader (125 kHz)
• Backlit keypad for PIN entry in low light
• Supports up to 1,000 users (Card, PIN, or Card+PIN)
• 1 x NO/NC relay output for electric lock control
• Wiegand 26-bit input/output for expandability
• IP54-rated housing for indoor and sheltered outdoor use
• Keypad programming – no software required

In daily use

Users can present their EM card, enter a PIN, or use a combination of both. The built-in buzzer and multi-colour LED provide clear audio and visual feedback for every transaction. The door open time is adjustable from 0 to 99 seconds, and the relay can be configured for fail-secure or fail-safe operation. Tamper and door ajar alarms add an extra layer of security. All programming is done directly from the keypad, making installation and management quick and straightforward.

Full specifications

• Product type: Integrated Access Control Keypad
• Card technology: EM-Marin (125 kHz)
• User capacity: Up to 1000 users
• Operating modes: Card Only, PIN Only, Card + PIN
• Output relay: 1 x NO/NC relay
• Wiegand interface: Wiegand 26-bit input/output
• Keypad backlight: Yes
• Housing material: ABS Plastic
• Ingress protection: IP54
• Power supply: DC 12V
• Current draw: <100mA standby, <150mA active
• Operating temperature: -20°C to 60°C
• Adjustable door open time: 0-99 seconds
• Alarm outputs: Tamper alarm, door ajar alarm
• Status indicators: Multi-colour LED (Red/Green/Yellow)
• Audio feedback: Built-in buzzer
• Installation type: Surface mount
• Programming method: Keypad programming

Final note

With its integrated controller and compact design, the HISMART TV993765 is a practical and secure access solution for properties requiring a simple yet powerful entry system.
