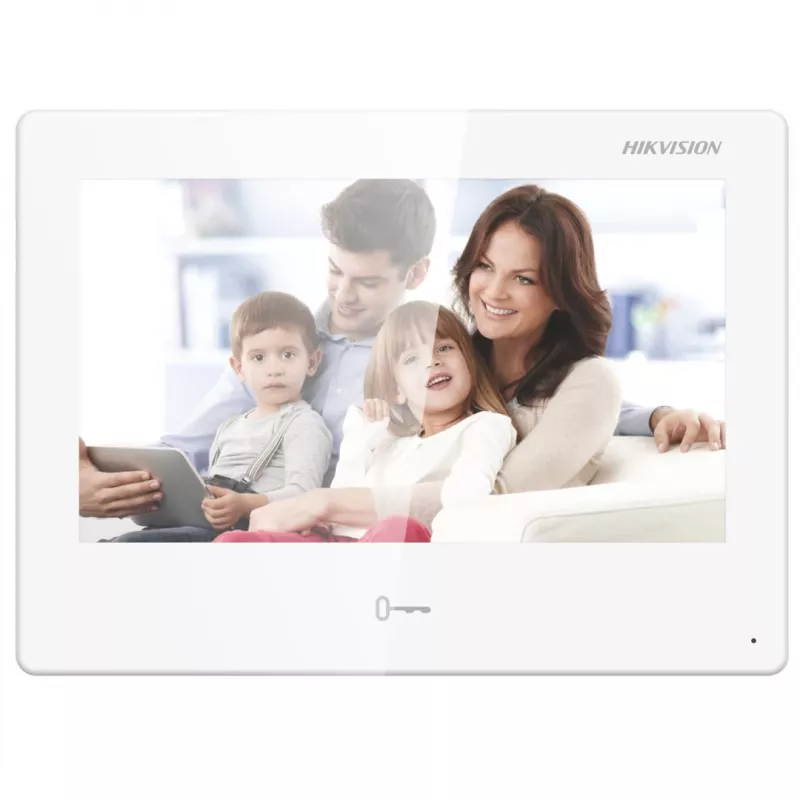

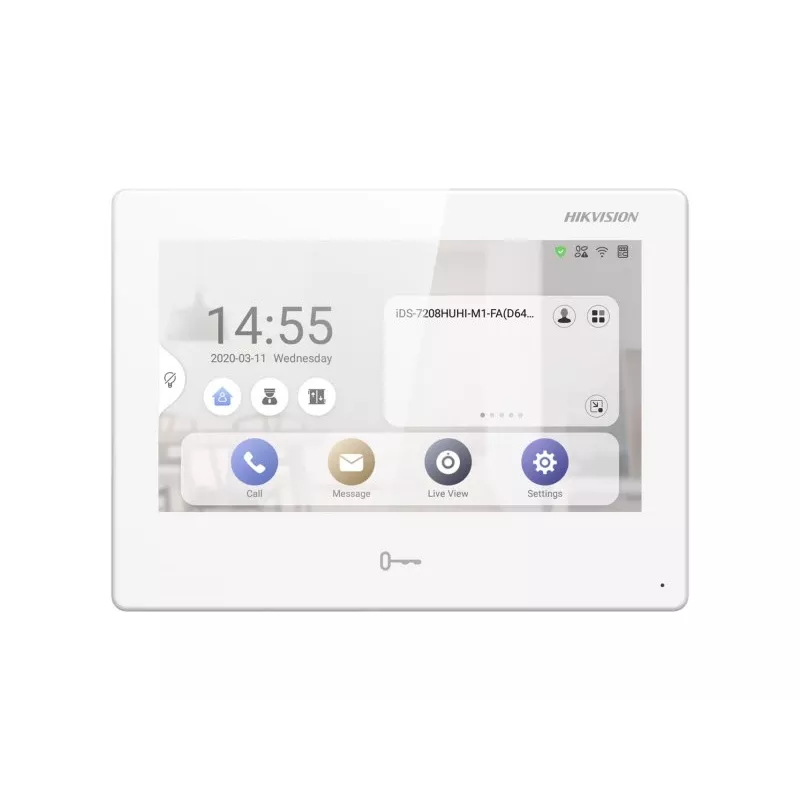

Hlavná stanica Hikvision DS-KH9310-WTE1(B) biela 12V Wi-Fi

The Hikvision DS-KH9310-WTE1(B) White 12V Wi-Fi is a compact master station intended for intercom systems in residential and commercial settings. With dimensions of 187 mm x 137 mm x 25.7 mm and a 12 V DC power input, the unit connects to local networks using Wi‑Fi (802.11b/g/n) or a wired Ethernet link at 10/100 Mbit/s. The device provides a pared-down, space-saving form factor that fits wall- or surface-mounted installations and serves as an interface for audio and visual communication when paired with compatible door stations and access control components.

Advantages

The DS-KH9310-WTE1(B) offers a small footprint and low-voltage operation that simplify installation and integration into existing wiring or network infrastructures. Built-in Wi‑Fi support enables wireless placement where Ethernet cabling is impractical, while 10/100 Mbit/s Ethernet compatibility provides a stable wired option. The unit’s white housing and slim profile allow discreet installation in modern interiors. The product is designed by Hikvision to meet typical intercom functional requirements without unnecessary complexity.

Suitable for

• Residential apartment intercom systems
• Small office entry and visitor management
• Smart home integration and remote monitoring setups
• Refurbishment projects where wall space is limited

Key specifications

• Dimensions: 187 mm x 137 mm x 25.7 mm
• Power input: 12 V DC
• Wireless: IEEE 802.11b/g/n (Wi‑Fi)
• Wired network: Ethernet LAN 10/100 Mbit/s
• Color: White

How to use

Mount the DS-KH9310-WTE1(B) in the desired location, ensuring access to a 12 V DC power source. For wired operation, connect the unit to the local network via an Ethernet cable to a switch or router. For wireless operation, configure Wi‑Fi settings through the on-screen setup or companion software so the master station joins the existing wireless network. Pair the unit with compatible Hikvision door stations and call panels following the vendor setup procedure to enable two-way communication, door release control, and any supported intercom functions.

Recommendations

Place the master station at eye level for user convenience, provide a stable 12 V DC supply and prefer wired Ethernet for mission-critical installations; use Wi‑Fi when cabling is impractical. Ensure firmware is kept up to date and integrate the unit with compatible Hikvision components for full functionality.
