HOLZMANN LSR15HQ navijak na vzduchovú hadicu 15m

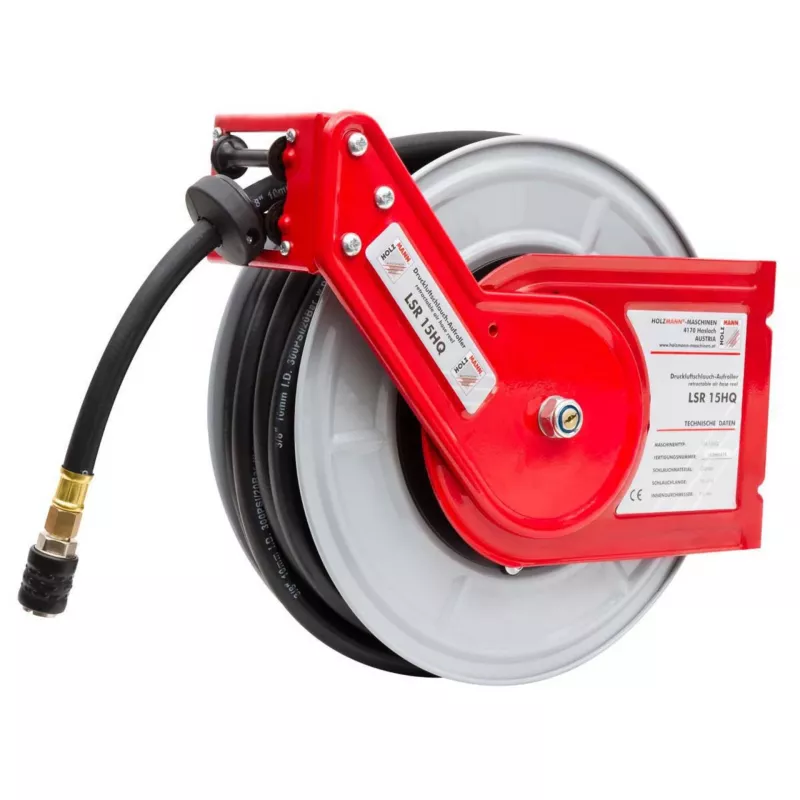

The HOLZMANN LSR15HQ Air Hose Reel is a high-quality automatic rewind hose reel designed for efficient compressed air management in workshops, garages, and industrial environments. With a 15-meter PVC fabric-reinforced hose and a robust polypropylene housing, this wall-mounted reel offers durability and convenience. The multi-position ratchet lock allows you to lock the hose at any desired length, while the swiveling bracket provides 180° flexibility for optimal positioning.

Advantages

Automatic rewind ensures quick and tangle-free hose storage. The adjustable hose stopper lets you set the retracted hose length to your preference. The 1/4" quick coupling outlet and 1/4" BSPT male inlet provide easy connection to standard air tools and compressors. With a maximum working pressure of 15 bar (217 PSI), it handles demanding tasks with ease.

Suitable for

• Compressed air supply for pneumatic tools
• Tire inflation and air blow guns
• Workshop and garage air systems
• Industrial maintenance and assembly lines

Key specifications

• Hose Length: 15 m
• Connection Hose Length: 1.5 m
• Hose Inner Diameter: 9.5 mm (3/8")
• Hose Outer Diameter: 15 mm
• Max Working Pressure: 15 bar (217 PSI)
• Burst Pressure: 45 bar (652 PSI)
• Air Inlet: 1/4" BSPT Male
• Air Outlet: 1/4" Quick Coupling
• Reel Type: Automatic Rewind
• Locking Mechanism: Multi-position ratchet lock
• Housing Material: Robust Polypropylene (PP)
• Mounting: Swiveling Wall/Ceiling Bracket (180°)
• Operating Temperature: -5°C to +45°C

Recommendations

For optimal performance, mount the reel securely to a wall or ceiling using the included bracket. Ensure the air supply is within the rated pressure range. Regularly check the hose for wear and tear.
