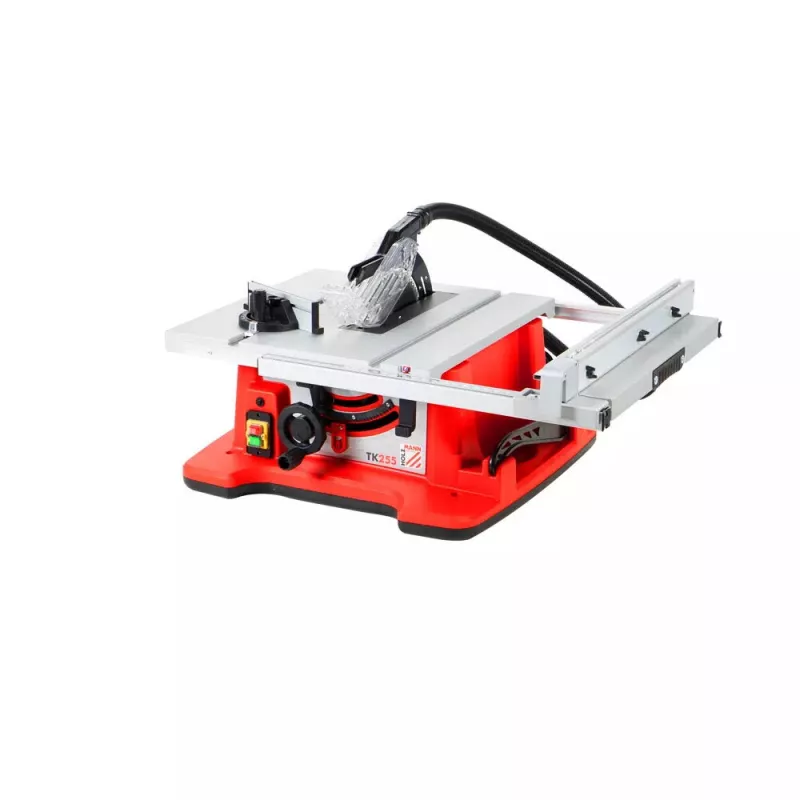

Stolová píla Holzmann TK255_230V

The Holzmann TK255_230V table saw is a compact tabletop machine with a 2200 W motor and an idle speed of 4800 rpm. It delivers cutting heights of 80 mm at 90° and 50 mm at 45°, accepts blades with a diameter of 254 mm and a blade thickness of 2.8 mm, and includes a Ø40 mm dust extraction port for connection to a vacuum or dust collector. The saw’s large aluminum table (940 x 642 mm) provides stable support for workpieces and improves cut accuracy.

Advantages

The powerful motor is suitable for demanding applications while maintaining a consistent 4800 rpm no-load speed. The generously sized aluminum table increases material support and control during cuts. A 40 mm suction connection allows efficient dust extraction to keep the workplace cleaner and improve visibility of the cutting line.

Suitable for

• Crosscutting and ripping of soft and hardwoods
• Workshop tasks for professional carpenters and joiners
• Hobby woodworking and DIY projects

Key specifications

• Motor power: 2200 W
• No-load speed: 4800 rpm
• Maximum cutting height: 80 mm at 90° / 50 mm at 45°
• Blade diameter: 254 mm
• Blade bore diameter: 30 mm
• Blade thickness: 2.8 mm
• Aluminum table size: 940 x 642 mm
• Dust extraction port: Ø40 mm

How to use

Place the table saw on a stable, level surface and secure it according to the workshop setup. Fit a blade that matches the specified diameter and bore, tighten the blade flange, and set the desired cutting height and angle using the height and tilt adjustments. Before each use, check blade condition, guards, and riving knife alignment. Start the machine, allow it to reach full speed, and feed the workpiece steadily using push sticks or push blocks for narrow cuts. Use the rip fence and miter gauge for guided, accurate cuts.

Recommendations

Wear appropriate eye and hearing protection and use a dust extraction system connected to the Ø40 mm port to limit dust exposure. Avoid freehand cutting; always use fences or guides and keep hands clear of the blade. Inspect blades regularly and replace them when worn or damaged.
