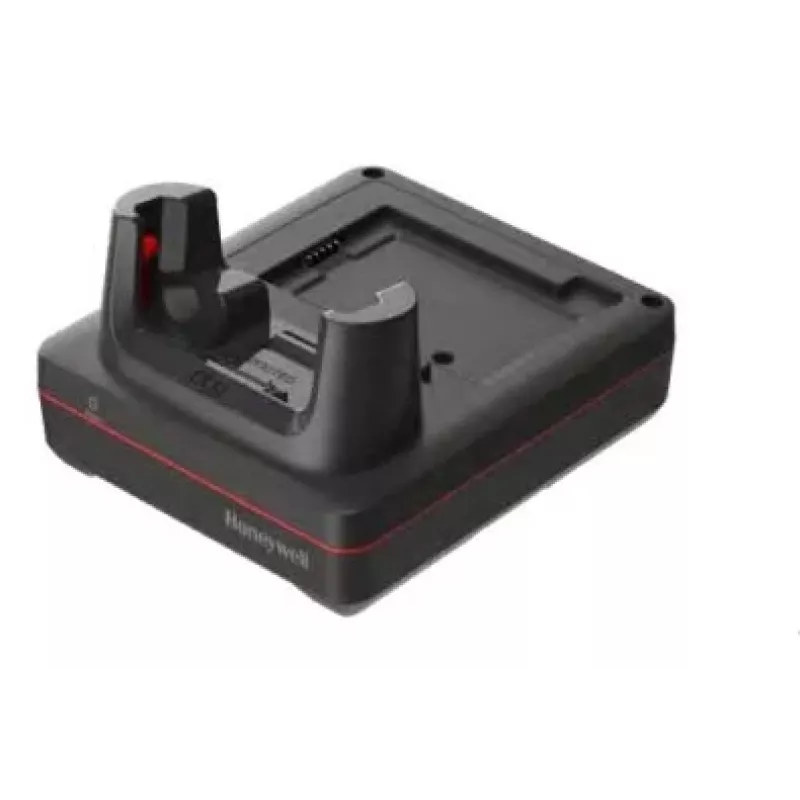

CT32 BOOTED ETHERNET BASE ethernetová základňa pre ethernetovú komunikáciu

Dual-port 10/100 Mbps Ethernet connectivity with integrated switch and Modbus TCP/IP support makes the CT32-EB-UVB-0 a high-performance communication module for industrial drive systems.

Overview

The Honeywell CT32-EB-UVB-0 is a booted Ethernet base module engineered to provide reliable Ethernet communication for compatible drives. It features two RJ45 ports with an integrated switch, enabling daisy-chain topologies that simplify network cabling. Supporting Modbus TCP/IP, Ethernet/IP, HTTP, FTP, SMTP, NTP, and SNTP protocols, this module integrates seamlessly into industrial automation environments. Its auto-negotiating 10/100 Mbps data rate ensures efficient data exchange for monitoring, control, and configuration.

What stands out

• Dual Ethernet ports with integrated switch for daisy-chaining
• Broad protocol support including Modbus TCP/IP and Ethernet/IP
• Integrated web and FTP servers for remote access and file management
• Field-upgradeable firmware for future enhancements
• Powered directly by the host drive—no external supply needed

Technical details

• Module Type: Industrial Communication Module
• Network Interface: Ethernet
• Number of Ports: 2
• Port Type: RJ45
• Data Rate: 10/100 Mbps (auto-negotiating)
• Integrated Switch: Yes
• Protocols: Modbus TCP/IP, Ethernet/IP, HTTP, FTP, SMTP, NTP, SNTP
• IP Addressing: DHCP, BOOTP, Static IP
• Integrated Web Server: Yes
• Integrated FTP Server: Yes
• Email Client: Yes
• NTP Client: Yes
• Mounting Type: Drive option module slot
• LED Indicators: Link/Activity, Status
• Power Supply: Supplied by host drive
• Configuration: Via drive parameters or software tools
• Firmware: Field upgradeable
• Operating Temperature: -10°C to 50°C
• Relative Humidity: 95% non-condensing

Our verdict

A robust Ethernet communication module that brings flexible networking and remote management to compatible drives, ideal for modern industrial automation.
