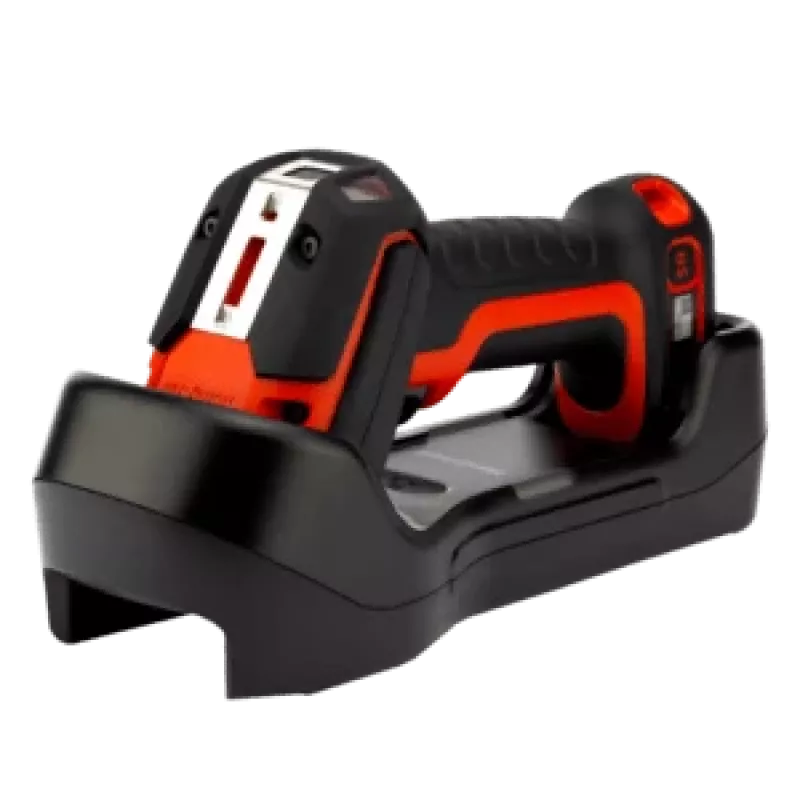

GRANIT ULTRA RS232 KIT BT 1D/2D RUGGED FR VCC RS/2105IXR-3SER-CL

In a busy distribution center, a warehouse associate scans barcodes on incoming pallets from a distance, even when labels are scuffed or poorly printed. The Honeywell Granit Ultra 2105IXR-3SER-CLHE delivers extended range scanning up to 15 m (50 ft) for 1D and 2D codes, with rugged IP67 protection and Bluetooth wireless freedom. This complete kit includes the scanner, communication/charging cradle, RS232 cable, and power supply, ready for immediate deployment.

Key specifications

• Scanning capability: 1D, 2D, Postal, OCR
• Scan technology: Area imager with white LED illumination
• Wireless connectivity: Bluetooth 4.2 Class 1 (up to 100 m / 330 ft) and RS232 via cradle
• Ruggedness: IP67 dust and water resistant, 3 m (10 ft) drop to concrete
• Operating temperature: -30°C to 50°C (-22°F to 122°F)
• Battery: 2450 mAh Li-Ion, up to 14 hours or 50,000 scans per charge
• Motion tolerance: up to 610 cm/s (240 in/s) for 13 mil UPC
• Field of view: horizontal 42°, vertical 33°
• Included components: scanner, cradle, RS232 cable, power supply
• Colour: industrial green and black

Why choose it

The Granit Ultra is built for harsh environments where downtime is not an option. Its extended range lets workers scan from a safe distance, reducing fatigue and improving productivity. The IP67 rating ensures reliable operation in dusty or wet conditions, and the high-capacity battery lasts a full shift. Bluetooth connectivity eliminates cable clutter, while the cradle provides charging and RS232 host communication for seamless integration into existing systems.

Ideal use cases

• Warehouse receiving and put-away for pallet and case scanning
• Logistics and distribution centers with high-volume scanning
• Outdoor operations such as yard management or field service
• Manufacturing lines requiring rugged, long-range data capture

Good to know

The scanner supports all standard 1D, 2D, and postal symbologies, including UPC/EAN, Code 39, QR Code, Data Matrix, and PDF417. It can also interface via USB or keyboard wedge through the cradle, offering flexibility beyond RS232. The kit includes everything needed to start scanning right out of the box.
