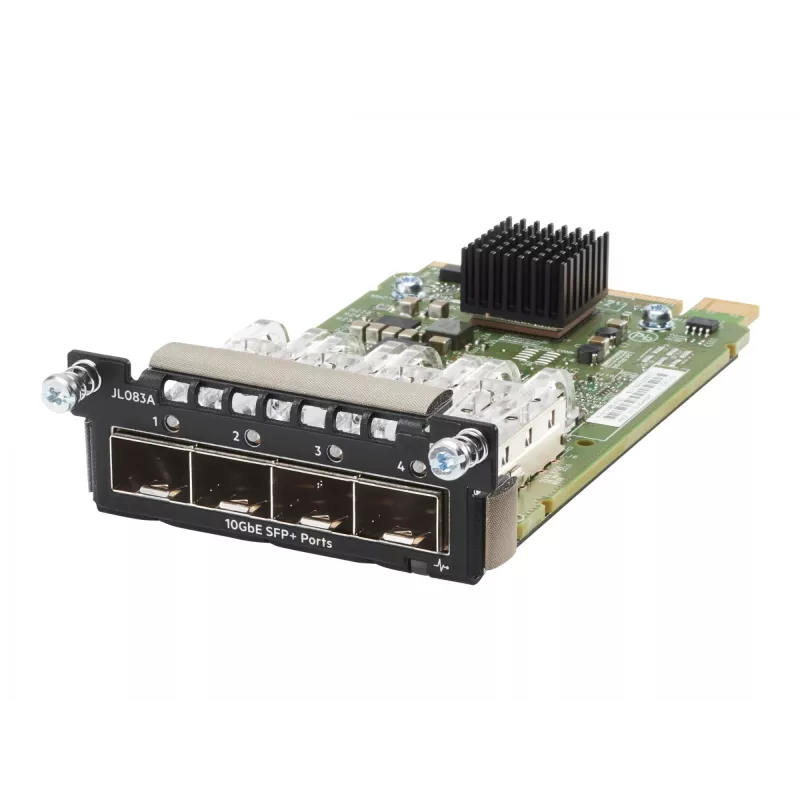

Modul sieťového switchu Aruba 3810M 4SFP+

The Aruba 3810M 4SFP+ module provides four 10GbE SFP+ fiber optic ports designed for use with Aruba 3810M series switches. It supports data transfer rates up to 10 Gbit/s, fits into the designated module slot of the switch, and is intended to increase uplink capacity and connectivity options for network environments that require higher throughput. The module dimensions are 74.2 x 130.8 x 27.7 mm and it weighs 170 g.

Advantages

The module delivers four 10GbE SFP+ ports in a compact form factor compatible with Aruba 3810M switches, enabling higher-speed uplinks and flexible fiber connections. Its standardized SFP+ interfaces allow use with a range of compatible transceivers and fiber types, improving network scalability without requiring a full chassis replacement.

Suitable for

• Expanding uplink capacity on Aruba 3810M switches
• Connecting aggregation or core switches over fiber at 10 Gbit/s
• High-throughput servers and storage connections
• Environments requiring flexible transceiver choice (DAC, SR, LR where supported)

Key specifications

• Model: Network Switch Module Aruba 3810M 4SFP+
• Brand: HP Enterprise
• MPN: JL083A
• Ports: 4 × SFP+ (10GbE)
• Maximum data rate: 10 Gbit/s per port
• Dimensions: 74.2 × 130.8 × 27.7 mm
• Weight: 0.17 kg

How to use

Power down the Aruba 3810M switch or follow the hot‑swap procedure recommended in the switch documentation. Insert the module into the appropriate expansion slot until it seats firmly and secure any retention screws or latches. Install compatible SFP+ transceivers or direct-attach cables into the module ports, then configure the switch interfaces through the Aruba management console or CLI to bring links into service.

Recommendations

Verify compatibility with the specific Aruba 3810M switch firmware and supported transceivers prior to deployment. Use manufacturer-recommended modules and certified transceivers to ensure link reliability and performance.
