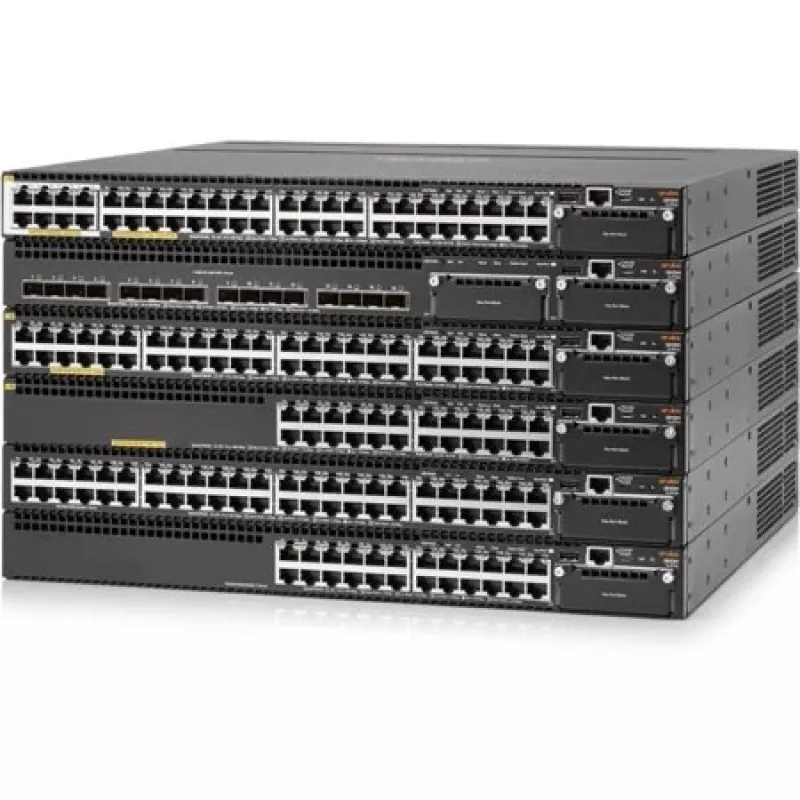

HPE Aruba 3810M 48G PoE+ 4SFP+ 680W spravovaný Layer 3 switch

The HPE Aruba 3810M 48G PoE+ 4SFP+ 680W Switch is a high-performance managed Layer 3 switch designed for enterprise networks. It offers 48 Gigabit Ethernet PoE+ ports and 4 SFP+ uplink ports, providing robust connectivity and power for devices such as IP phones, wireless access points, and surveillance cameras. With a PoE budget of 680W, it supports demanding power requirements. The switch delivers a switching capacity of 176 Gbps and a forwarding rate of 131 Mpps, ensuring smooth data flow. It supports advanced routing protocols including OSPF, BGP, and RIP, and features Virtual Switching Framework (VSF) for stacking multiple switches. Security is enhanced with ACLs, port security, DAI, and DHCP snooping. Management is flexible via CLI, web GUI, SNMP, and more. This 1U rack-mountable switch is ideal for medium to large businesses requiring reliable and scalable network infrastructure.

Advantages

High PoE+ budget of 680W powers multiple devices simultaneously. Advanced Layer 3 routing capabilities enable efficient traffic management. VSF stacking simplifies network expansion and management. Comprehensive security features protect against unauthorized access. Energy-efficient design reduces operational costs.

Suitable for

• Enterprise campus networks
• Data centers requiring high-density PoE+
• Organizations deploying VoIP, Wi-Fi, and IoT devices
• Networks needing advanced routing and stacking

Key specifications

• 48 x 10/100/1000Base-T PoE+ ports
• 4 x 10 Gigabit SFP+ uplink ports
• Switching capacity: 176 Gbps
• Forwarding rate: 131 Mpps
• MAC address table: 64,000 entries
• PoE power budget: 680 W
• Routing protocols: OSPF, BGP, RIP, static IPv4/IPv6, PIM-SM/DM, VRRP
• Management: CLI, Web GUI, SNMP, RMON, Telnet, SSH, HTTPS
• VLAN support: up to 4094 VLANs
• Stacking: Virtual Switching Framework (VSF)
• QoS support: Yes
• Security: ACLs, Port Security, DAI, DHCP Snooping
• RAM: 6 GB, Flash: 1 GB
• Power supply: Internal AC 120/230 V (50/60 Hz)
• Form factor: Rack-mountable 1U

Recommendations

For optimal performance, use with Aruba access points and controllers. Ensure adequate ventilation in the rack. Consider using SFP+ modules for high-speed uplinks. Regularly update firmware for security and feature enhancements.
